CX8008 / CX8084 / CX8016 8 Channels DSP Audio Processor with ANC & AEC
- Professional 8-in / 8-out DSP audio processor
- 8 balanced analog inputs and 8 balanced analog outputs
- Supports selectable Line / Mic input level
- Built-in AFC feedback cancellation
- Built-in AEC echo cancellation for video conferencing
- Built-in ANC noise cancellation for meeting rooms
- Built-in AGC automatic gain control
- Supports auto mix, matrix mix, PEQ, delay, compressor, and limiter
- Supports USB, TCP/IP, RS232, RS485, GPIO control, and optional Dante audio
Product Description
Specifications
Product Description

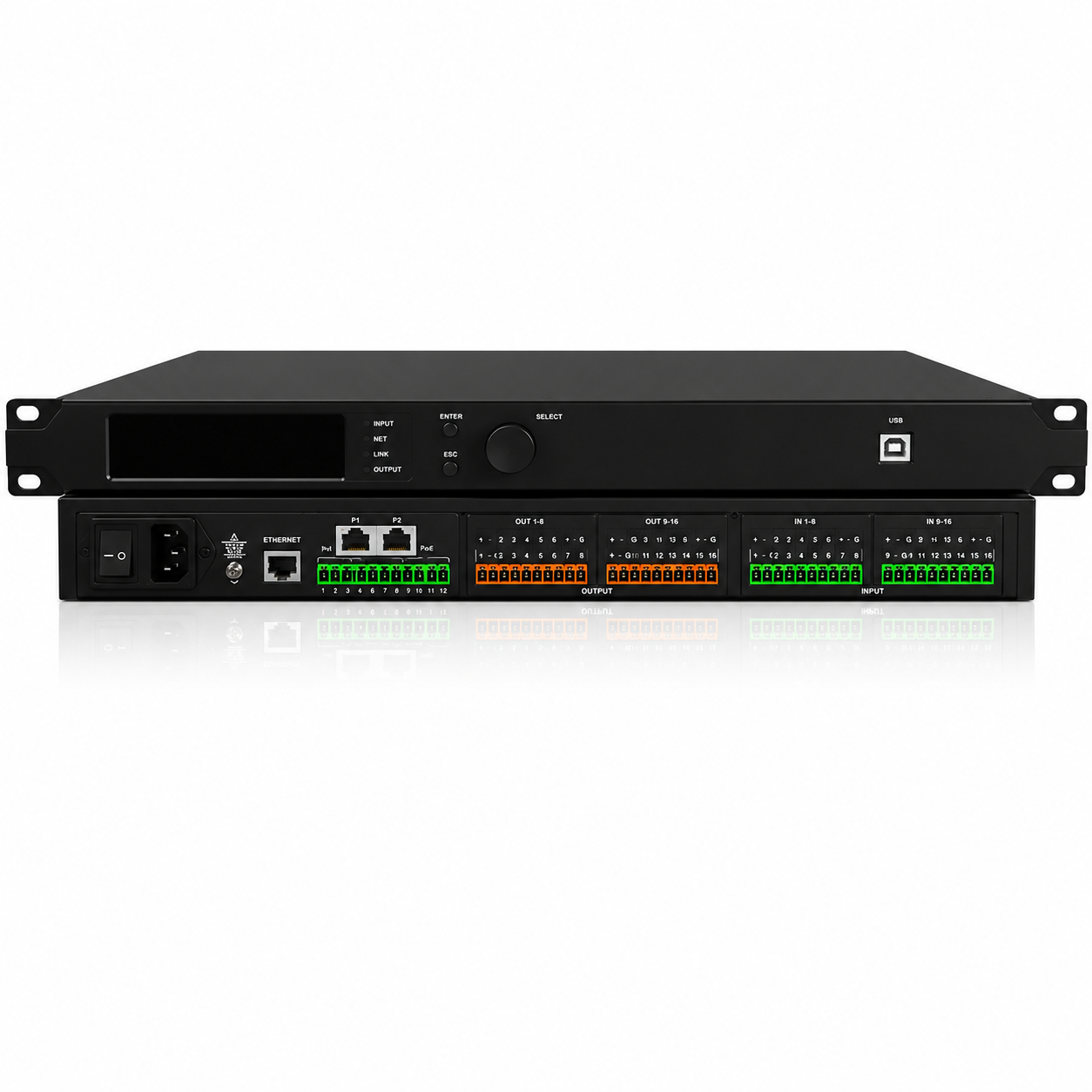

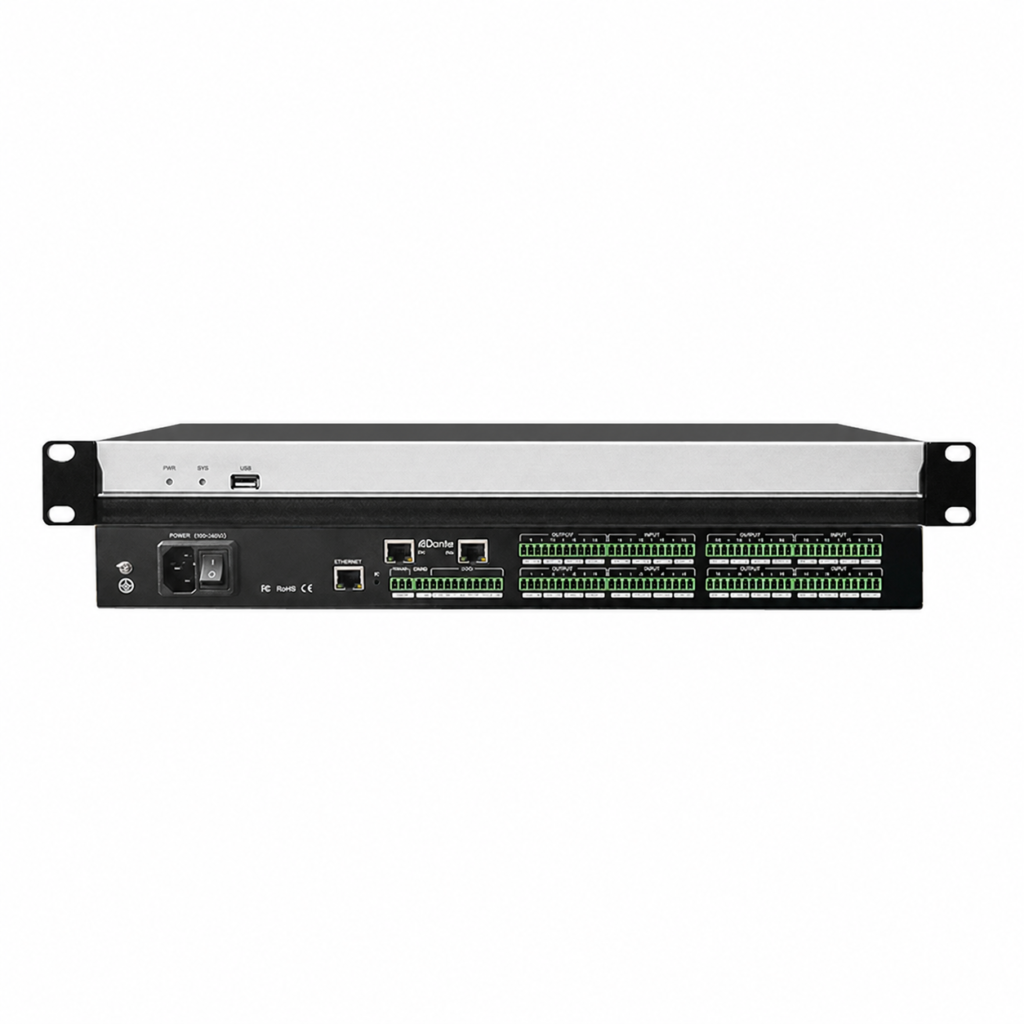

The CX8008 / CX8084 / CX8016 is a professional 8-channel DSP audio processor designed for conference systems, professional sound reinforcement, meeting rooms, auditoriums, and multifunction halls. It provides 8 balanced analog inputs and 8 balanced analog outputs, with selectable Line / Mic input levels for flexible system integration.
Built with a 32-bit floating-point DSP processor, 24-bit / 48kHz AD/DA conversion, and advanced voice algorithms, this processor supports AFC feedback cancellation, AEC echo cancellation, ANC noise cancellation, AGC automatic gain control, auto mixing, matrix mixing, PEQ, delay, compressor, limiter, and camera tracking. Dante network audio is available as an option depending on model
Specifications
| Specification | Details |
|---|---|
| Model | CX8008 / CX8084 / CX8016 |
| Type | 8 Channels DSP Audio Processor |
| Input / Output | 8 Balanced Inputs / 8 Balanced Outputs |
| DSP Processor | 32-bit Floating Point DSP, 400MHz |
| AD/DA Conversion | 24-bit / 48kHz |
| System Delay | ＜3ms |
| Phantom Power | +48V DC per Input Channel |
| Power Supply | AC90V–264V, 50/60Hz |
