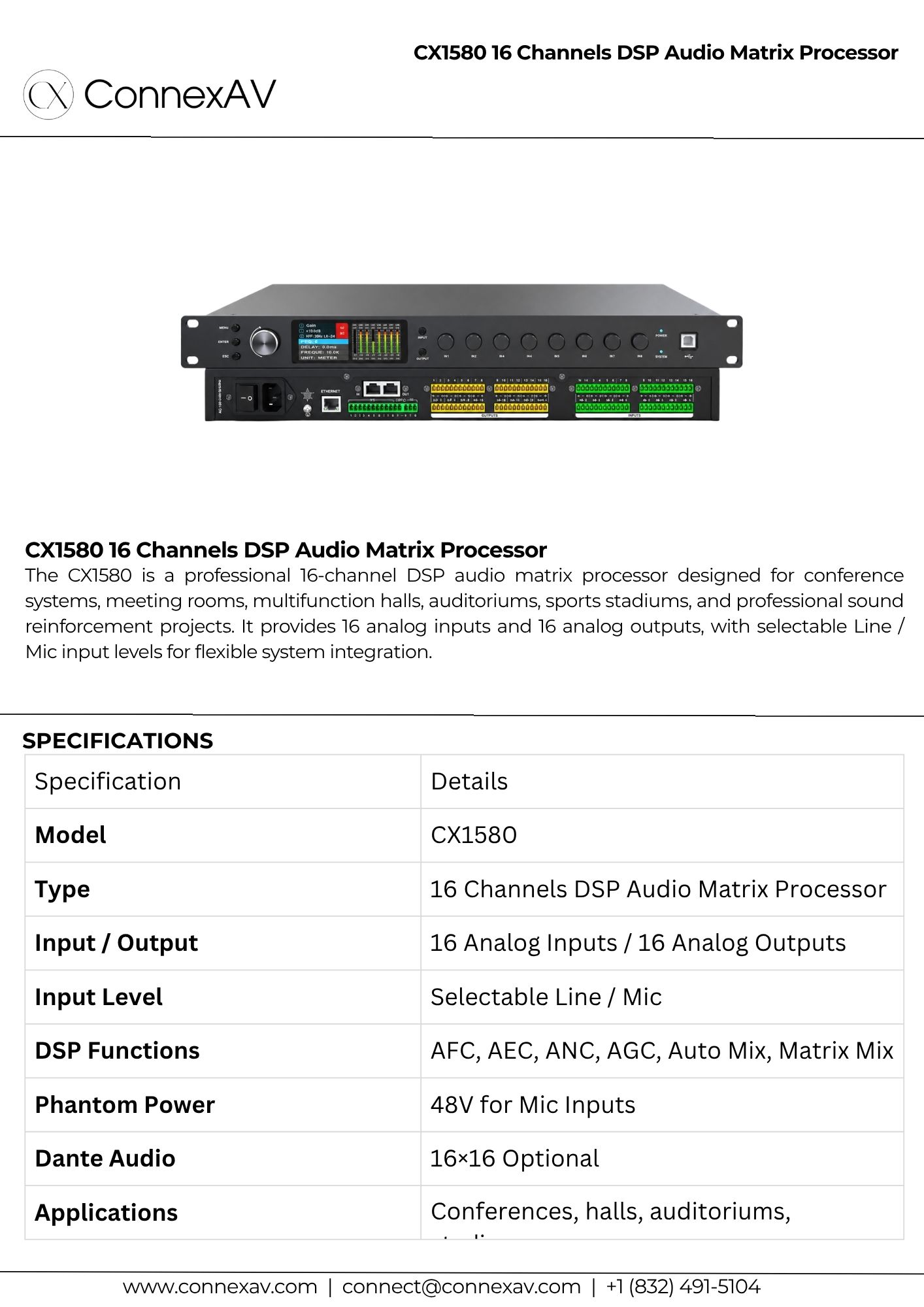

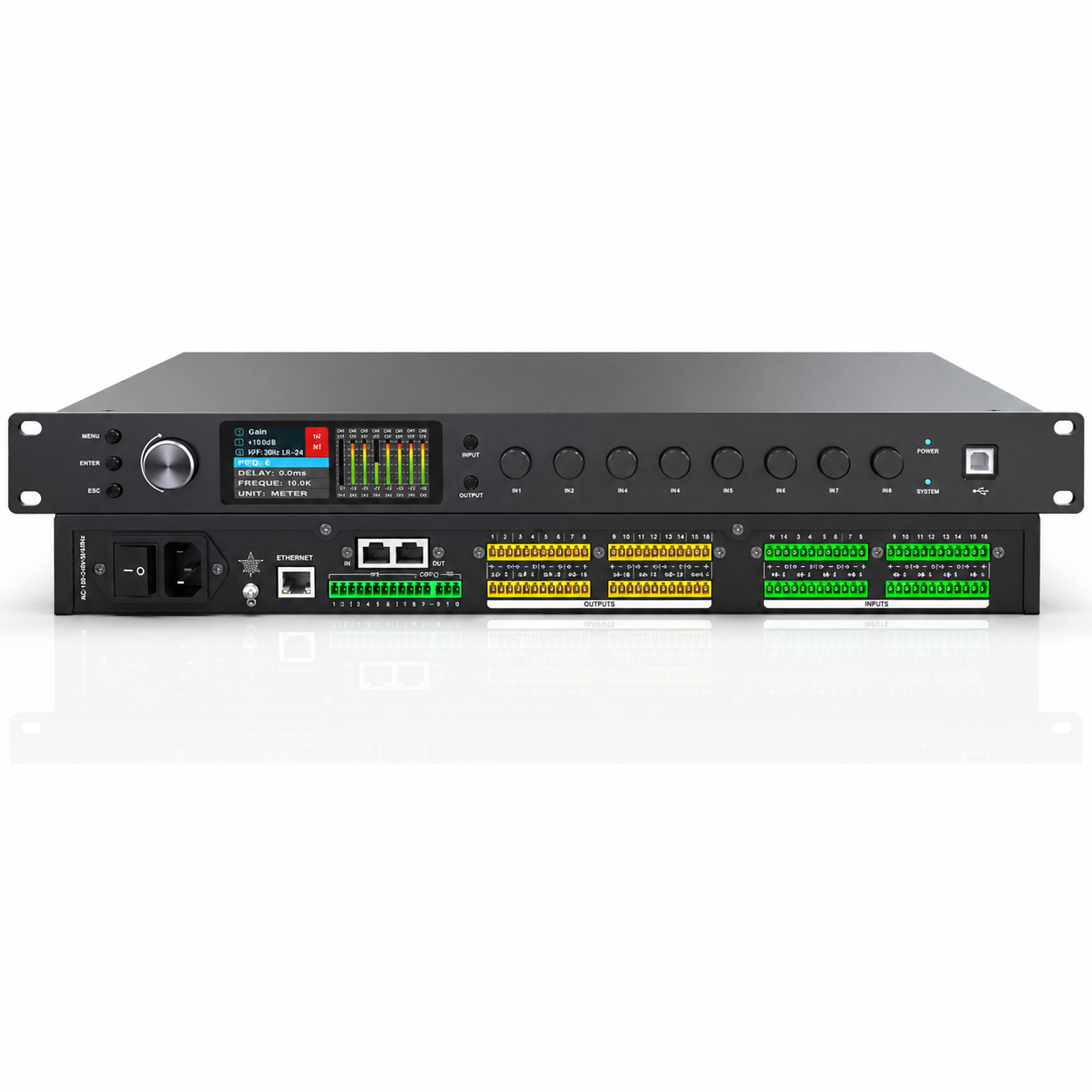

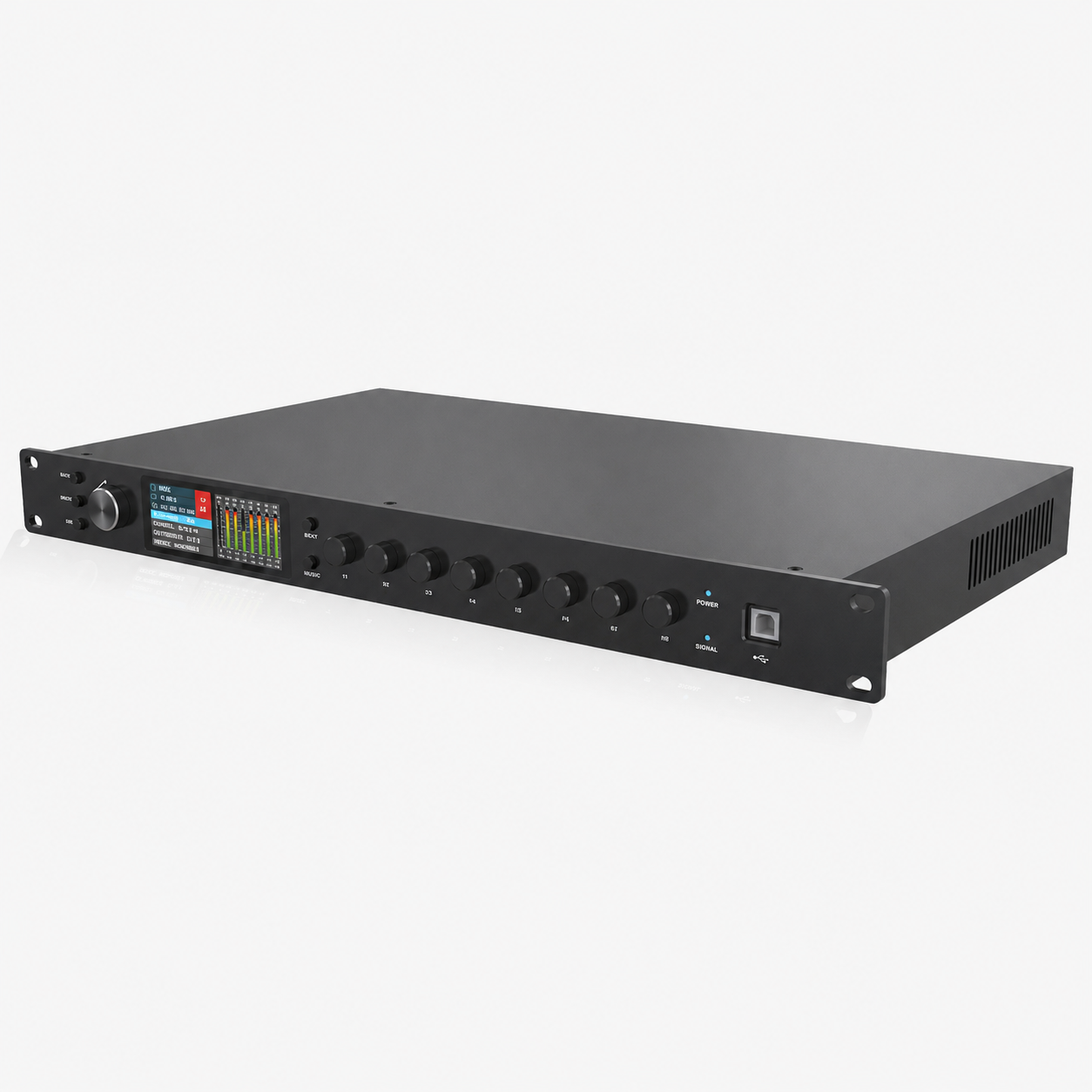

CX1580 16 Channels DSP Audio Matrix Processor
- Professional 16-in / 16-out DSP audio matrix processor
- 16 analog inputs and 16 analog outputs
- Supports selectable Line / Mic input level
- Optional 16×16 Dante network audio support
- Supports 48V phantom power for microphone inputs
- Built-in AFC feedback cancellation
- Built-in AEC echo cancellation for video conferencing
- Built-in ANC noise cancellation for local meeting systems
- Includes auto mix, matrix mixer, PEQ, delay, compressor, and limiter
Product Description
Specifications
Product Description
The CX1580 is a professional 16-channel DSP audio matrix processor designed for advanced audio routing, signal management, and system optimization in professional AV and sound reinforcement installations. It provides flexible digital processing and matrix routing capabilities, allowing multiple audio sources to be managed and distributed to different output channels according to the requirements of the installation.
The CX1580 is suitable for systems where several microphones, music sources, conference systems, amplifiers, and loudspeaker zones need to be connected and controlled from a centralized processor. Its matrix architecture allows audio signals to be routed and mixed between different channels, providing installers with greater flexibility when designing complex audio systems.
The processor provides a comprehensive range of DSP functions for optimizing connected audio equipment. These can include equalization, gain control, filtering, crossover, compression, limiting, delay, mixing, and signal routing, allowing the system to be tuned according to the acoustic characteristics of the venue and the requirements of each audio zone.
The CX1580 is designed for professional installations and can be integrated with mixers, microphones, power amplifiers, loudspeakers, conference systems, and other AV equipment. Its centralized processing architecture helps simplify system management while providing precise control over individual audio channels
Specifications
| Specification | Details |
|---|---|
| Model | CX1580 |
| Type | 16 Channels DSP Audio Matrix Processor |
| Input / Output | 16 Analog Inputs / 16 Analog Outputs |
| Input Level | Selectable Line / Mic |
| DSP Functions | AFC, AEC, ANC, AGC, Auto Mix, Matrix Mix |
| Phantom Power | 48V for Mic Inputs |
| Dante Audio | 16×16 Optional |
| Applications | Conferences, halls, auditoriums, stadiums |
