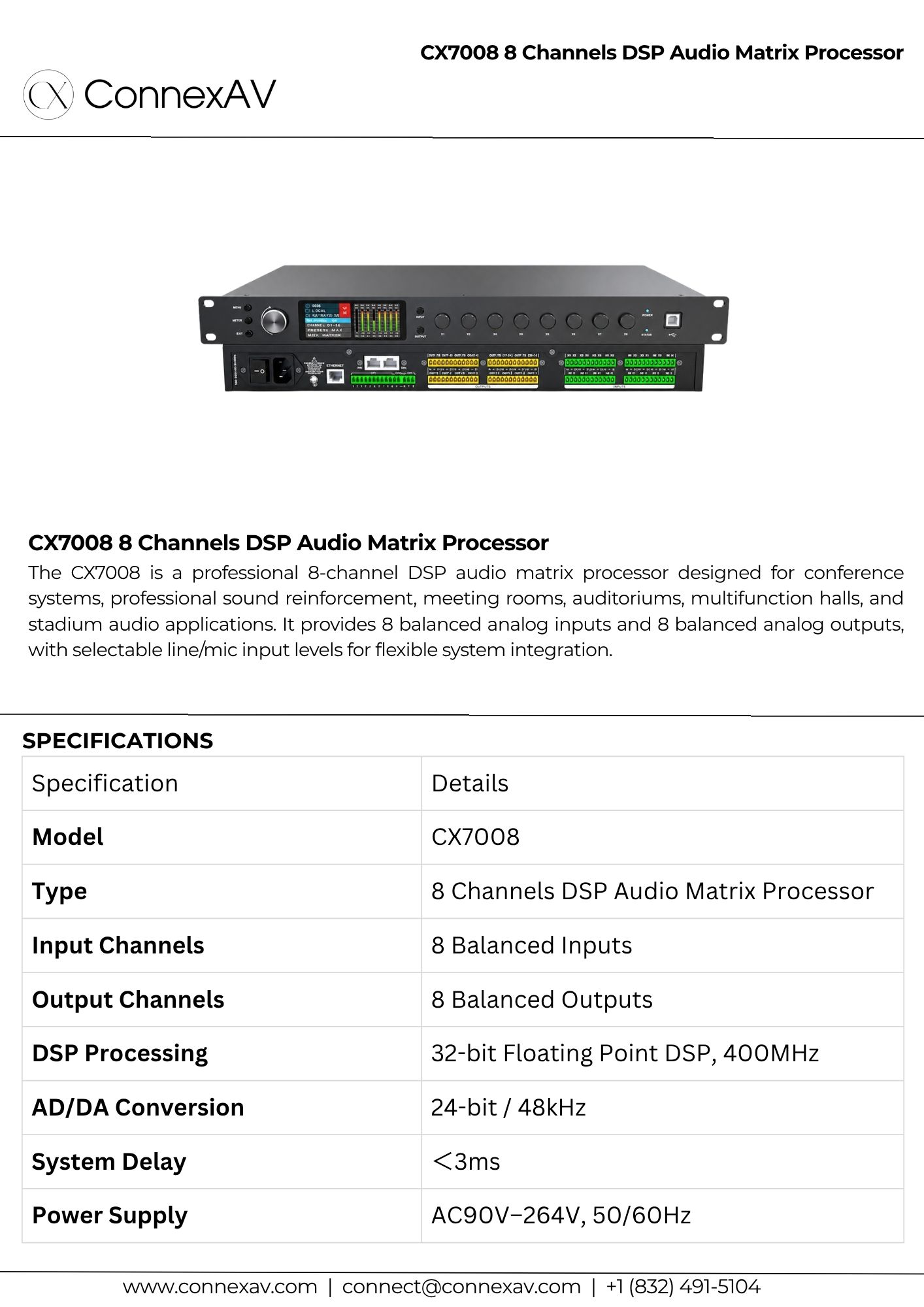

CX7008 8 Channels DSP Audio Matrix Processor
- Professional 8-in / 8-out DSP audio matrix processor
- 8 balanced analog inputs and 8 balanced analog outputs
- Supports selectable Line / Mic input levels
- Built-in 32-bit floating-point DSP processor
- 24-bit / 48kHz AD/DA conversion
- Supports AFC, AEC, ANC, and AGC voice algorithms
- Includes auto mix, matrix mixer, EQ, delay, compressor, and limiter
- Supports +48V phantom power on each input channel
- Optional Dante 16×16 network audio support
The CX7008 is a professional 8-channel DSP audio matrix processor designed for conference systems, professional sound reinforcement, meeting rooms, auditoriums, multifunction halls, and stadium audio applications. It provides 8 balanced analog inputs and 8 balanced analog outputs, with selectable line/mic input levels for flexible system integration.
Built with a 32-bit floating-point DSP processor, 24-bit / 48kHz AD/DA conversion, and advanced audio algorithms, the CX7008 delivers stable and high-quality audio processing. It supports functions such as AFC feedback cancellation, AEC echo cancellation, ANC noise cancellation, AGC automatic gain control, auto mixing, matrix mixing, EQ, delay, compressor, limiter, and optional Dante 16×16 network audio.
| Specification | Details |
|---|---|
| Model | CX7008 |
| Type | 8 Channels DSP Audio Matrix Processor |
| Input Channels | 8 Balanced Inputs |
| Output Channels | 8 Balanced Outputs |
| DSP Processing | 32-bit Floating Point DSP, 400MHz |
| AD/DA Conversion | 24-bit / 48kHz |
| System Delay | ＜3ms |
| Power Supply | AC90V–264V, 50/60Hz |
