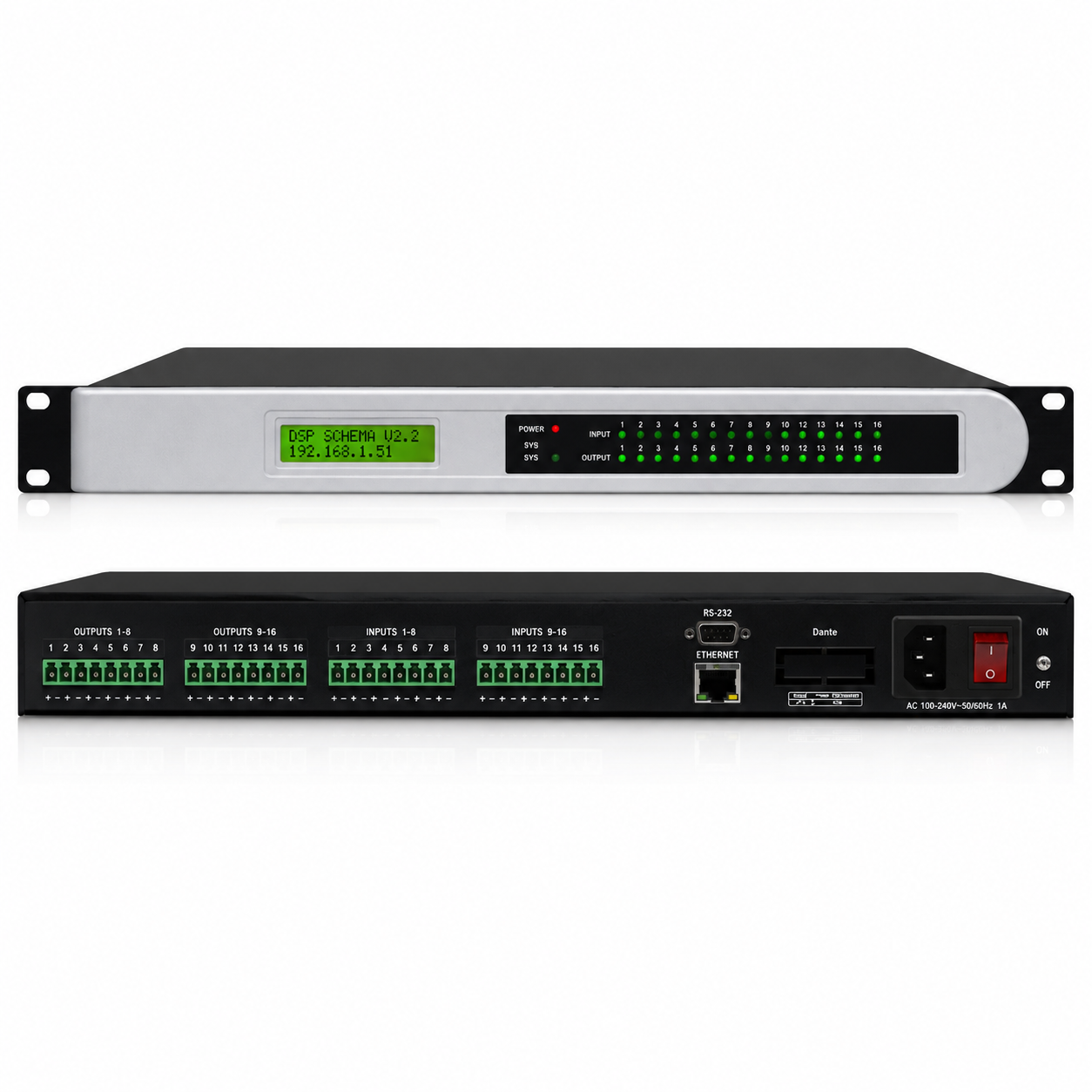

The CX6696 is a professional 16×16 DSP audio processor designed for advanced audio signal processing, routing, mixing, and system optimization in professional AV and sound reinforcement installations. It provides 16 analog inputs and 16 analog outputs, allowing multiple microphones, audio sources, amplifiers, and loudspeaker systems to be connected and managed through a centralized processing platform. The processor uses a 40-bit floating-point DSP running at 400MHz, together with 24-bit/48kHz audio processing, providing accurate and high-quality signal management. Its DSP architecture includes input/output gain control, noise gate, equalization, matrix mixing, crossover, delay, limiter, compressor, AGC, and real-time level monitoring, allowing the system to be precisely tuned for different applications. The CX6696 provides flexible 16×16 matrix mixing, enabling individual input signals to be routed, combined, and distributed across multiple output channels. Output channel delay can be adjusted from 0 to 1500ms, providing useful control for speaker alignment and acoustic optimization in larger or multi-zone installations. The unit supports high-precision input sensitivity adjustment and professional audio levels, with a maximum input and output level of +18dBu. Its 118dB A/D and D/A dynamic range, 111dB SNR, and low THD+N contribute to clean and detailed audio reproduction suitable for professional sound systems.

Specification	Details
Model	CX6696
Type	16×16 DSP Audio Processor
Input / Output	16 Analog Inputs / 16 Analog Outputs
DSP Processor	40-bit Floating Point DSP, 400MHz
Bit Depth / Sampling	24-bit / 48kHz
Transmission Delay	4.1ms
Frequency Response	20Hz–20kHz ±0.3dB
Net Weight	3.3kg
