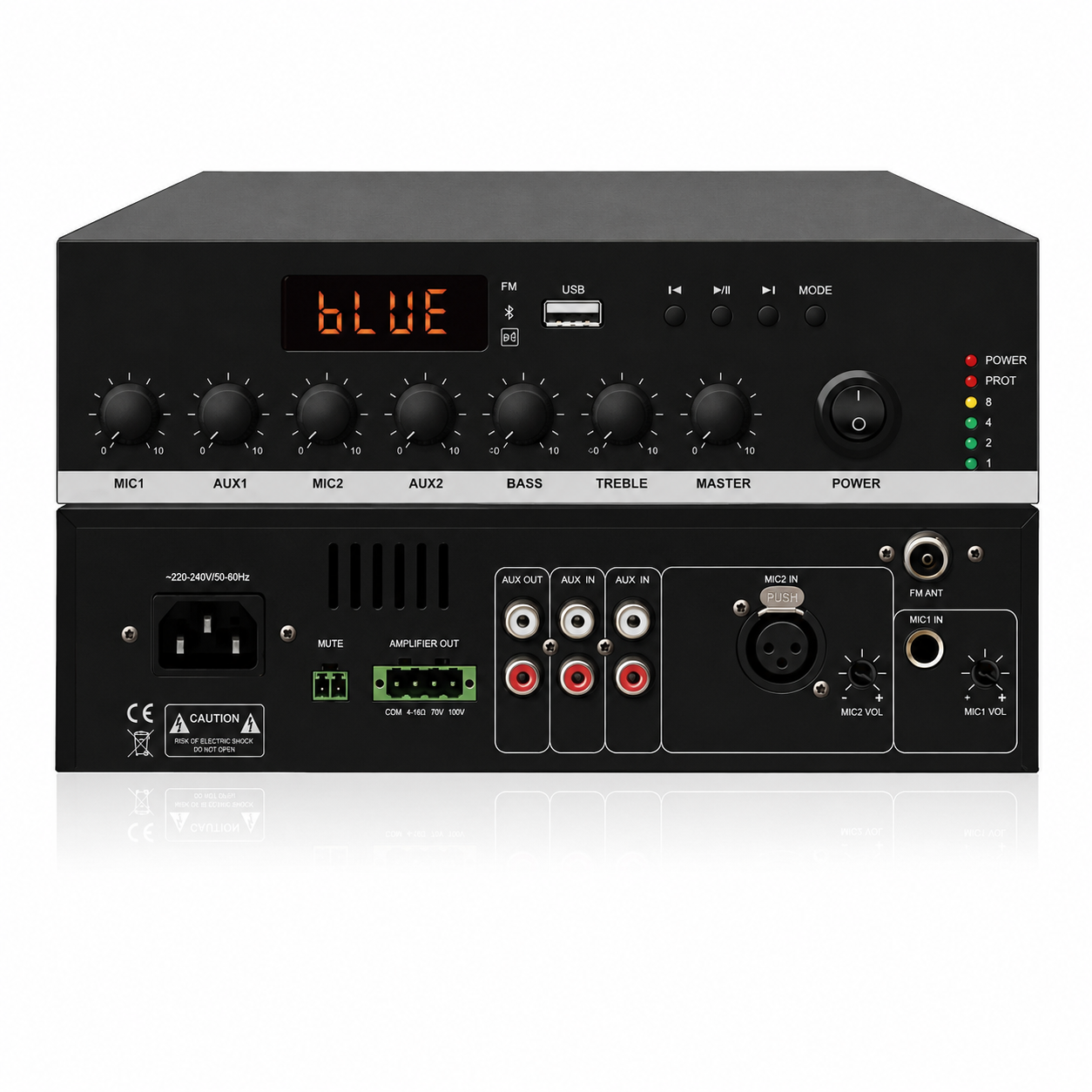

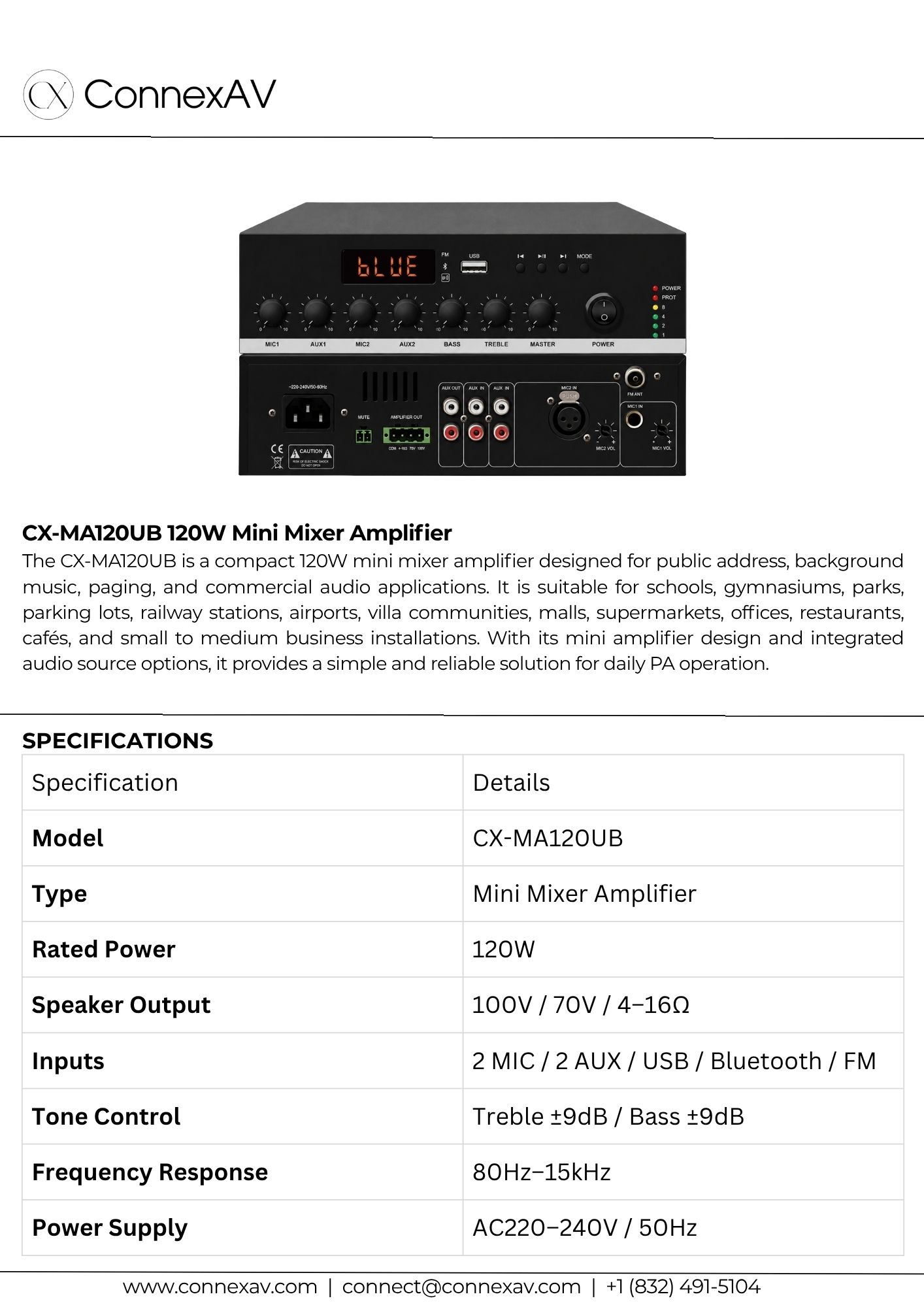

CX-MA120UB 120W Mini Mixer Amplifier
- Professional 120W mini mixer amplifier
- Built-in USB playback function
- Built-in Bluetooth for wireless audio playback
- Built-in FM input for radio source connection
- Supports 2 microphone inputs + 2 AUX inputs
- Supports 100V / 70V / 4–16Ω speaker outputs
- Short-circuit mute control for protection
- Microphone mute function for priority broadcasting
- Ideal for schools, gyms, parks, stations, airports, malls, supermarkets, and commercial PA systems
The CX-MA120UB is a compact 120W mini mixer amplifier designed for public address, background music, paging, and commercial audio applications. It is suitable for schools, gymnasiums, parks, parking lots, railway stations, airports, villa communities, malls, supermarkets, offices, restaurants, cafés, and small to medium business installations. With its mini amplifier design and integrated audio source options, it provides a simple and reliable solution for daily PA operation.
This amplifier includes 2 MIC inputs, 2 AUX inputs, FM input, Bluetooth input, and USB input, making it flexible for microphone paging and background music playback. It supports 100V / 70V constant-voltage output and 4–16Ω constant-resistance output, allowing it to work with both distributed PA speakers and low-impedance speaker systems. With short-circuit mute control, microphone mute function for priority broadcasting, bass and treble adjustment, and 120W rated output, the CX-MA120UB is a practical choice for compact commercial sound systems.
| Specification | Details |
|---|---|
| Model | CX-MA120UB |
| Type | Mini Mixer Amplifier |
| Rated Power | 120W |
| Speaker Output | 100V / 70V / 4–16Ω |
| Inputs | 2 MIC / 2 AUX / USB / Bluetooth / FM |
| Tone Control | Treble ±9dB / Bass ±9dB |
| Frequency Response | 80Hz–15kHz |
| Power Supply | AC220–240V / 50Hz |
