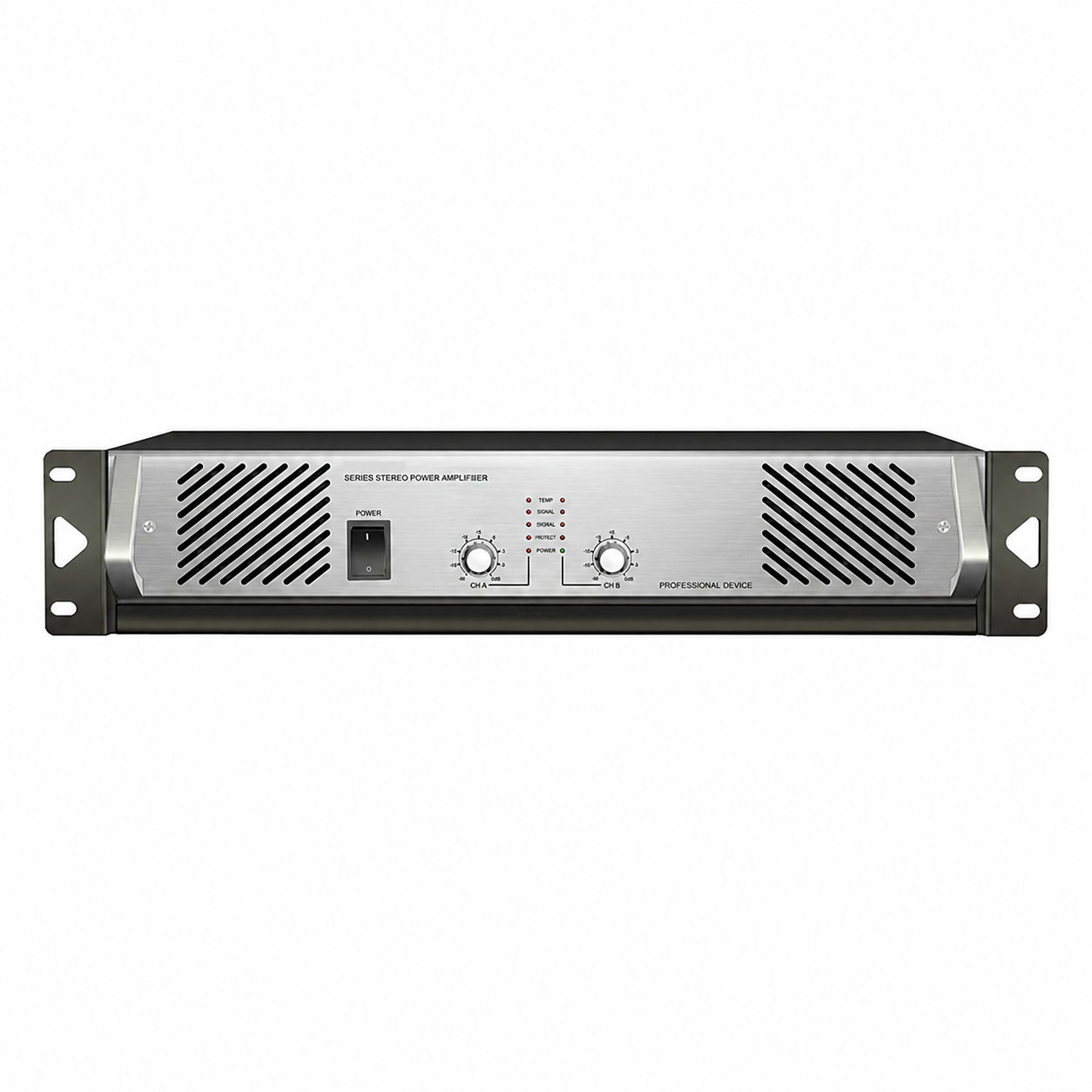

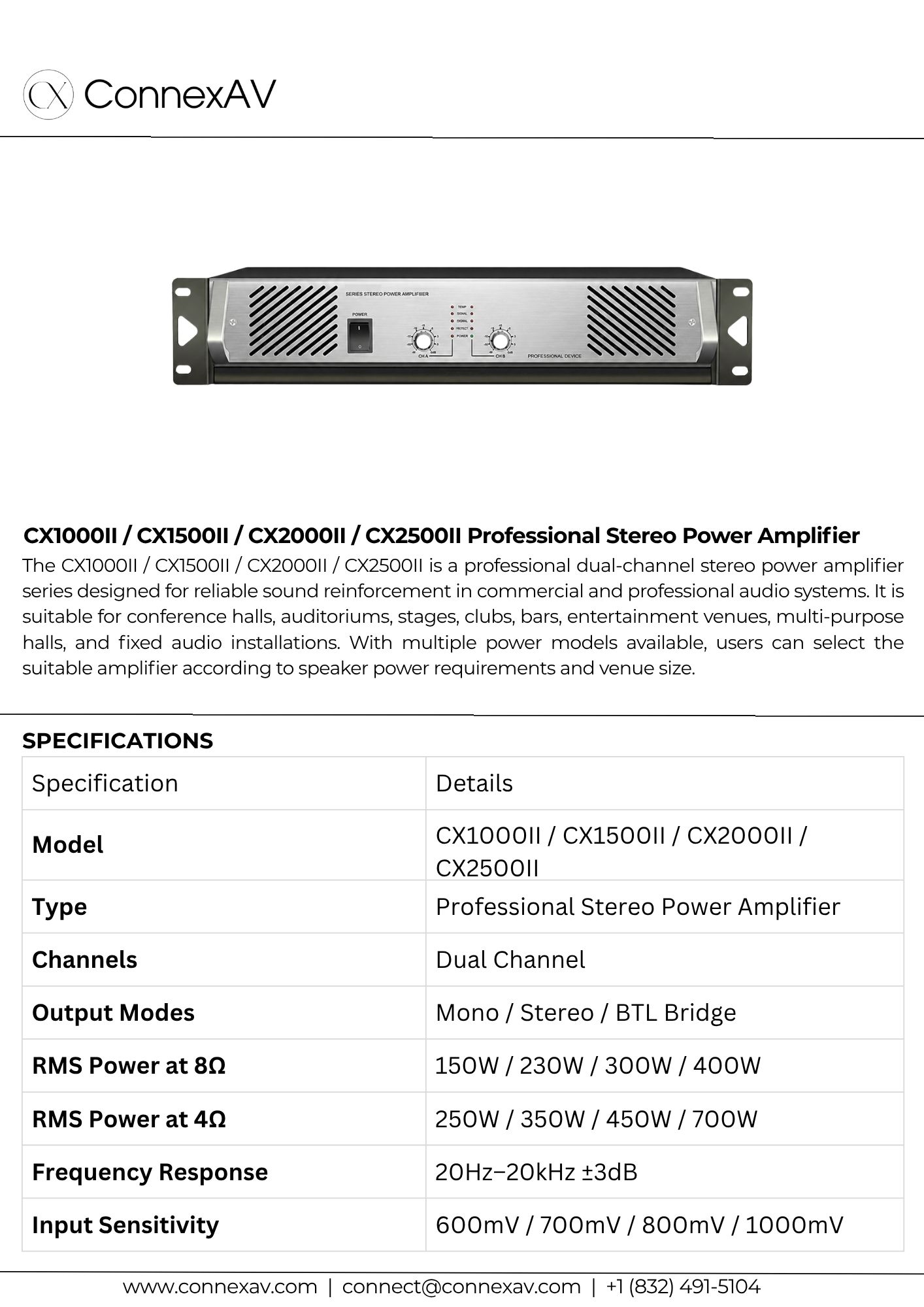

CX1000II / CX1500II / CX2000II / CX2500II Professional Stereo Power Amplifier
- Professional dual-channel stereo power amplifier series
- Available models: CX1000II / CX1500II / CX2000II / CX2500II
- Supports mono, stereo, and BTL bridge output modes
- Each channel has independent volume control

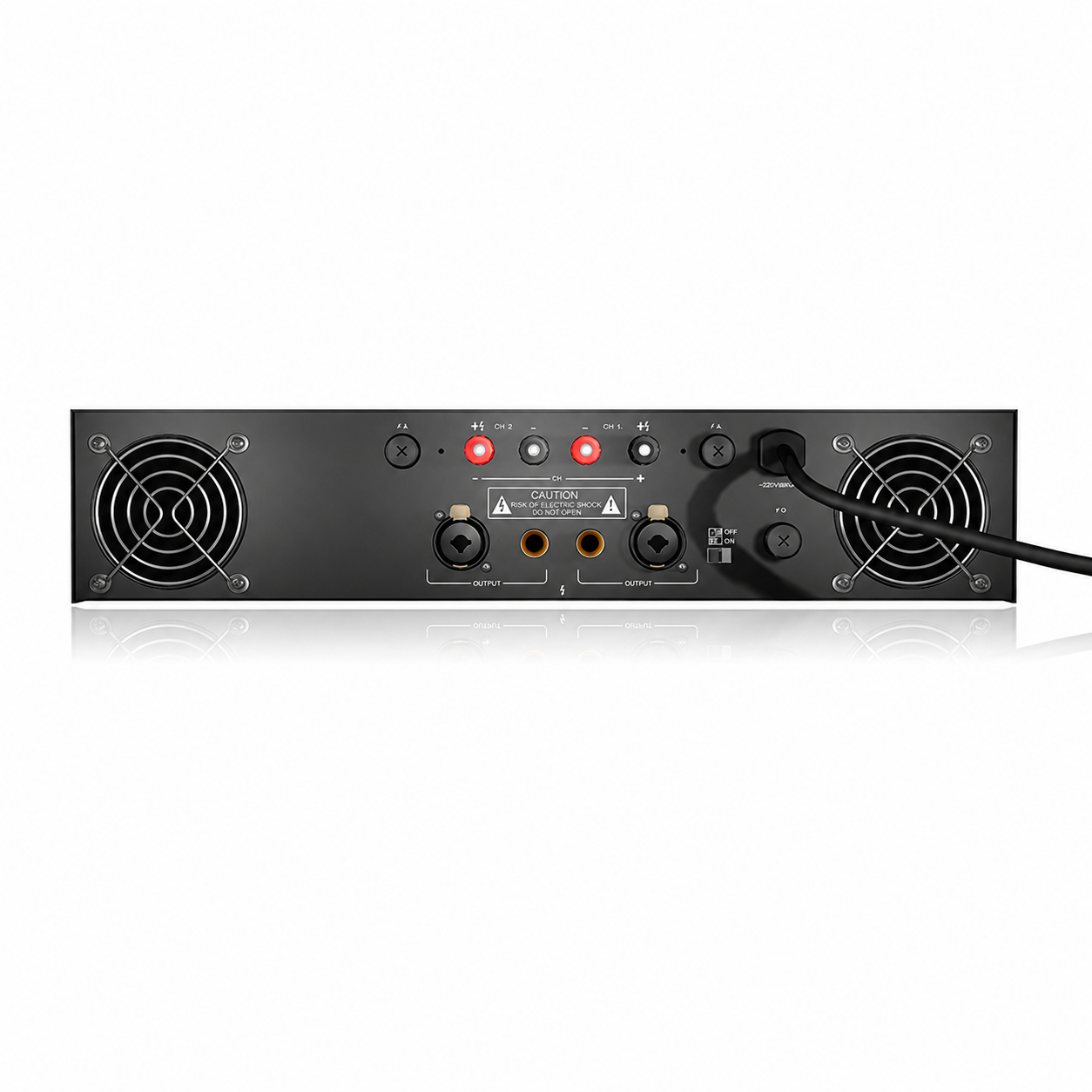

- XLR and 6.35mm phone jack audio input support
- LED indicators for working status monitoring
- Protection against short circuit, DC current, and high temperature
- Power shock protection for audio equipment and power grid safety
- Suitable for halls, stages, clubs, bars, conferences, and installations
The CX1000II / CX1500II / CX2000II / CX2500II is a professional dual-channel stereo power amplifier series designed for reliable sound reinforcement in commercial and professional audio systems. It is suitable for conference halls, auditoriums, stages, clubs, bars, entertainment venues, multi-purpose halls, and fixed audio installations. With multiple power models available, users can select the suitable amplifier according to speaker power requirements and venue size.
This amplifier series supports mono, stereo, and BTL bridge output modes, making it flexible for different system configurations. Each channel has independent volume control and LED indicators for easy operation and monitoring. It also includes XLR and 6.35mm phone jack audio inputs, along with protection against short circuit, DC current, high temperature, and power shock. This makes the CX1000II series a dependable choice for professional speaker driving and long-time operation.
| Specification | Details |
|---|---|
| Model | CX1000II / CX1500II / CX2000II / CX2500II |
| Type | Professional Stereo Power Amplifier |
| Channels | Dual Channel |
| Output Modes | Mono / Stereo / BTL Bridge |
| RMS Power at 8Ω | 150W / 230W / 300W / 400W |
| RMS Power at 4Ω | 250W / 350W / 450W / 700W |
| Frequency Response | 20Hz–20kHz ±3dB |
| Input Sensitivity | 600mV / 700mV / 800mV / 1000mV |
