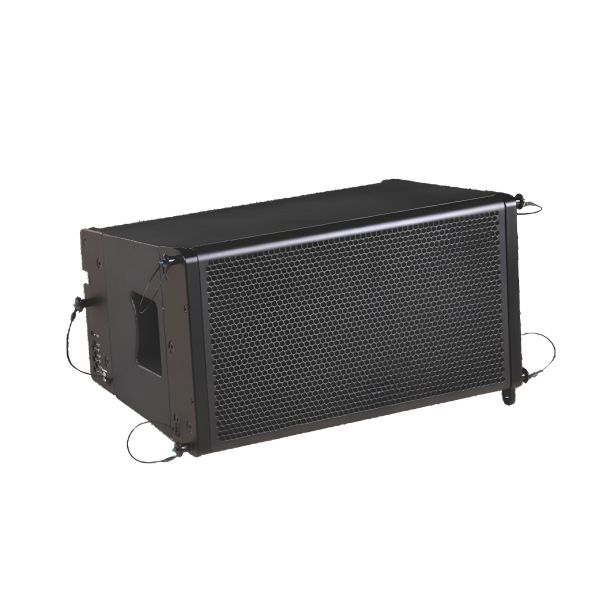

CX1423A Active Line Array Speaker
- Mini active line array system with high power and high SPL
- Built-in 1000W Class-D amplifier
- Driver configuration: 12″ bass × 1 + 2.5″ treble × 2
- Wide frequency response: 58Hz–18kHz
- Clear and robust sound output
- Cabinet made from special plywood for sea vessels
- Metal accessories made from high-quality aluminium alloy
- Powered by a high-peak switching power supply
- Suitable for mobile applications
- Directivity can vary depending on the number of array speakers used
Product Description
Specifications
Product Description
CX1420 is a double 10-inch full-range line array speaker designed for professional sound reinforcement. It uses a high-quality passive array structure, with the treble unit mounted on an HSI horn to create a clean, undistorted sound wave. The speaker delivers clear and detailed sound, strong voice penetration, high sensitivity, and high sound pressure level, making it suitable for large venues, conference halls, banquet spaces, stage sound, and other professional audio applications. The installation angle can be adjusted from 0° to 20° for flexible sound coverage.

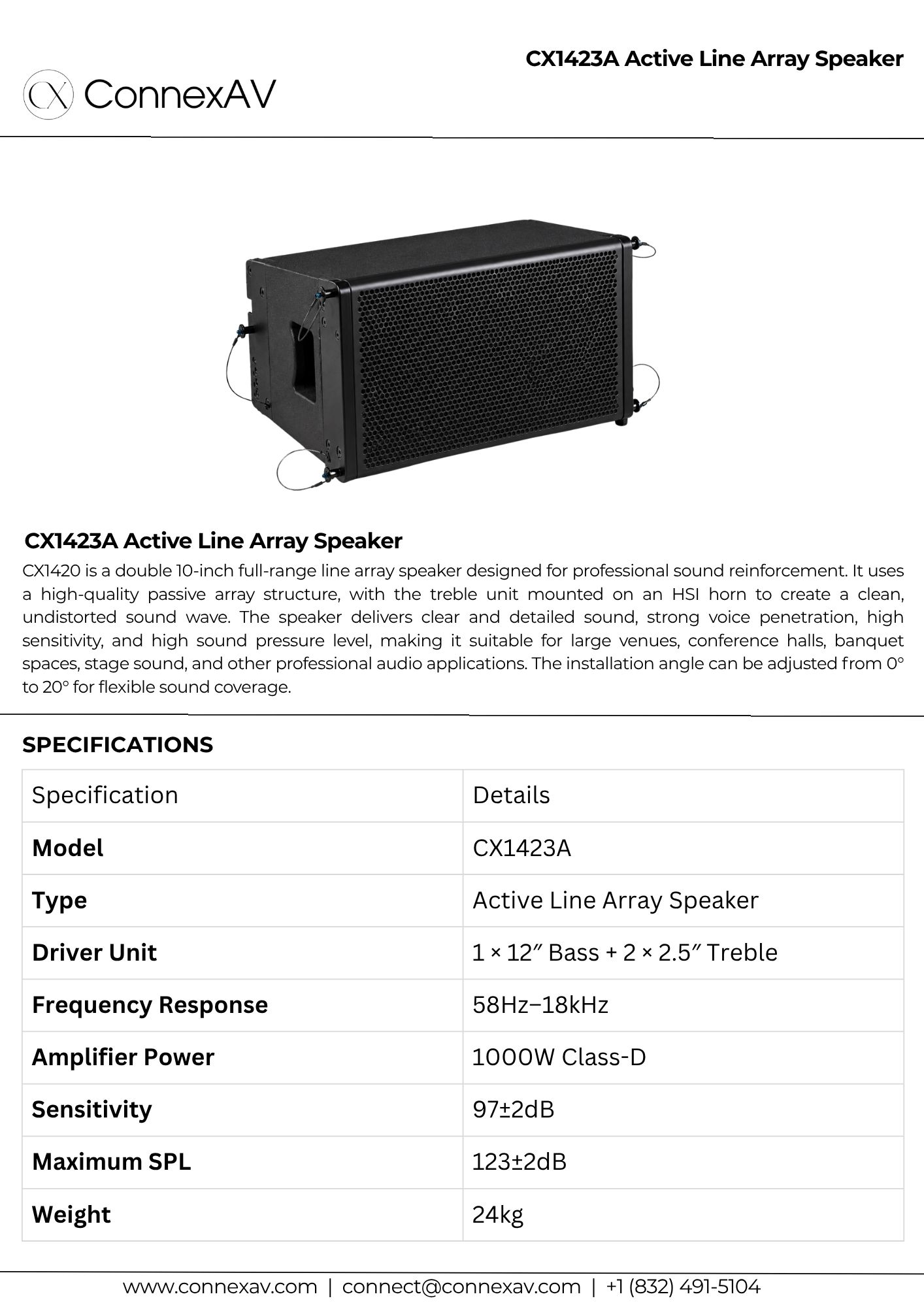

Specifications
| Specification | Details |
|---|---|
| Model | CX1423A |
| Drive Unit | 12″ Bass × 1, 2.5″ Treble × 2 |
| Frequency Response | 58Hz–18,000Hz |
| Speaker Sensitivity | 97±2dB |
| Maximum SPL | 123±2dB |
| Active Signal Input Impedance | 20kΩ |
| Amplifier Power | 1000W |
| Amplifier Input Sensitivity | 0.775V |
| Directivity / Coverage | 120° × 5°–20°, depending on array quantity |
| Amplifier Distortion | ＜0.05% |
| Working Voltage | AC190V–240V / 50Hz |
| Dimensions W × D × H | 582 × 414 × 343mm |
| Weight | 24kg |
