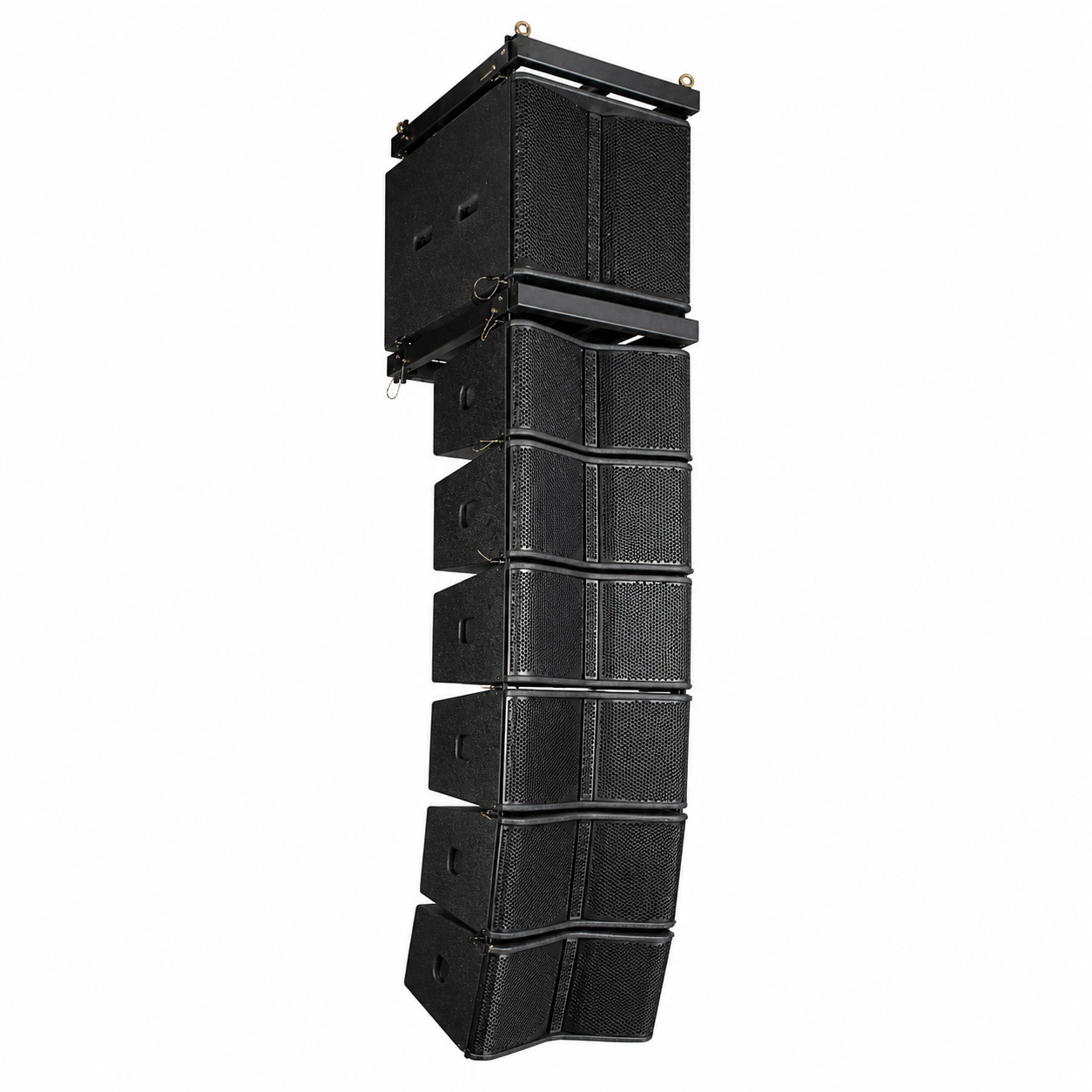

CX1420 Double 10 Array Full Range Speaker
- High-end, high-quality medium and high-frequency passive line array speaker
- Excellent radiation characteristics for wide and consistent sound coverage
- Clear and delicate sound performance
- Strong voice penetration, suitable for speech and music reinforcement
- High sensitivity and high SPL output
- Easy to install
- Adjustable installation angle from 0° to 20°
- Equipped with 2 × 10-inch woofers and 2 × 1.75-inch tweeters
- 650W rated power
- 120° × 10° coverage angle
- 128±2dB maximum SPL
Product Description
Specifications
Product Description

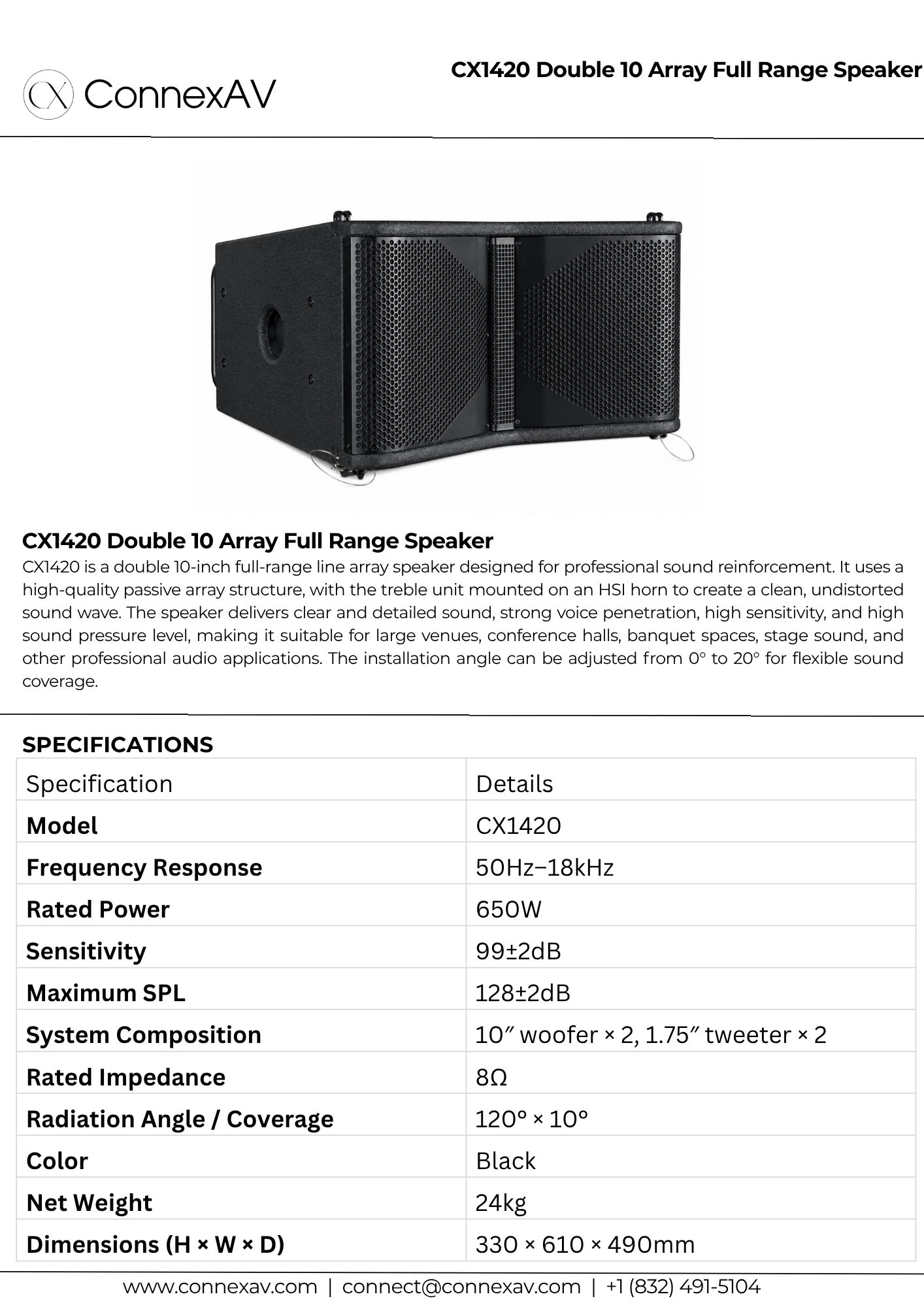

CX1420 is a double 10-inch full-range line array speaker designed for professional sound reinforcement. It uses a high-quality passive array structure, with the treble unit mounted on an HSI horn to create a clean, undistorted sound wave. The speaker delivers clear and detailed sound, strong voice penetration, high sensitivity, and high sound pressure level, making it suitable for large venues, conference halls, banquet spaces, stage sound, and other professional audio applications. The installation angle can be adjusted from 0° to 20° for flexible sound coverage.
Specifications
| Specification | Details |
|---|---|
| Model | CX1420 |
| Frequency Response | 50Hz–18kHz |
| Rated Power | 650W |
| Sensitivity | 99±2dB |
| Maximum SPL | 128±2dB |
| System Composition | 10″ woofer × 2, 1.75″ tweeter × 2 |
| Rated Impedance | 8Ω |
| Radiation Angle / Coverage | 120° × 10° |
| Color | Black |
| Net Weight | 24kg |
| Dimensions (H × W × D) | 330 × 610 × 490mm |
