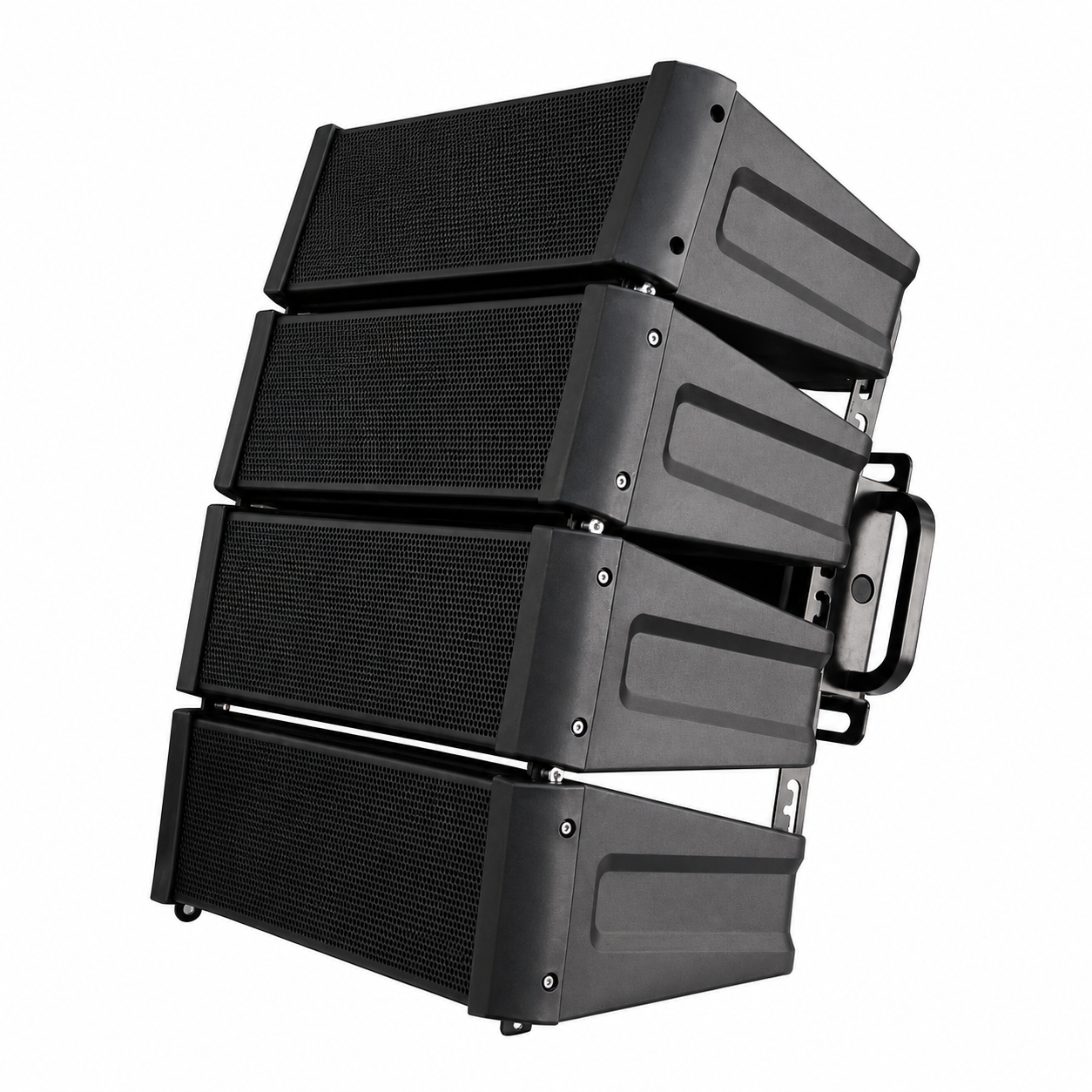

CX1512 (100V) Waterproof Line Array Loudspeaker
- Waterproof line array loudspeaker system
- Designed for indoor and outdoor applications
- 4-unit combination design
- Supports 70V / 100V constant-voltage input
- Rated power of 200W
- High sensitivity and high SPL performance
- Adjustable vertical directivity: 60°, 45°, 30°, 15°
- Supports ceiling, wall-mounted, and stand-mounted installation
- Can connect a subwoofer for stronger low-frequency output
Product Description
Specifications
Product Description
The CX1512 (100V) is a professional waterproof line array loudspeaker system designed for indoor and outdoor sound reinforcement. It is suitable for public venues, parks, stadiums, shopping malls, conference spaces, outdoor stages, transportation areas, and other weather-exposed PA installations.
This 4-unit combination system provides high sensitivity, high SPL, and adjustable vertical coverage for flexible sound projection. It supports 70V / 100V constant-voltage operation, can stack up to 4 units, and allows up to 2 groups to be connected, making it practical for distributed professional audio systems.
Specifications
| Specification | Details |
|---|---|
| Model | CX1512 (100V) |
| Type | Waterproof Line Array Loudspeaker |
| Input Voltage | 100V |
| Rated Power | 200W |
| Frequency Response | 70Hz–20kHz / 75Hz–20kHz / 80Hz–20kHz / 85Hz–20kHz |
| Sensitivity | 96dB–99dB |
| Maximum SPL | 102dB / 128dB Peak |
| Coverage Angle | 100° Horizontal / 15°–60° Vertical |
