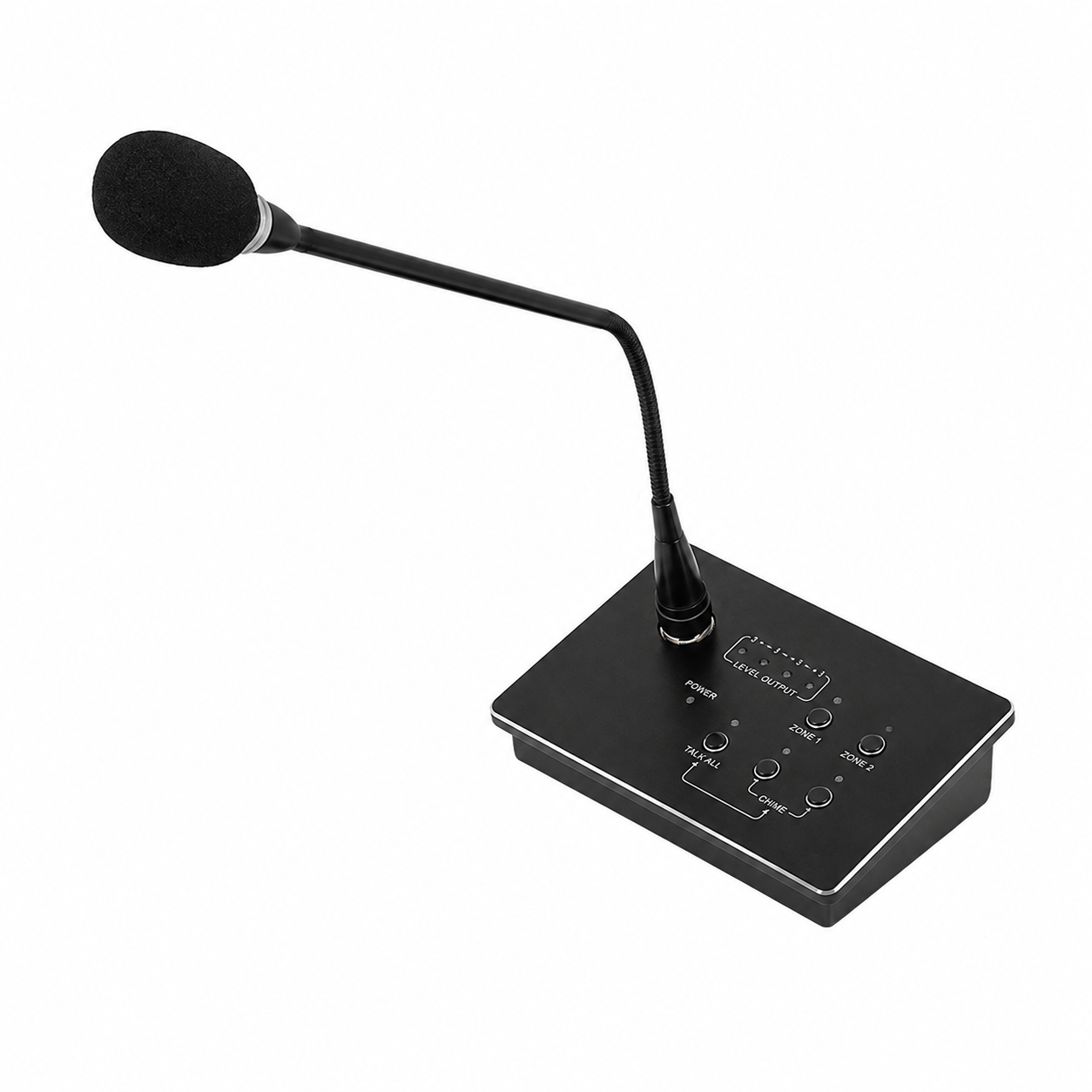

CX-RM20 2 Zones Remote Paging Microphone
- Professional 2-zone remote paging microphone
- Designed for compatible MP600U and MP1000U amplifier systems
- Individual on/off switch for each zone
- Signal level indication for clear sound monitoring
- Built-in 2 chime tones: ascending and descending
- Microphone volume adjustment function

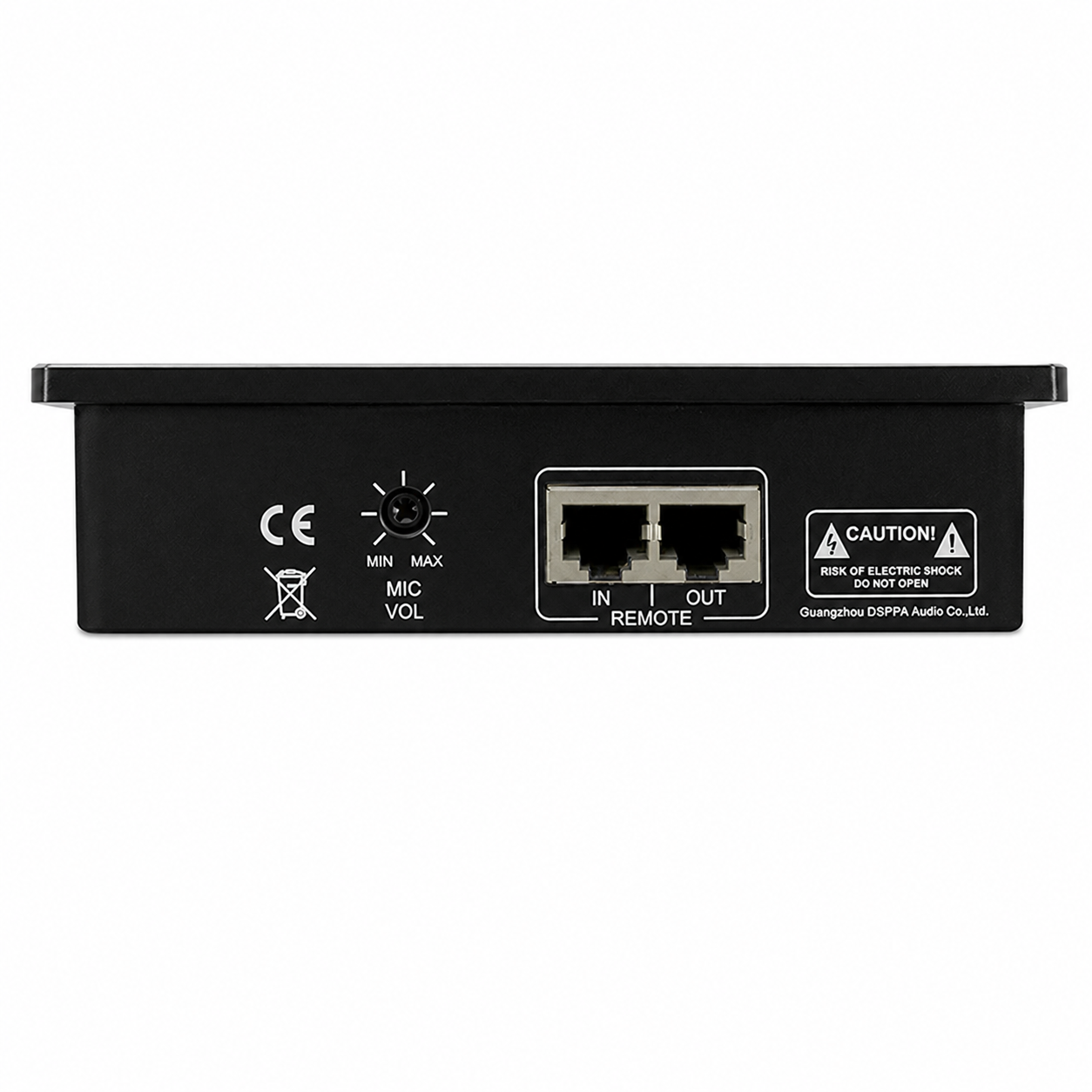

- RJ45 interface with 485 communication protocol
- Powered by the host amplifier, no separate adapter required
- Supports remote paging connection distance up to 500m
The CX-RM20 is a professional 2-zone remote paging microphone designed for use with compatible 2-zone integrated mixer amplifiers such as MP600U and MP1000U systems. It is suitable for schools, offices, hotels, shopping malls, supermarkets, restaurants, halls, factories, villas, and commercial PA installations. With two-zone control, it allows users to make paging announcements to selected areas directly from a remote location.
This remote paging microphone includes individual zone on/off switches, signal level indication, microphone volume adjustment, and 2 chime tones for paging notification. It connects through an RJ45 interface using 485 communication protocol and is powered by the host amplifier, so no separate power adapter is required. With connection distance up to 500m, compact desktop design, and stable paging operation, the CX-RM20 is a practical accessory for 2-zone PA paging systems.

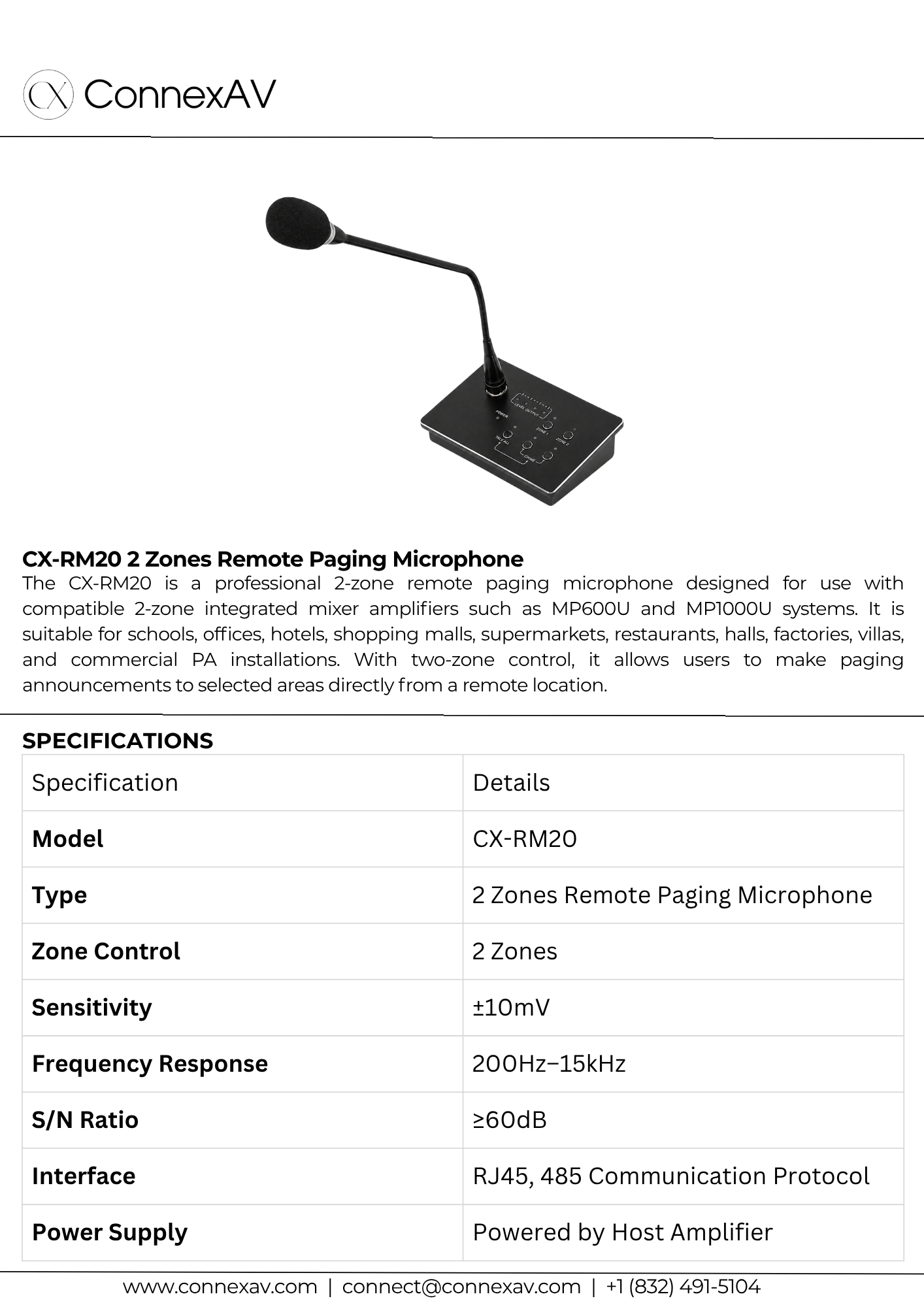

| Specification | Details |
|---|---|
| Model | CX-RM20 |
| Type | 2 Zones Remote Paging Microphone |
| Zone Control | 2 Zones |
| Sensitivity | ±10mV |
| Frequency Response | 200Hz–15kHz |
| S/N Ratio | ≥60dB |
| Interface | RJ45, 485 Communication Protocol |
| Power Supply | Powered by Host Amplifier |
