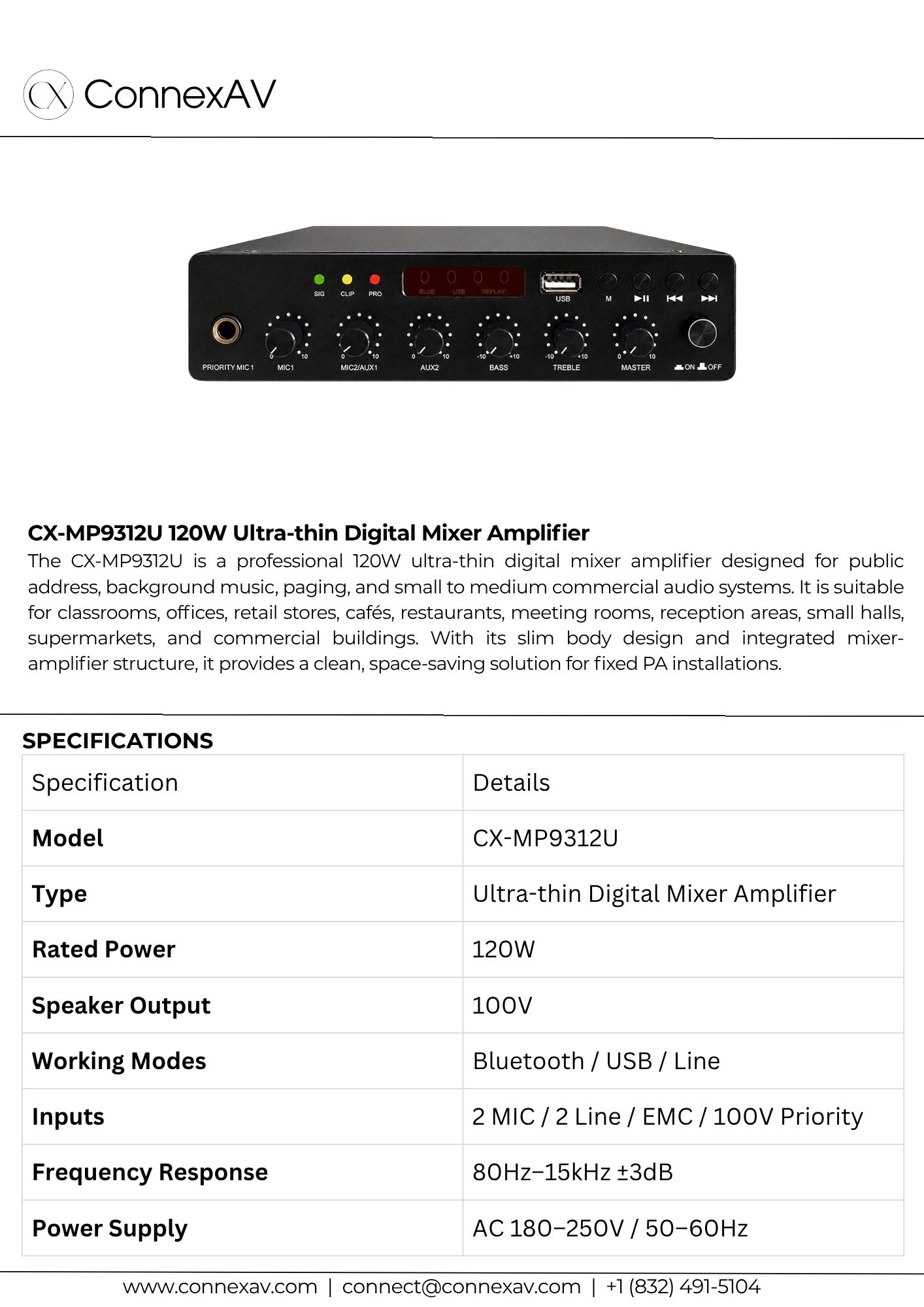

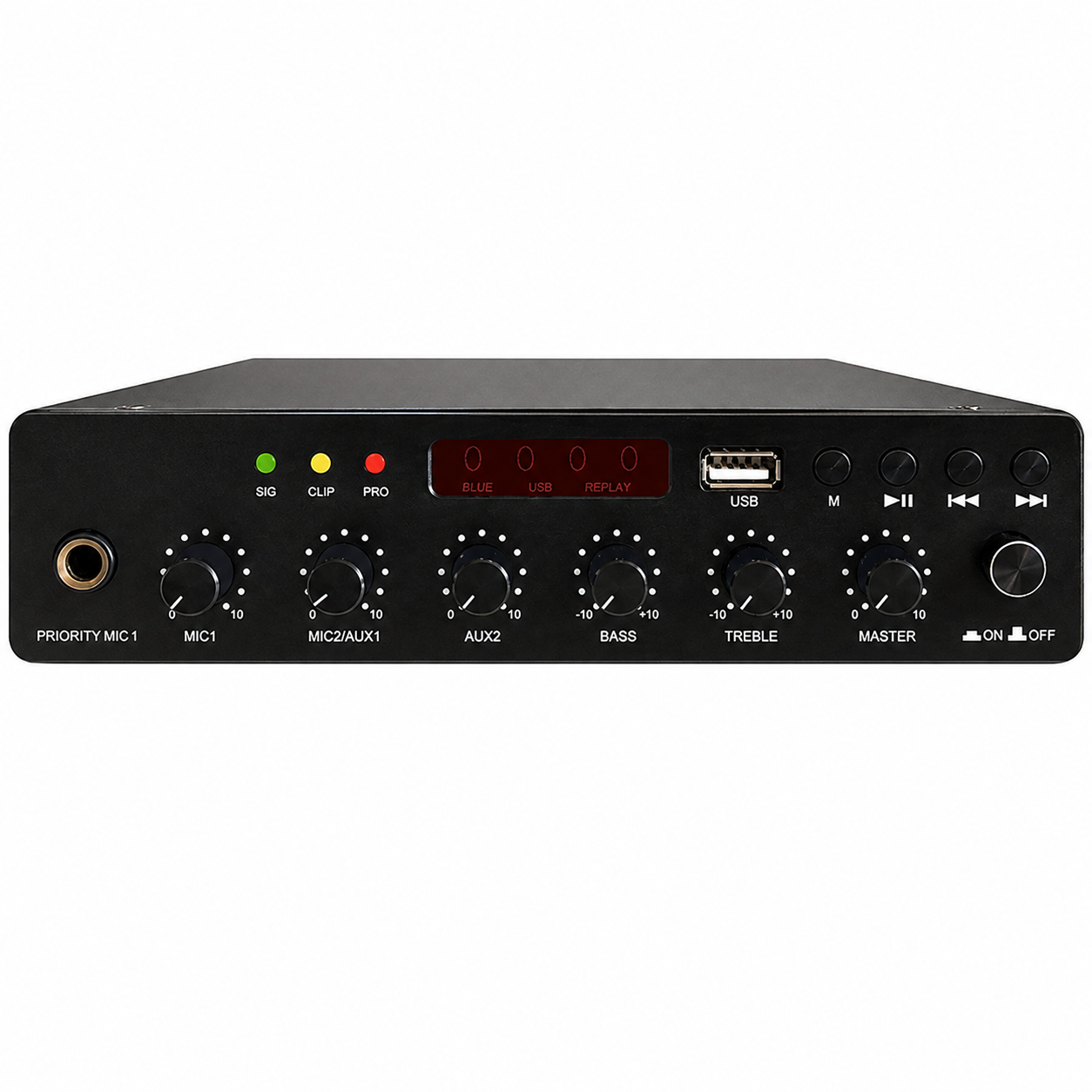

CX-MP9312U 120W Ultra-thin Digital Mixer Amplifier
- Professional 120W ultra-thin digital mixer amplifier
- Supports Bluetooth, USB, and line working modes
- Built-in wireless Bluetooth playback function
- Includes 2 microphone inputs and 2 line inputs
- Supports EMC input and 100V priority input
- Provides 100V speaker output and AUX output
- Priority function: 100V input > MIC1 > other inputs
- Bass and treble tone control for sound adjustment
- Built-in short-circuit, overload, high-temperature protection, and temperature-controlled fan
The CX-MP9312U is a professional 120W ultra-thin digital mixer amplifier designed for public address, background music, paging, and small to medium commercial audio systems. It is suitable for classrooms, offices, retail stores, cafés, restaurants, meeting rooms, reception areas, small halls, supermarkets, and commercial buildings. With its slim body design and integrated mixer-amplifier structure, it provides a clean, space-saving solution for fixed PA installations.

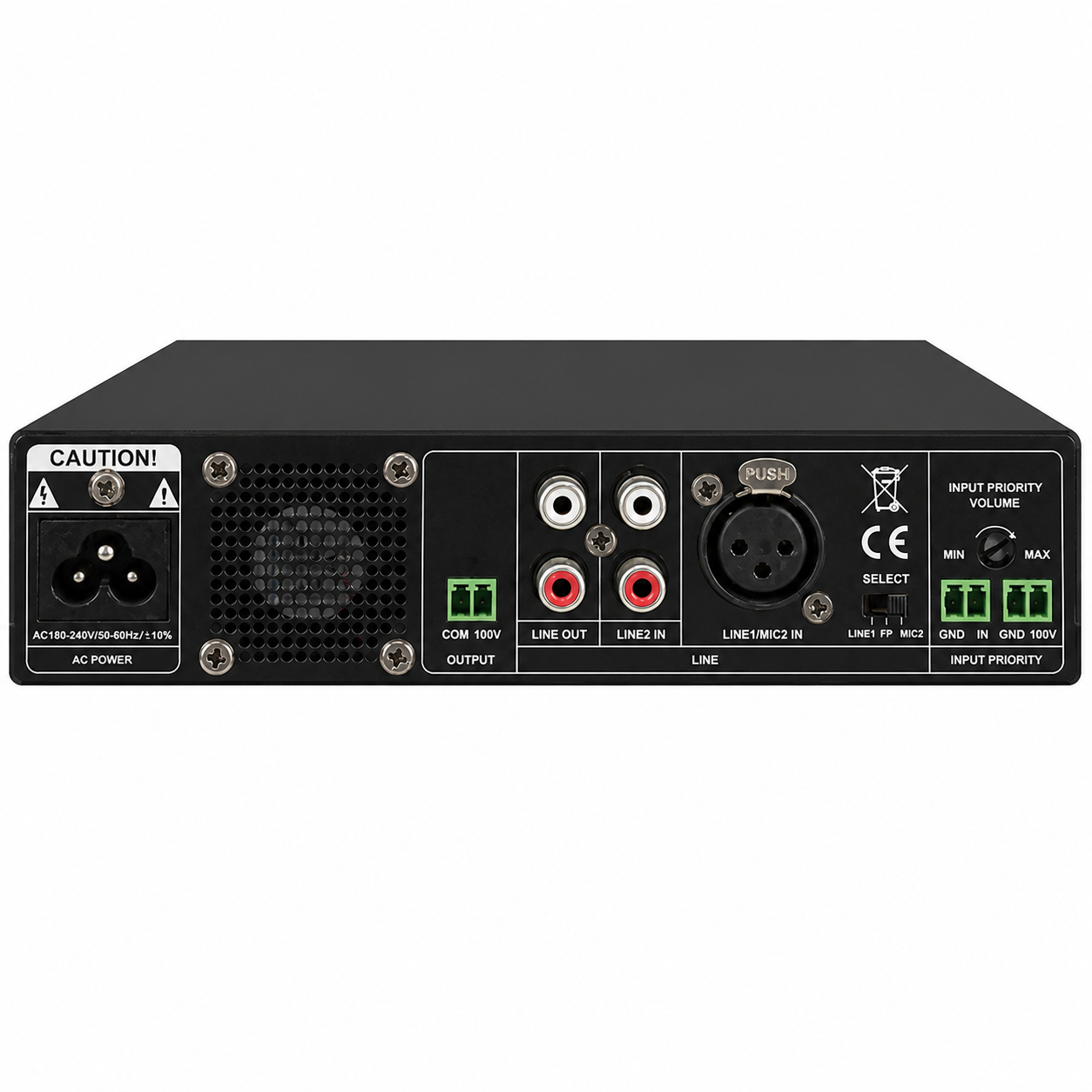

This amplifier supports Bluetooth, USB, and line working modes, making it convenient for both wired and wireless background music playback. It includes 2 microphone inputs, 2 line inputs, EMC input, 100V priority input, 100V speaker output, and AUX output for flexible PA system connection. With MIC1 priority, volume control, bass and treble adjustment, LED indicators, temperature-controlled fan, and protection against short circuit, overload, and high temperature, the CX-MP9312U is a reliable choice for professional daily audio operation.
| Specification | Details |
|---|---|
| Model | CX-MP9312U |
| Type | Ultra-thin Digital Mixer Amplifier |
| Rated Power | 120W |
| Speaker Output | 100V |
| Working Modes | Bluetooth / USB / Line |
| Inputs | 2 MIC / 2 Line / EMC / 100V Priority |
| Frequency Response | 80Hz–15kHz ±3dB |
| Power Supply | AC 180–250V / 50–60Hz |
