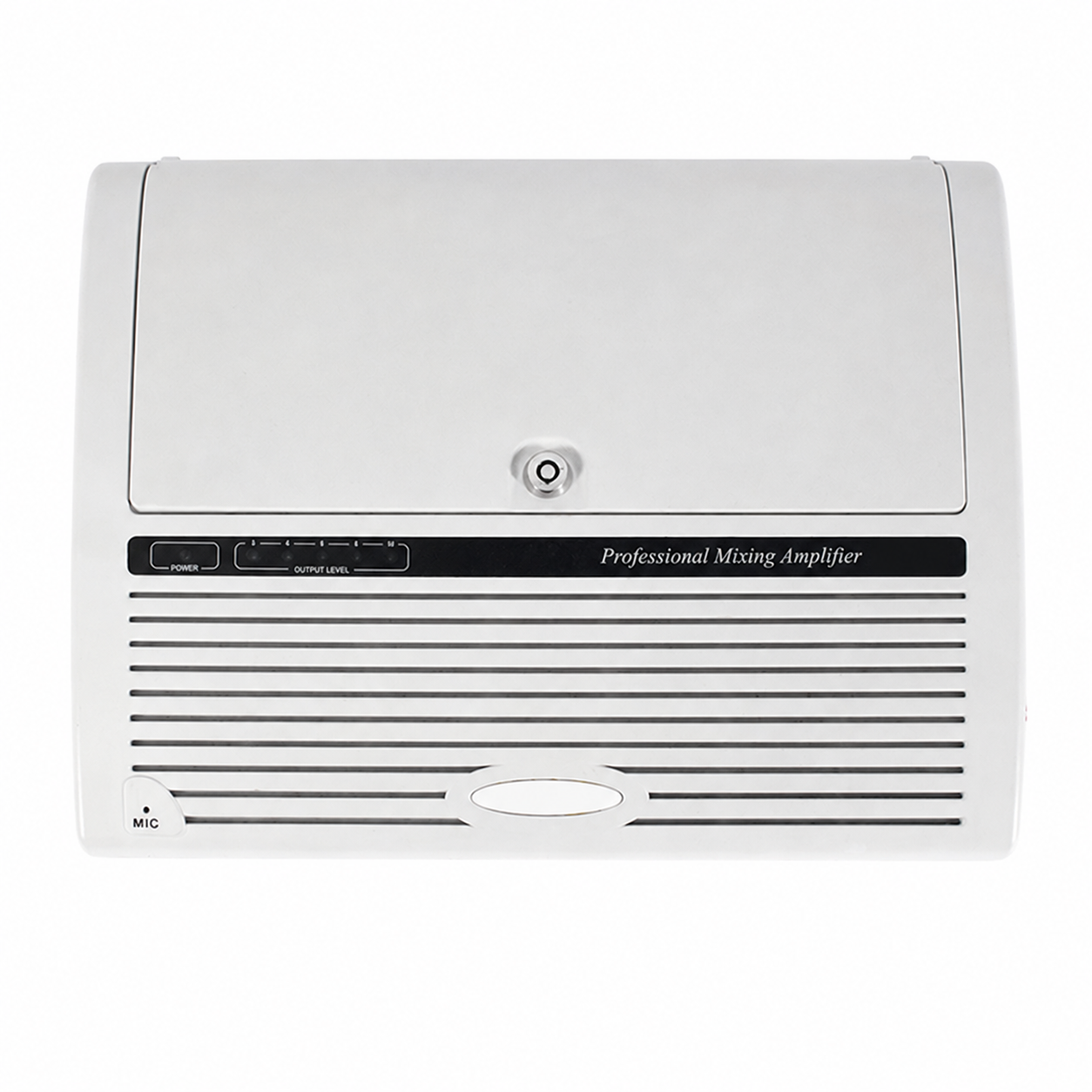

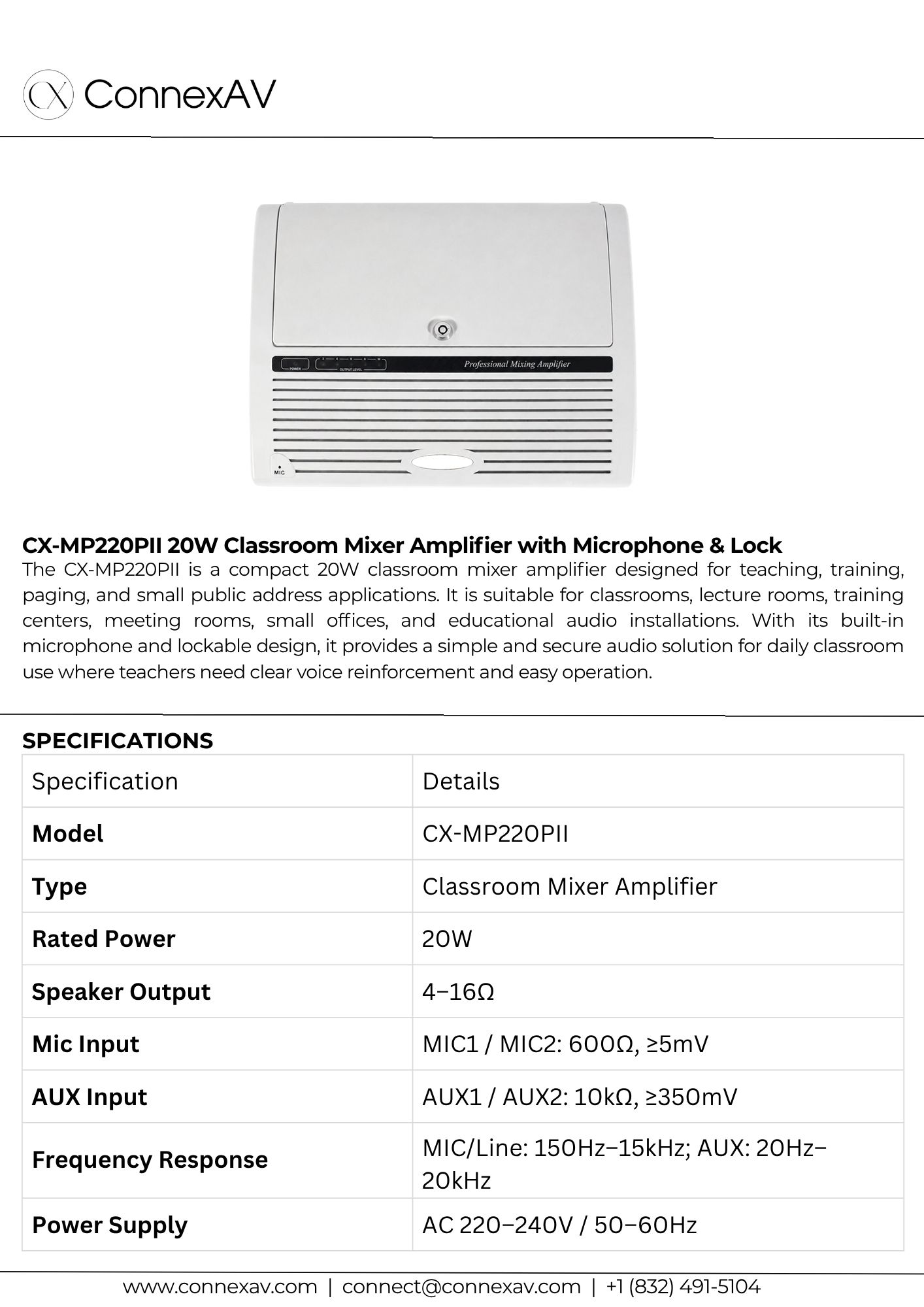

CX-MP220PII 20W Classroom Mixer Amplifier with Microphone & Lock
- Compact 20W classroom mixer amplifier
- Designed for classroom teaching and speech reinforcement
- Built-in microphone and lockable operation design
- Supports 4–16Ω speaker output
- Includes MIC1 and MIC2 microphone inputs
- Supports AUX1, AUX2, and line input connection
- Bass and treble tone control for sound adjustment
- Compact body for classroom and meeting room installation
- Ideal for classrooms, training rooms, lecture rooms, offices, and small PA systems
The CX-MP220PII is a compact 20W classroom mixer amplifier designed for teaching, training, paging, and small public address applications. It is suitable for classrooms, lecture rooms, training centers, meeting rooms, small offices, and educational audio installations. With its built-in microphone and lockable design, it provides a simple and secure audio solution for daily classroom use where teachers need clear voice reinforcement and easy operation.
This amplifier supports 4–16Ω speaker output and provides microphone, AUX, and line input options for flexible audio connection. It includes MIC1/MIC2 inputs, AUX1/AUX2 inputs, line input, tone control, and AC 220–240V power operation. With 20W rated output, compact installation size, and practical classroom-focused design, the CX-MP220PII is a reliable choice for small educational PA systems and speech reinforcement projects.
| Specification | Details |
|---|---|
| Model | CX-MP220PII |
| Type | Classroom Mixer Amplifier |
| Rated Power | 20W |
| Speaker Output | 4–16Ω |
| Mic Input | MIC1 / MIC2: 600Ω, ≥5mV |
| AUX Input | AUX1 / AUX2: 10kΩ, ≥350mV |
| Frequency Response | MIC/Line: 150Hz–15kHz; AUX: 20Hz–20kHz |
| Power Supply | AC 220–240V / 50–60Hz |
