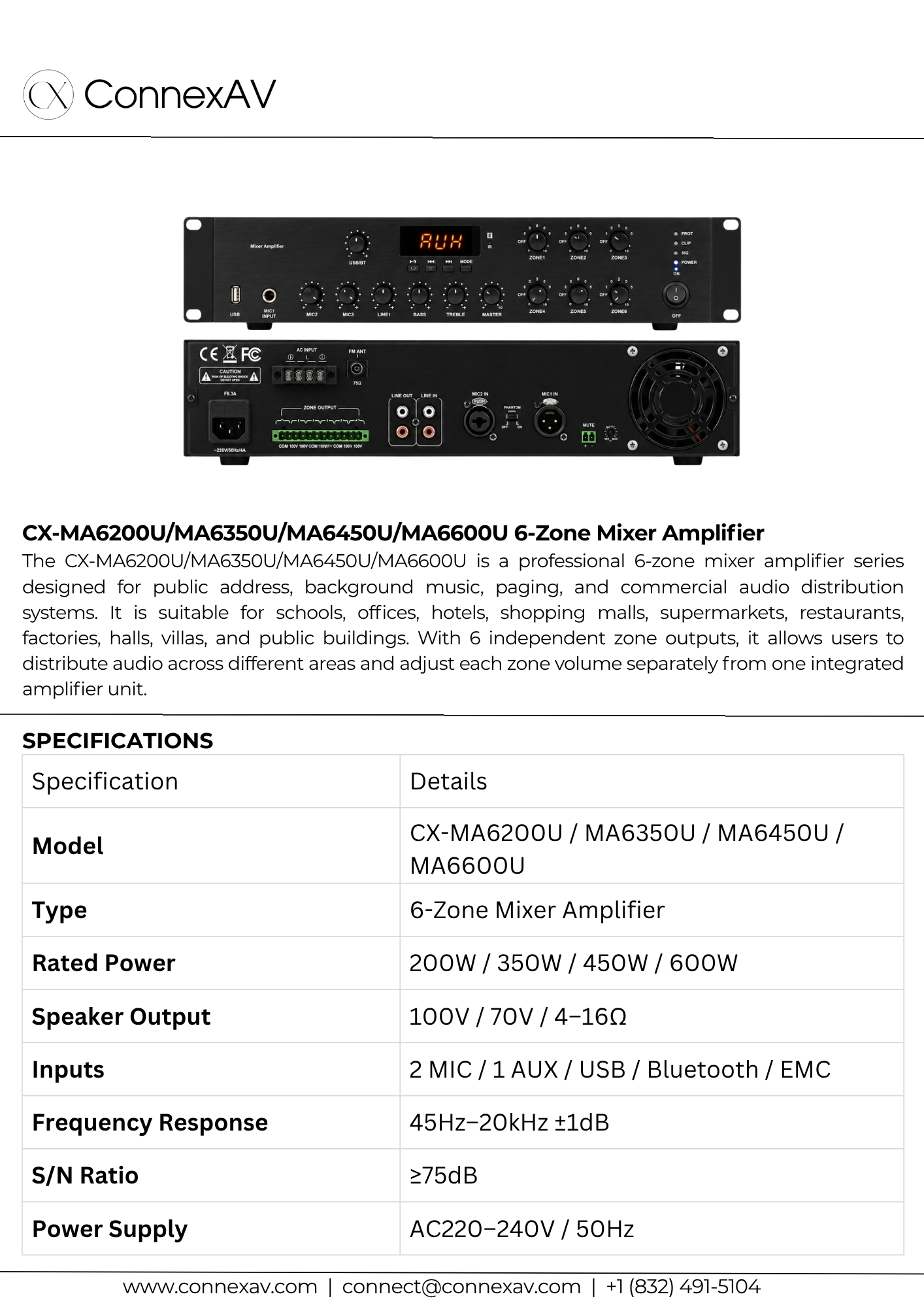

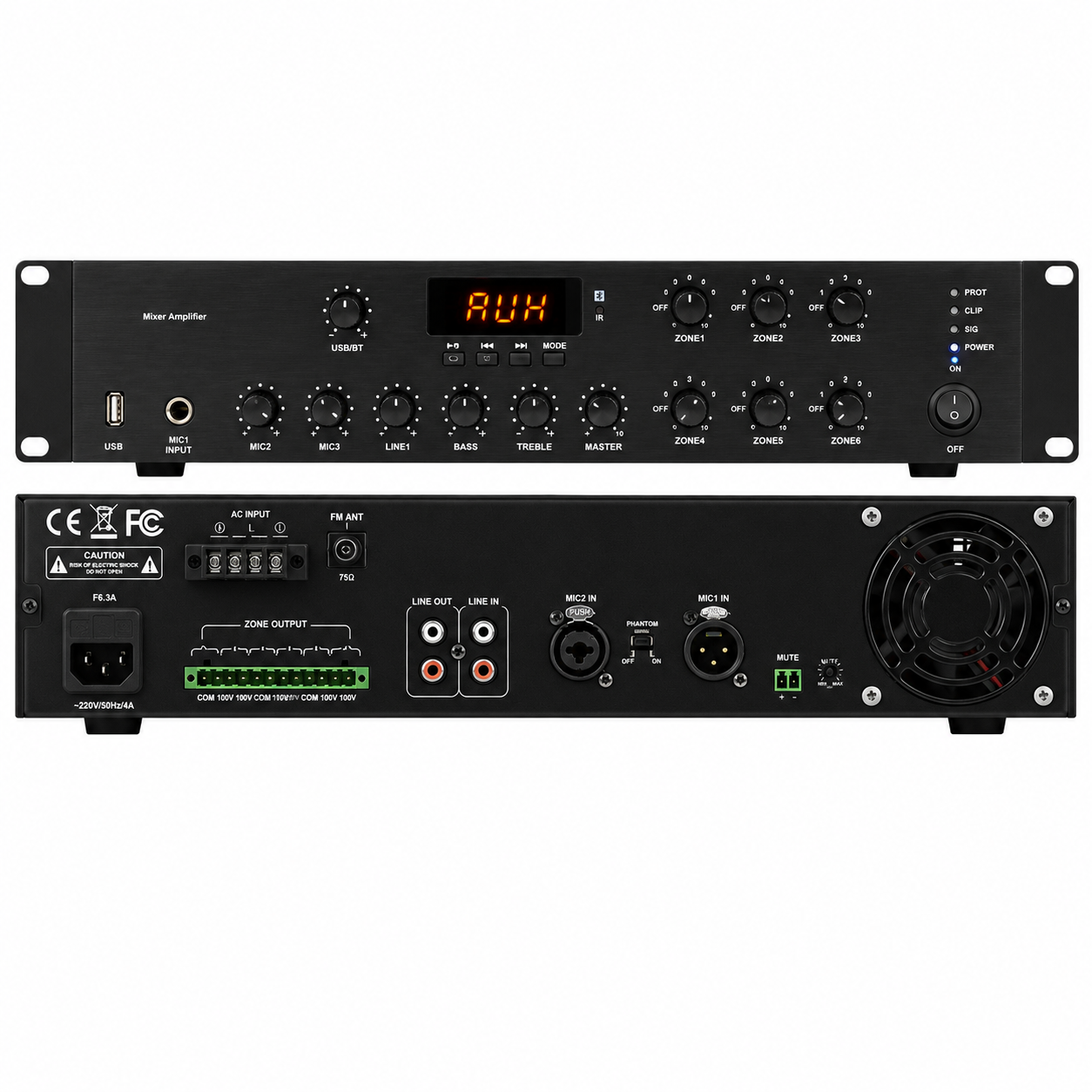

CX-MA6200U/MA6350U/MA6450U/MA6600U 6-Zone Mixer Amplifier
- Professional 6-zone mixer amplifier series
- Available models: MA6200U / MA6350U / MA6450U / MA6600U
- Power options: 200W / 350W / 450W / 600W
- Supports 100V / 70V / 4–16Ω speaker outputs
- Includes 2 MIC inputs, 1 AUX input, USB, Bluetooth, and EMC input
- Adjustable volume control for each of the 6 zone outputs
- Microphone mute function for override broadcasting
- Built-in 48V phantom power for microphone use
- Automatic temperature-controlled fan cooling with short-circuit and overheating protection
The CX-MA6200U/MA6350U/MA6450U/MA6600U is a professional 6-zone mixer amplifier series designed for public address, background music, paging, and commercial audio distribution systems. It is suitable for schools, offices, hotels, shopping malls, supermarkets, restaurants, factories, halls, villas, and public buildings. With 6 independent zone outputs, it allows users to distribute audio across different areas and adjust each zone volume separately from one integrated amplifier unit.
This amplifier series supports 100V / 70V constant-voltage output and 4–16Ω constant-resistance output, making it suitable for both distributed PA speakers and low-impedance speaker systems. It includes 2 MIC inputs, 1 AUX input, Bluetooth input, USB input, EMC input, 48V phantom power, microphone mute function, bass and treble tone control, and automatic temperature-controlled fan cooling. With power options of 200W, 350W, 450W, and 600W, the CX-MA6200U series is a strong solution for professional multi-zone paging and music installations.
| Specification | Details |
|---|---|
| Model | CX-MA6200U / MA6350U / MA6450U / MA6600U |
| Type | 6-Zone Mixer Amplifier |
| Rated Power | 200W / 350W / 450W / 600W |
| Speaker Output | 100V / 70V / 4–16Ω |
| Inputs | 2 MIC / 1 AUX / USB / Bluetooth / EMC |
| Frequency Response | 45Hz–20kHz ±1dB |
| S/N Ratio | ≥75dB |
| Power Supply | AC220–240V / 50Hz |
