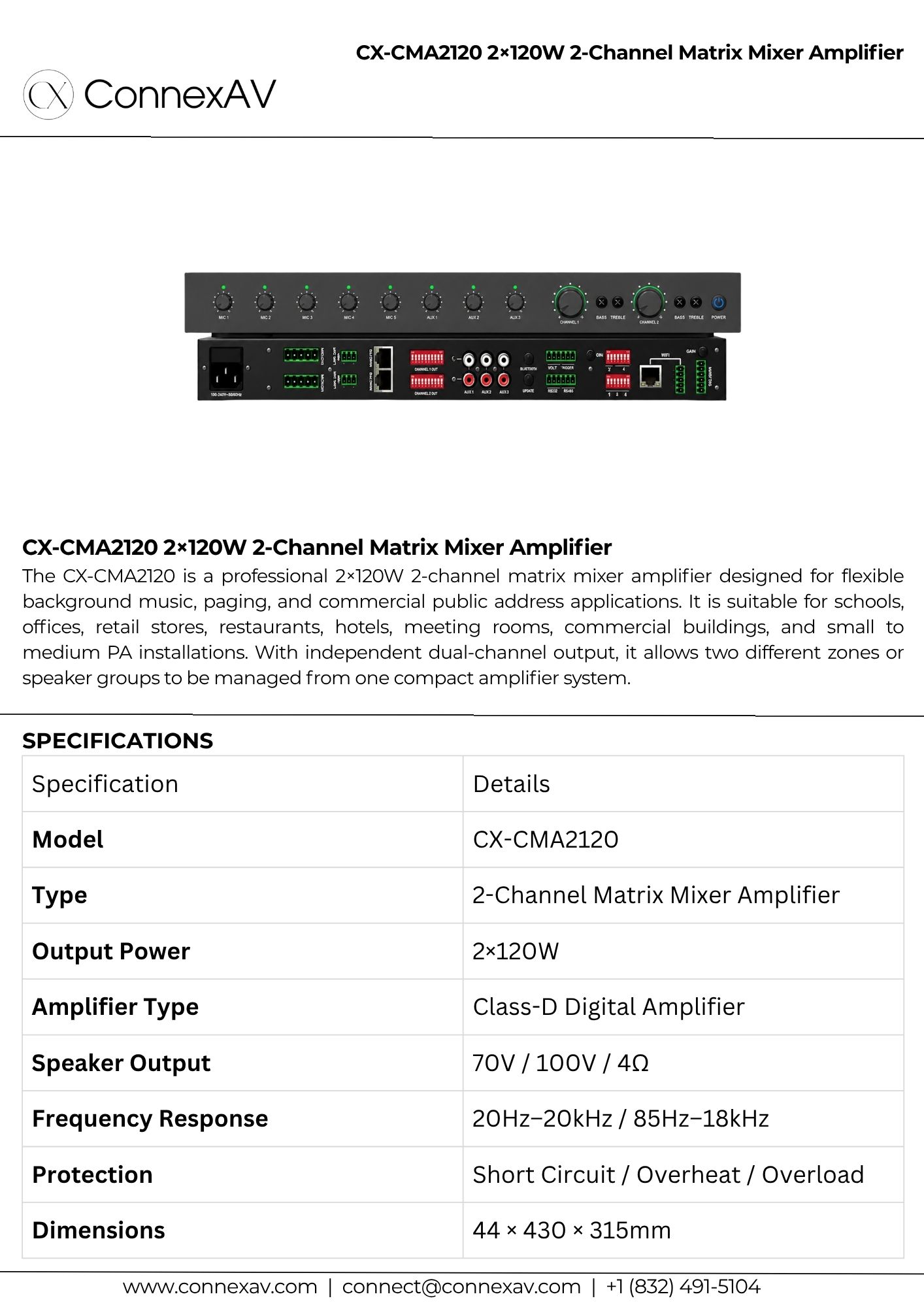

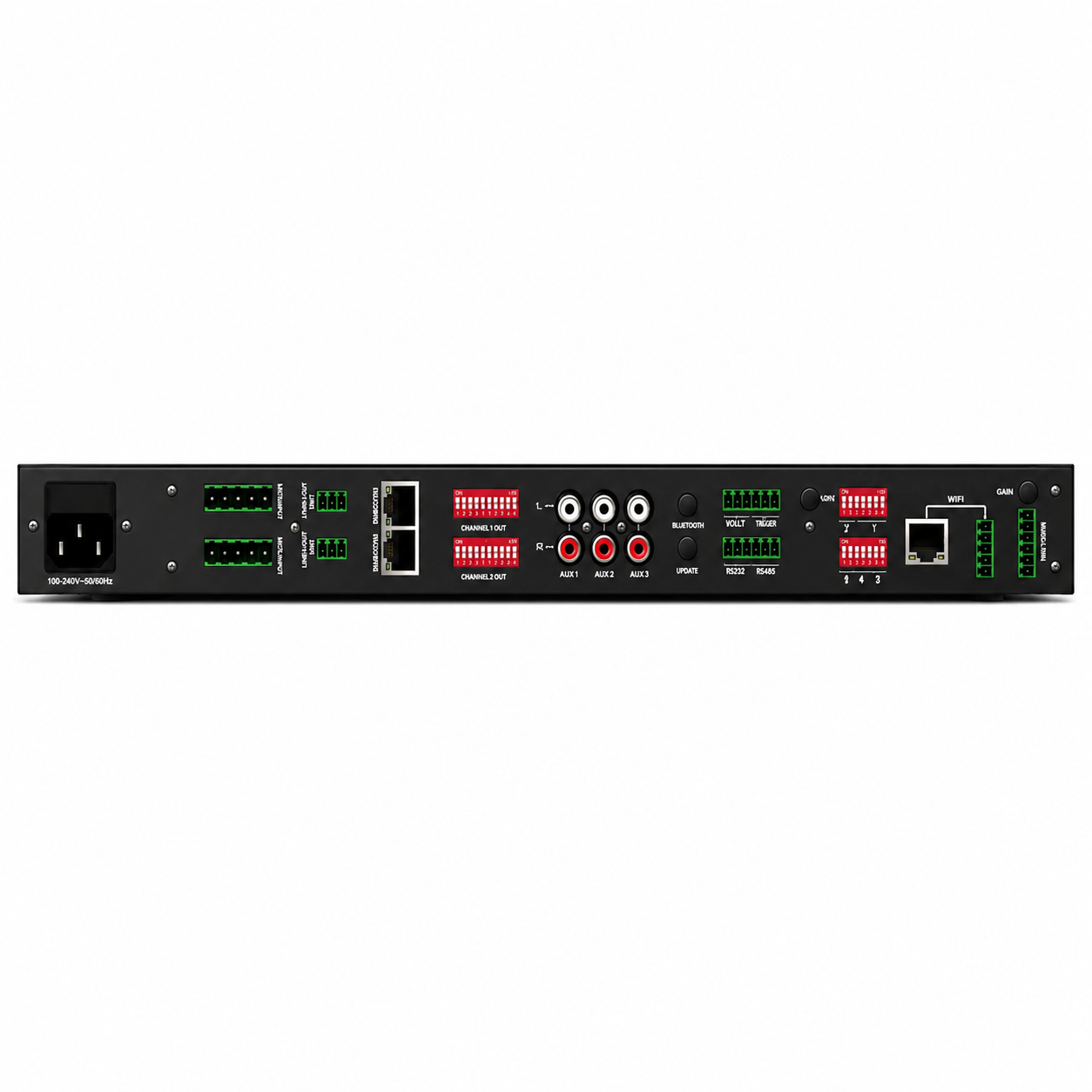

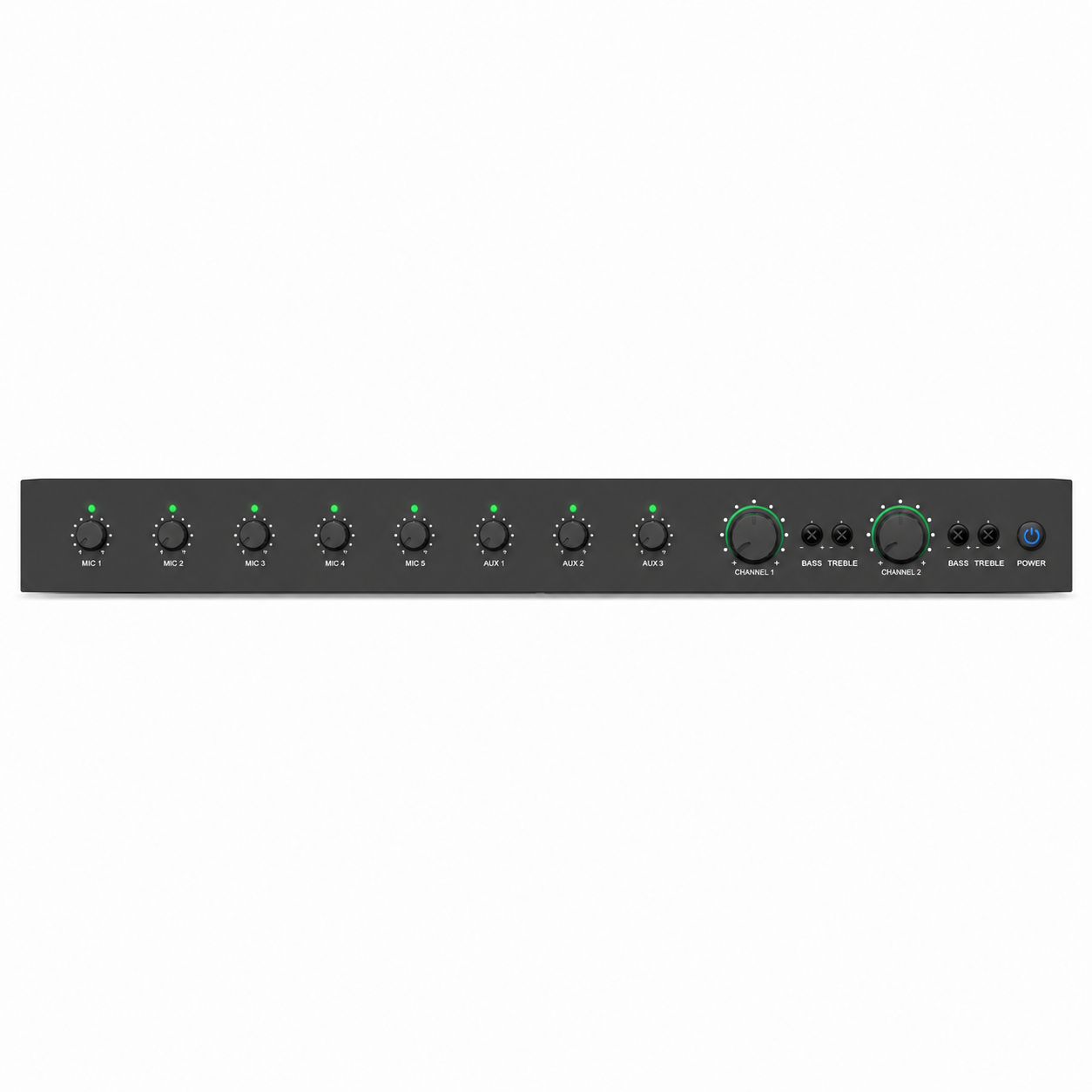

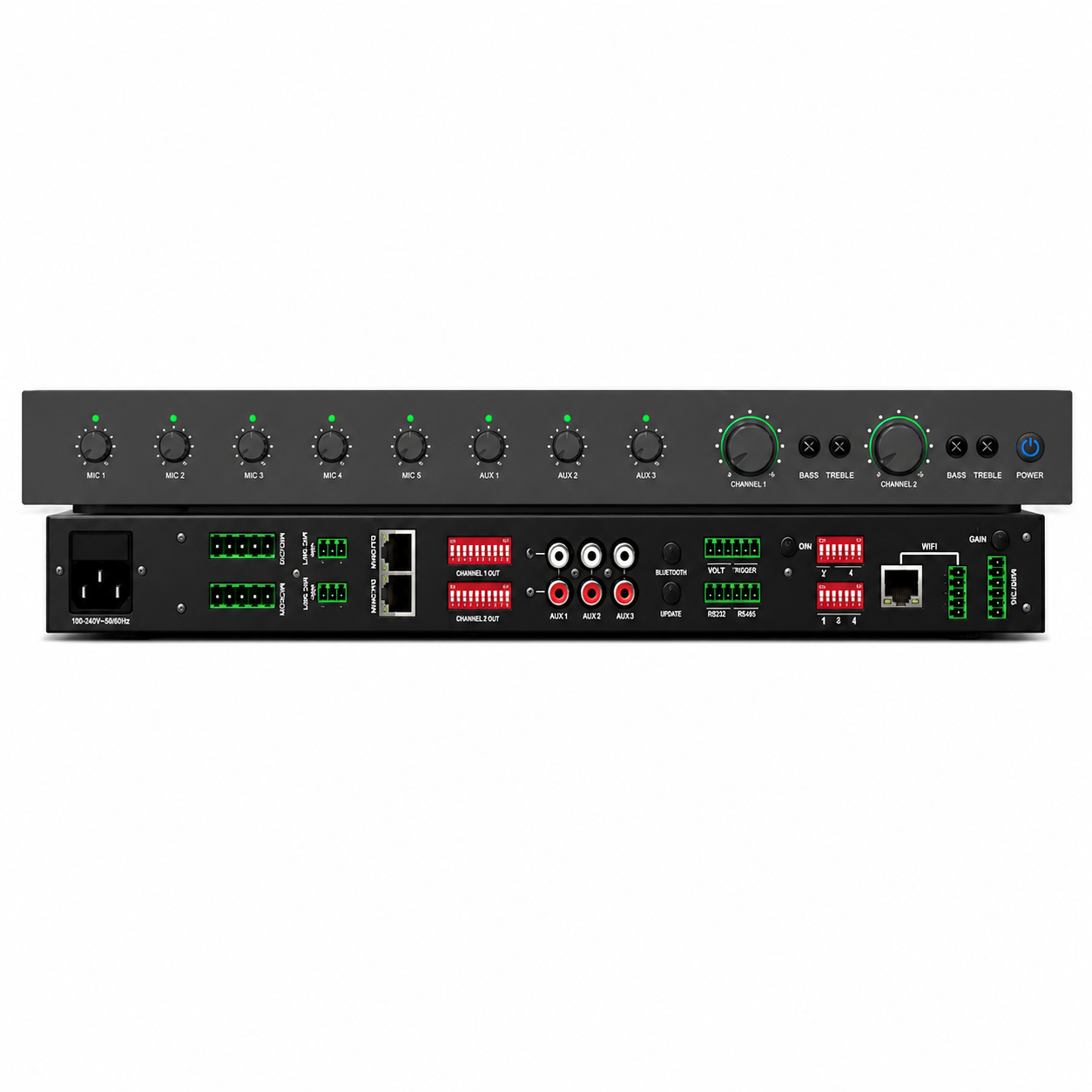

CX-CMA2120 2×120W 2-Channel Matrix Mixer Amplifier
- Professional 2-channel matrix mixer amplifier
- Provides 2×120W independent channel output
- High-efficiency Class-D digital amplifier design
- Supports 70V / 100V constant-voltage speaker output
- Supports low-impedance speaker output and balanced line output
- Multiple inputs including MIC, AUX, TEL/EMG, and line input
- Supports microphone priority and emergency priority functions
- Built-in tone control for bass and treble adjustment
- Protection against short circuit, overheating, and overload
The CX-CMA2120 is a professional 2×120W 2-channel matrix mixer amplifier designed for flexible background music, paging, and commercial public address applications. It is suitable for schools, offices, retail stores, restaurants, hotels, meeting rooms, commercial buildings, and small to medium PA installations. With independent dual-channel output, it allows two different zones or speaker groups to be managed from one compact amplifier system.
This amplifier uses a high-efficiency Class-D digital amplifier and supports multiple audio inputs including microphone, line, AUX, and emergency/TEL input. It provides 70V/100V constant-voltage output, low-impedance output, line output, tone control, phantom power, and priority functions for paging and emergency announcements. With built-in protection against short circuit, overheating, and overload, the CX-CMA2120 is a reliable solution for professional multi-zone audio projects.
| Specification | Details |
|---|---|
| Model | CX-CMA2120 |
| Type | 2-Channel Matrix Mixer Amplifier |
| Output Power | 2×120W |
| Amplifier Type | Class-D Digital Amplifier |
| Speaker Output | 70V / 100V / 4Ω |
| Frequency Response | 20Hz–20kHz / 85Hz–18kHz |
| Protection | Short Circuit / Overheat / Overload |
| Dimensions | 44 × 430 × 315mm |
