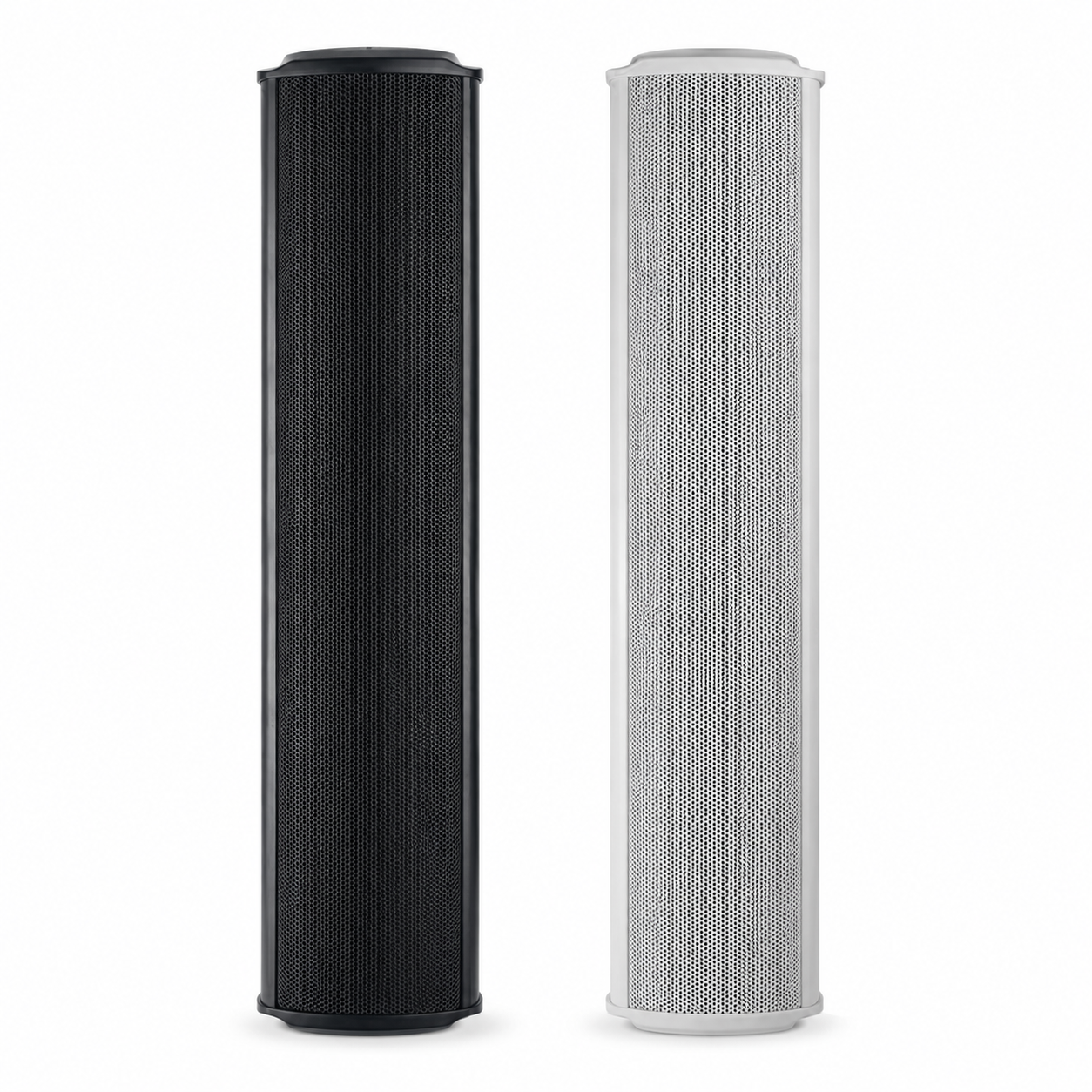

CX-DSP6114 / CX-DSP6116 Outdoor Waterproof Column Speaker
- Professional outdoor waterproof column speaker series
- Available in 20W and 40W models
- Two-way frequency design for clear sound output
- High-sensitivity speaker units with strong dynamic range
- Strong bass with clear and delicate treble
- Built-in E-type high-bandwidth transformer
- Aluminium shell with plastic cover and aluminium mesh
- UV-resistant surface treatment for long-term outdoor use
- Integrated sealing design with drain holes to reduce water accumulation
The CX-DSP6114 / CX-DSP6116 is a professional outdoor waterproof column speaker series designed for clear background music and public address applications in outdoor environments. It is suitable for schools, offices, hotels, factories, parks, corridors, outdoor walkways, public buildings, transportation areas, and commercial PA installations. With its weather-resistant construction and slim column design, it provides a reliable and neat solution for long-term fixed outdoor audio projects.
This series uses high-sensitivity speaker units with a two-way frequency design, delivering strong bass, clear treble, and good voice playback performance. The speaker includes an E-type high-bandwidth transformer with pure copper wire for stable audio transmission. Its aluminium shell, plastic cover, aluminium mesh, UV-resistant surface treatment, integrated sealing design, and drain holes help protect the speaker against outdoor weather, resonance, and water accumulation.
| Specification | Details |
|---|---|
| Model | CX-DSP6114 / CX-DSP6116 |
| Type | Outdoor Waterproof Column Speaker |
| Rated Power | 20W / 40W |
| Frequency Response | 140Hz–14kHz |
| Sensitivity | 89±2dB / 93±2dB |
| Maximum SPL | 102±2dB / 109±2dB |
| Speaker Unit | 4″×2 + 1″×1 / 4″×4 + 1″×1 |
| Weight | 3.0kg / 5.0kg |
