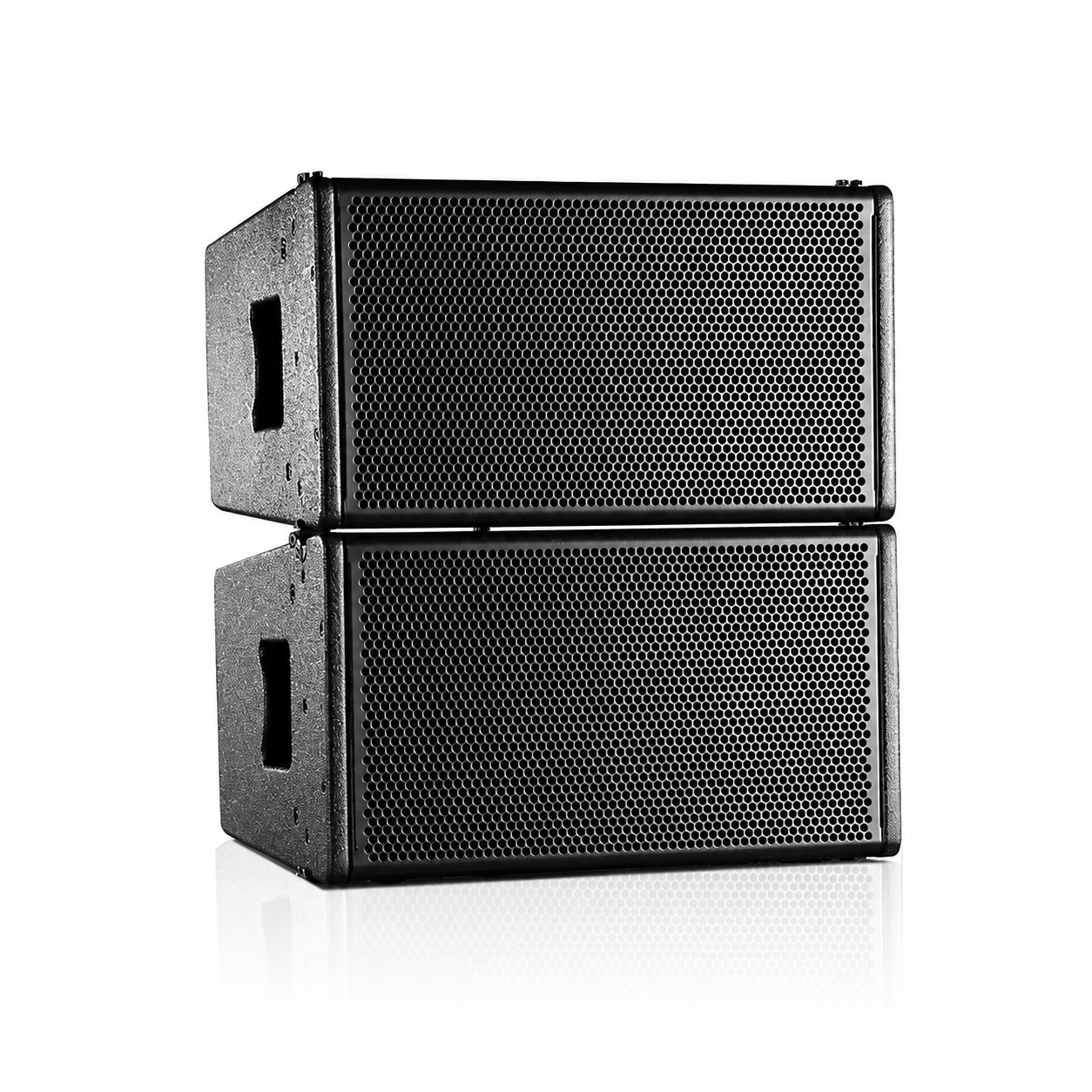

CXM1432 350W Two-Way Passive Array Full Range Speaker
- Compact two-way passive array speaker system
- Uses line array technology for better sound coverage
- Driver configuration: 10″ MF × 1 + 1.75″ HF × 2
- Frequency response: 65Hz–18kHz
- Small size with strong mobility
- Easy integrated design and installation
- Wear-resistant surface treatment
- All-aluminium hanging parts for installation support
- Suitable for small mobile performances, stadiums, theatres, bars, and banquet halls
Product Description
Specifications
Product Description
The CXM1432 is a professional 350W two-way passive array full-range speaker designed to deliver powerful, clear, and balanced sound reproduction for professional sound reinforcement applications. Its passive array configuration provides controlled sound projection and consistent coverage, making it suitable for installations and mobile audio systems where high output, vocal clarity, and reliable performance are required.
The speaker features a two-way acoustic design that separates low/mid-frequency and high-frequency reproduction, allowing it to deliver powerful low-end performance while maintaining clear and detailed high frequencies. With a 350W AES rated power, the CXM1432 is designed to handle demanding program material and provide sufficient acoustic output for medium- to large-scale sound reinforcement applications.

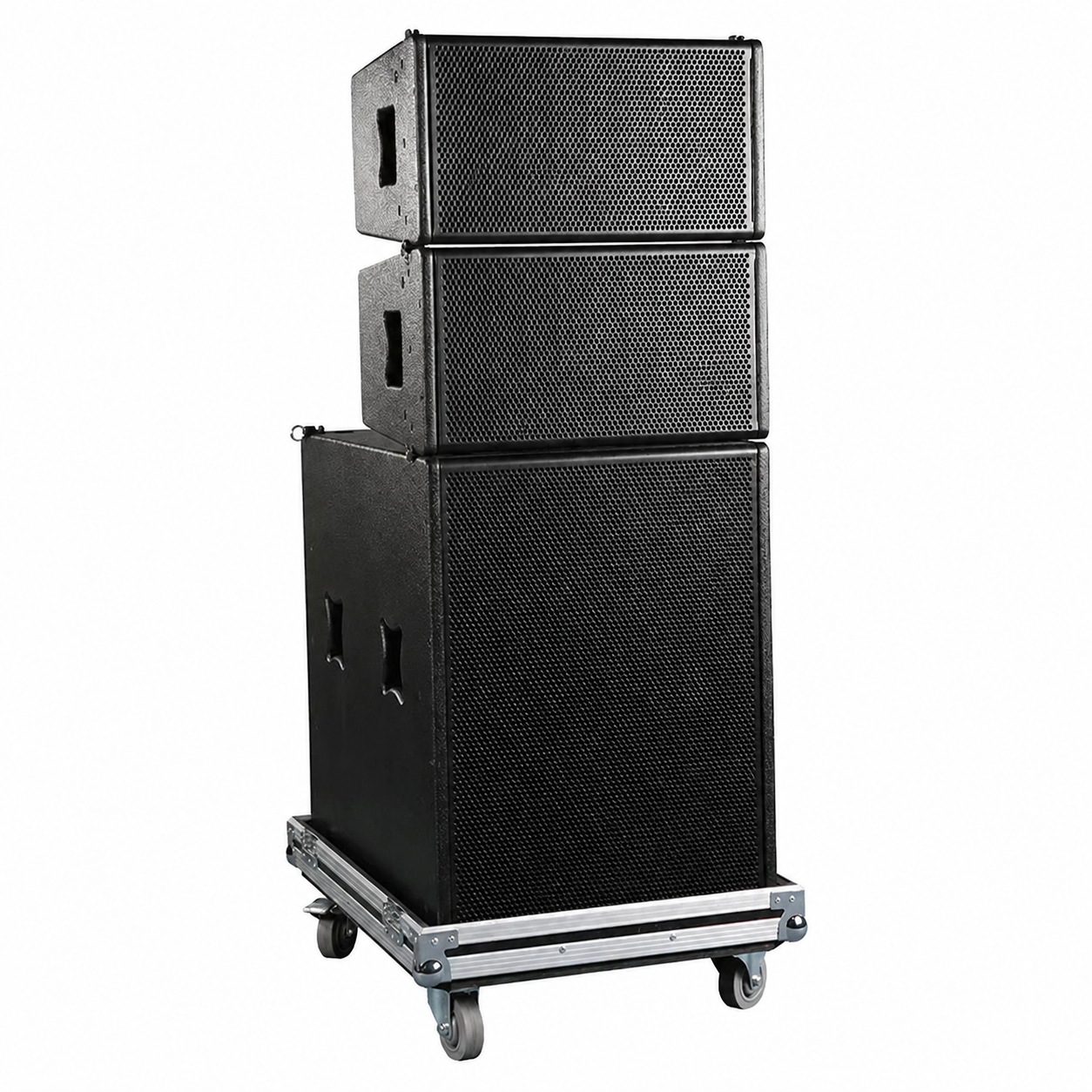

As a passive speaker, the CXM1432 requires a compatible external power amplifier and can be combined with a professional DSP processor for equalization, crossover, delay, and system optimization. This provides sound engineers and installers with flexibility to configure the speaker according to the acoustic requirements of different venues. Multiple units can also be incorporated into larger array configurations when increased coverage and output are required.
Specifications
| Specification | Details |
|---|---|
| Model | CXM1432 |
| Type | Two-Way Passive Array Full Range Speaker |
| Unit Structure | 10″ MF × 1, 1.75″ HF × 2 |
| Frequency Response | 65Hz–18kHz |
| Sensitivity | MF: 96±2dB / HF: 104±2dB |
| Maximum SPL | MF: 120±2dB / HF: 126±2dB |
| Continuous Power | MF: 350W / HF: 120W |
| Rated Impedance | MF: 8Ω / HF: 16Ω |
| Directivity | 100° × 10° |
| Dimensions | 500 × 296 × 342mm |
| Weight | 21kg |
