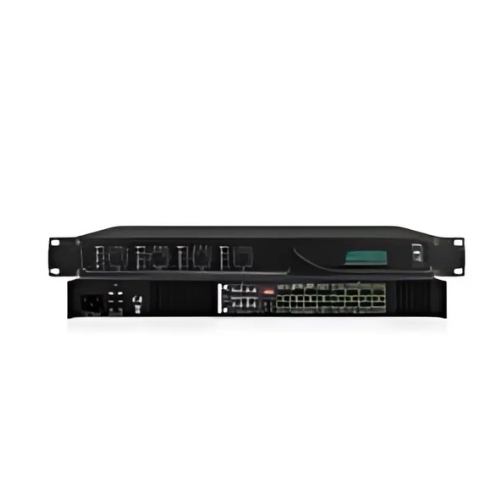

CX-DMA6250U 250W 6 Zones Digital Mixer Amplifier with Remote Paging Station
Features
● 70V/100V & 4-16Ω speaker output
● Rated power:250W
● Input source: 4 Mic, 4 AUX and USB/FM/Bluetooth/TF
● Support 6 remote paging microphones
● With 19″ rack mount handles
● Phoenix port for Mic2-4 input ,Line2 input ,EMC input,
● Mute and Siren
● Mic 2-4 with phantom power 48V
● Individual volume control and Bass/Treble adjustment
● Priority: MUTE>EMC IN=SIREN>MIC1=CHIME=
● Remote Mic>Mic2-Mic4/AUX input/Bluetooth/FM/USB
● Protection: Overload, Clipping, Short circuit and temperature protection
● Power supply: AC220V-230V/50Hz/60Hz or DC24V
Product Description
Specifications
Product Description
The CX-DMA6250U Digital Mixer Amplifier can be used in conjunction with the CX-DMA20 Remote Paging Station to handle a 2-channel RJ-45 remote paging microphone. The amplifier features an intuitive display panel with input sources including 4 MIC, 4 AUX, USB, FM, Bluetooth, and TF. It also provides protection against overload, clipping, short circuits, and excessive working temperatures. It is a multifunctional amplifier designed to fulfil the needs of its consumers.
Specifications
| Feature | CX-DMA6250U |
|---|---|
| Power | AC220-230V 50/60Hz |
| Input Sensitivity | MIC1: 5mV ±1mv (Balanced XLR Input) |
| MIC2/MIC3/MIC4: 5mV ±1mv (Unbalanced Phoenix Jacks) | |
| AUX1: 350mV±50mv (Unbalanced RCA Input) | |
| AUX2: 350mV ±50mv (Unbalanced Phoenix Jacks) | |
| EMC: 350mV ±50mv (Unbalanced Phoenix Jacks) | |
| MIC Frequency Response | 120Hz～12kHz (±3dB) |
| AUX Frequency Response | 80Hz～15kHz (±3dB) |
| THD | <1% |
| Treble Adjustment Range | 10dB（±2） |
| BASS Adjustment Range | 10dB（±2） |
| Phantom Power | +48V |
| Rated Output Power | 250W |
| Output Voltage of Port | 4-16Ω, 70V, 100V (fixed voltage output) |
| Current | 2A |
| Protection | F3.15AL |
| Machine Dimension (D×W×H) | 430×390×88mm |
| Package Dimension | 545×500×165mm |
| Net Weight | 8.6KG |
| Gross Weight | 9.8KG |
