CX-4530 CX-4530S Professional Column Array Speaker System
- Professional column array speaker system
- Includes CX-4530 passive column speaker + CX-4530S active subwoofer

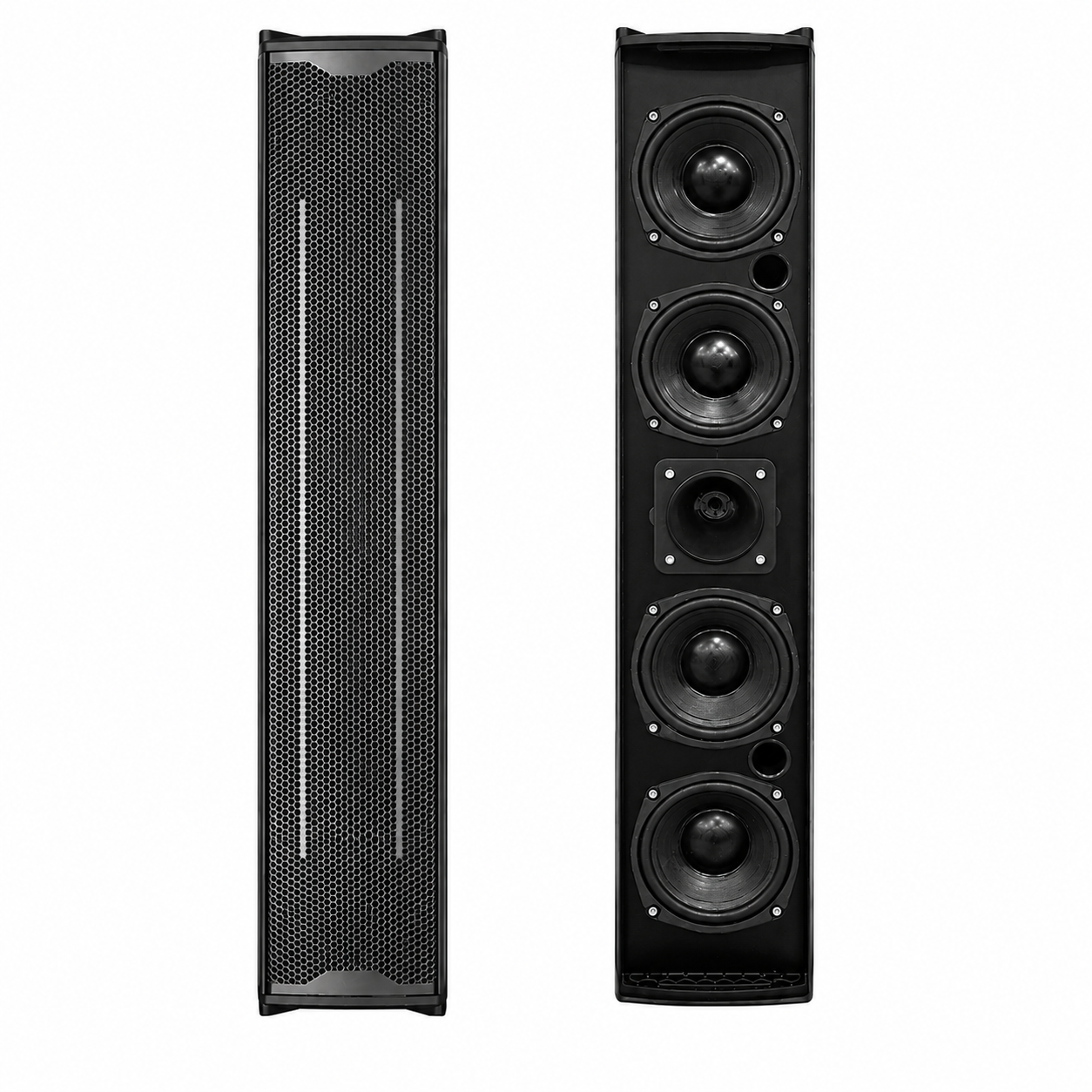

- CX-4530 uses 4 × 4.5″ full-range drivers + 1 × 1″ tweeter
- Built-in passive crossover for balanced sound output
- Durable aluminium alloy enclosure for the column speaker
- Supports parallel connection and flexible installation

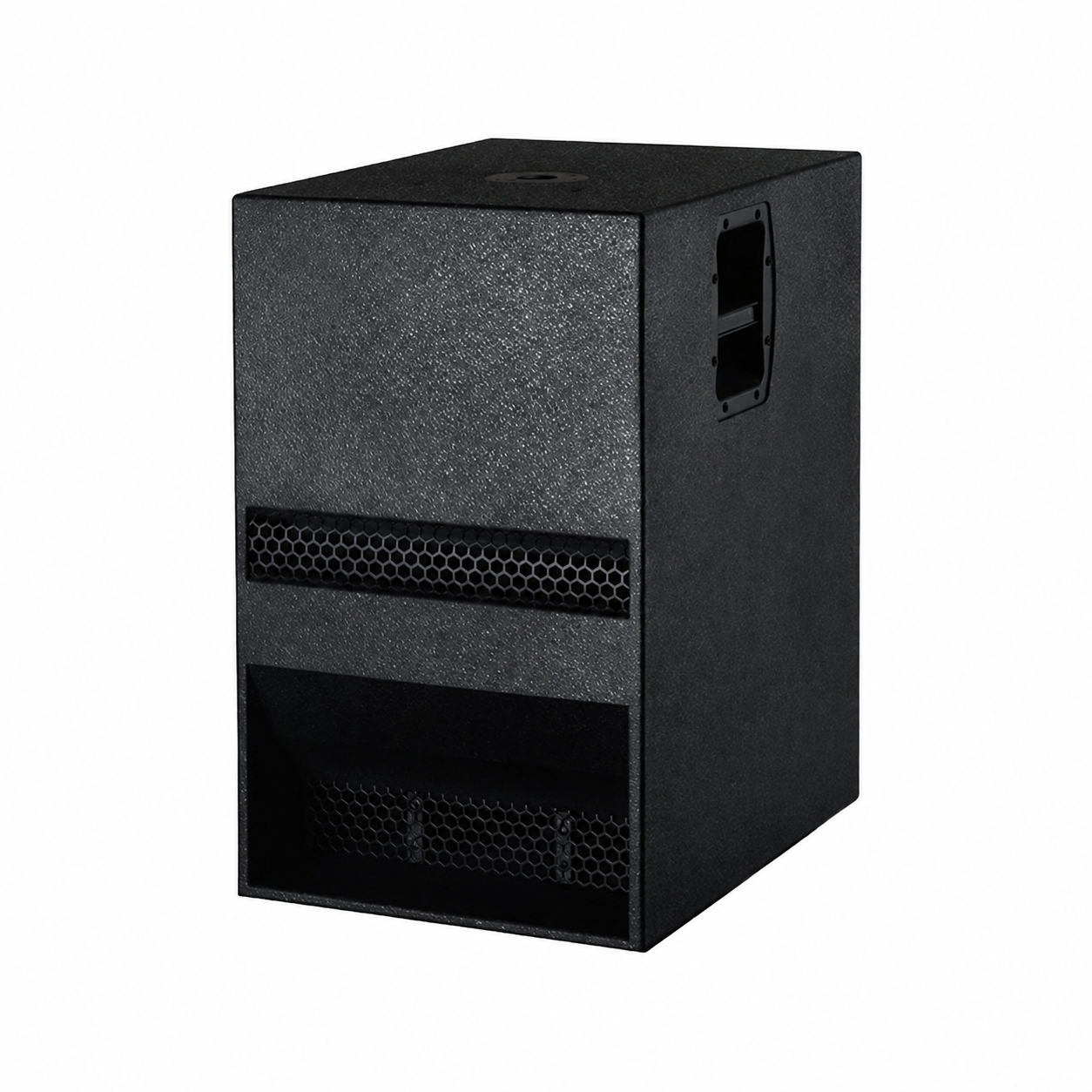

- CX-4530S includes 1 × 15″ bass driver for strong bass

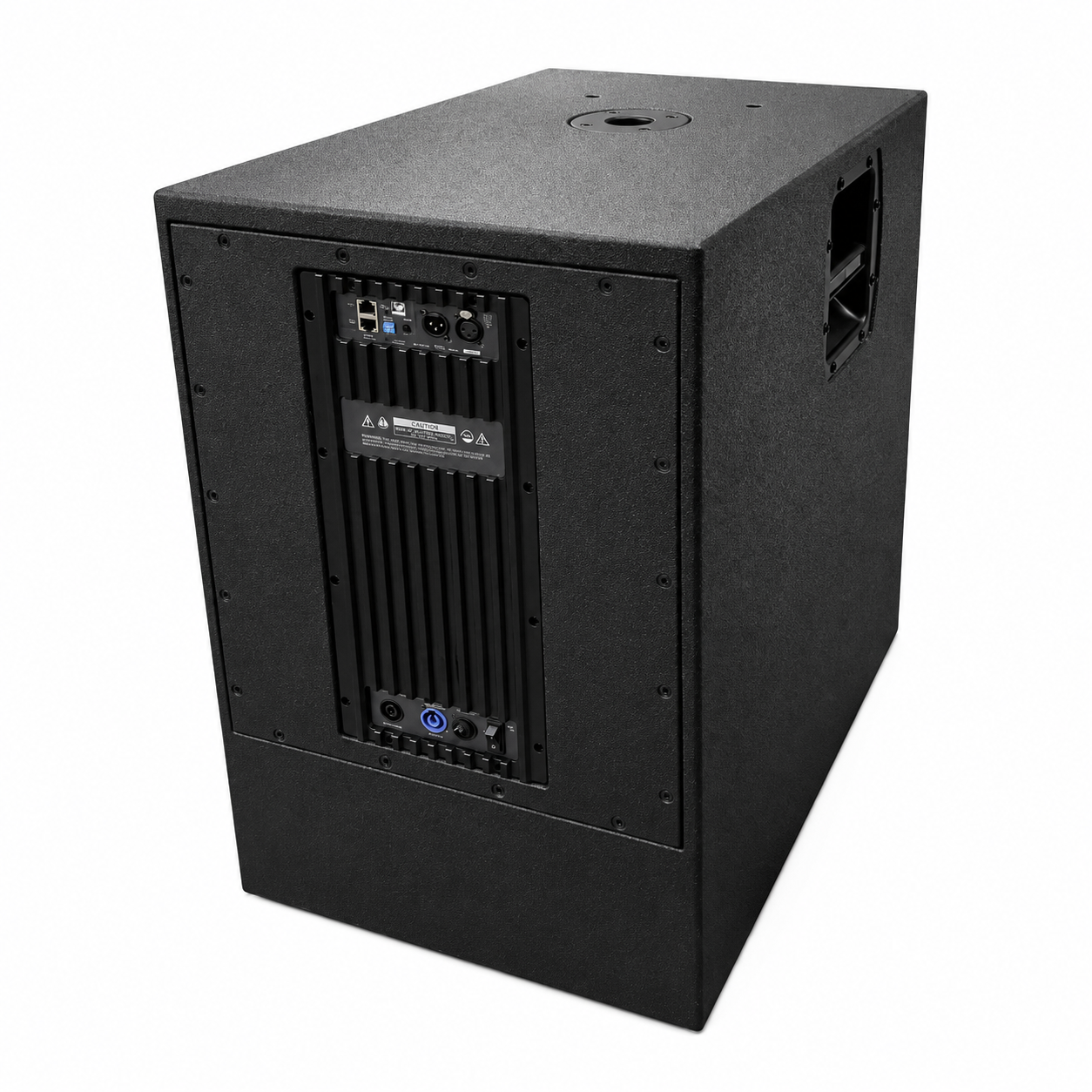

- Built-in 1400W high-power amplifier in the active subwoofer
- Suitable for conferences, performances, parties, venues, and professional events
Product Description
Specifications
Product Description

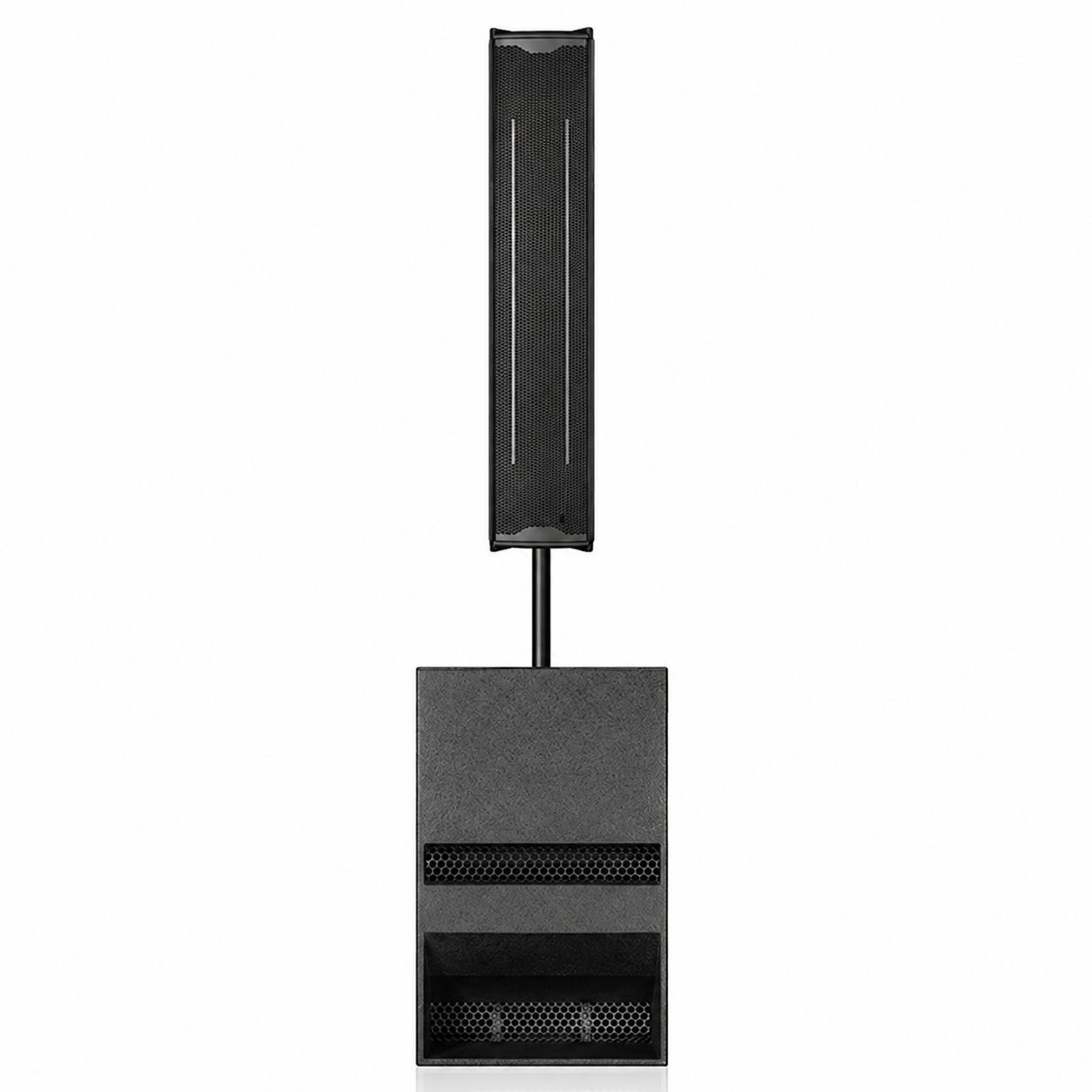

The CX-4530 / CX-4530S is a professional column array speaker system engineered for high-quality sound reinforcement in demanding indoor and commercial audio environments. The column-array format combines multiple speaker elements within a slim enclosure to provide controlled sound dispersion and consistent coverage across the listening area. This design is especially beneficial in venues where clear speech reproduction and controlled acoustic projection are essential.
The system is designed to deliver high speech intelligibility and balanced music reproduction, making it suitable for both spoken-word and program-audio applications. Its controlled vertical dispersion helps direct sound toward the intended audience while reducing unnecessary energy directed toward ceilings and floors. This can help improve clarity in reverberant spaces and make the system particularly effective in venues with challenging acoustics.
The CX-4530/CX-4530S can be integrated into professional audio installations alongside DSP processors, power amplifiers, mixers, microphones, and other sound-management equipment. Using appropriate DSP configuration, installers can optimize equalization, crossover, delay, and system levels to suit the acoustic characteristics and layout of a particular venue.

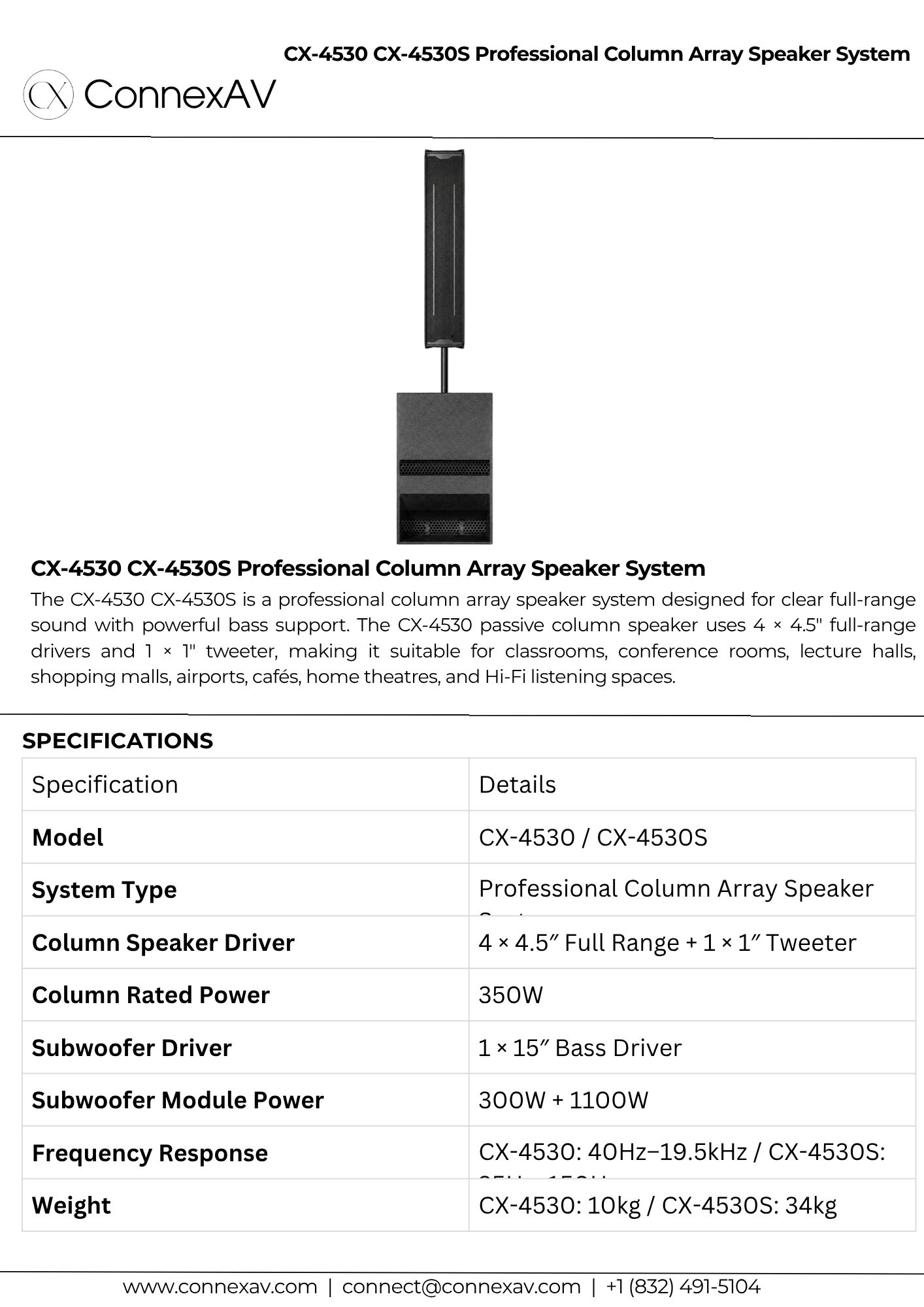

Specifications
| Specification | Details |
|---|---|
| Model | CX-4530 / CX-4530S |
| System Type | Professional Column Array Speaker System |
| Column Speaker Driver | 4 × 4.5″ Full Range + 1 × 1″ Tweeter |
| Column Rated Power | 350W |
| Subwoofer Driver | 1 × 15″ Bass Driver |
| Subwoofer Module Power | 300W + 1100W |
| Frequency Response | CX-4530: 40Hz–19.5kHz / CX-4530S: 35Hz–150Hz |
| Weight | CX-4530: 10kg / CX-4530S: 34kg |
