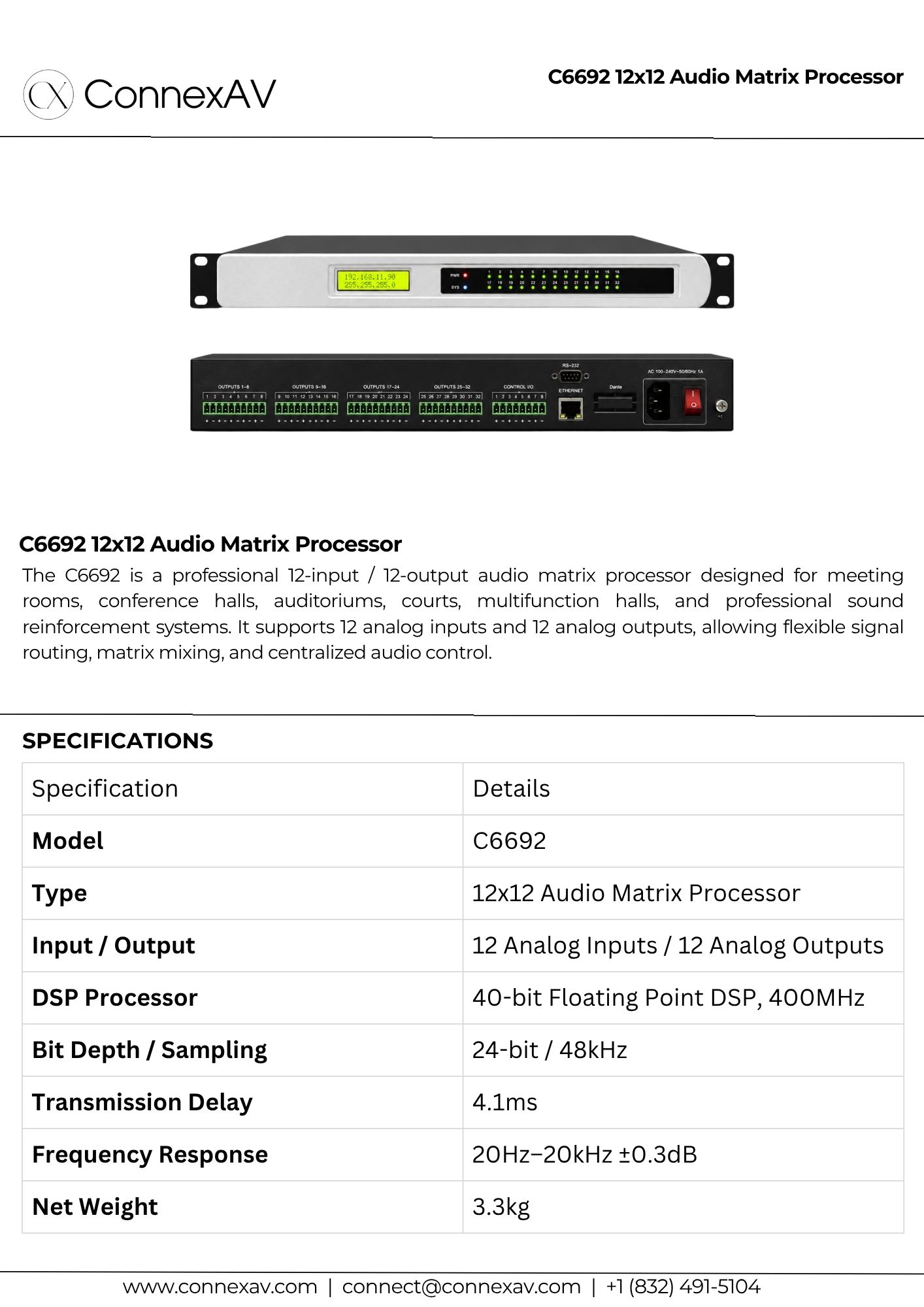

The C6692 is a professional 12×12 audio matrix processor designed for advanced audio routing, signal processing, multi-zone sound reinforcement, conference systems, and professional commercial audio installations. It provides 12 analog audio inputs and 12 analog audio outputs, allowing multiple microphones and line-level sources to be routed flexibly to different output channels. This makes it suitable for complex audio environments where independent signal management and precise system control are required.

The processor uses a 40-bit floating-point DSP operating at 400MHz, together with 24-bit/48kHz AD/DA conversion, to provide high-quality audio processing and signal management. Its processing architecture includes input/output gain control, matrix mixing, equalization, noise gate, compressor, limiter, AGC, crossover, delay, and real-time level monitoring, allowing the audio system to be precisely tuned for different rooms and applications. Each input can also support 48V phantom power, making the processor suitable for professional microphone installations.

The C6692 also provides extensive system-control capabilities through TCP/IP, RS232, RS485, and GPIO interfaces. Its GPIO supports 8-channel scene switching, while up to 60 scene presets can be stored for fast recall of different audio configurations. With a maximum output delay of 1500ms, high dynamic range, low distortion, and flexible matrix routing, the C6692 is well suited for theaters, concert halls, conference centers, stadiums, churches, remote video-conferencing rooms, theme parks, hotels, and large commercial audio installations
