CX6648 Conference Audio Processor
- Professional 4-input / 8-output conference audio processor
- Supports 4 analog inputs and 8 analog outputs
- Seamless switching between microphone and line inputs
- Built-in 40-bit floating-point DSP processor
- 24-bit / 48kHz high-quality audio processing
- Supports 48V phantom power for each input
- Full matrix mixing with EQ, gate, compressor, limiter, and AGC

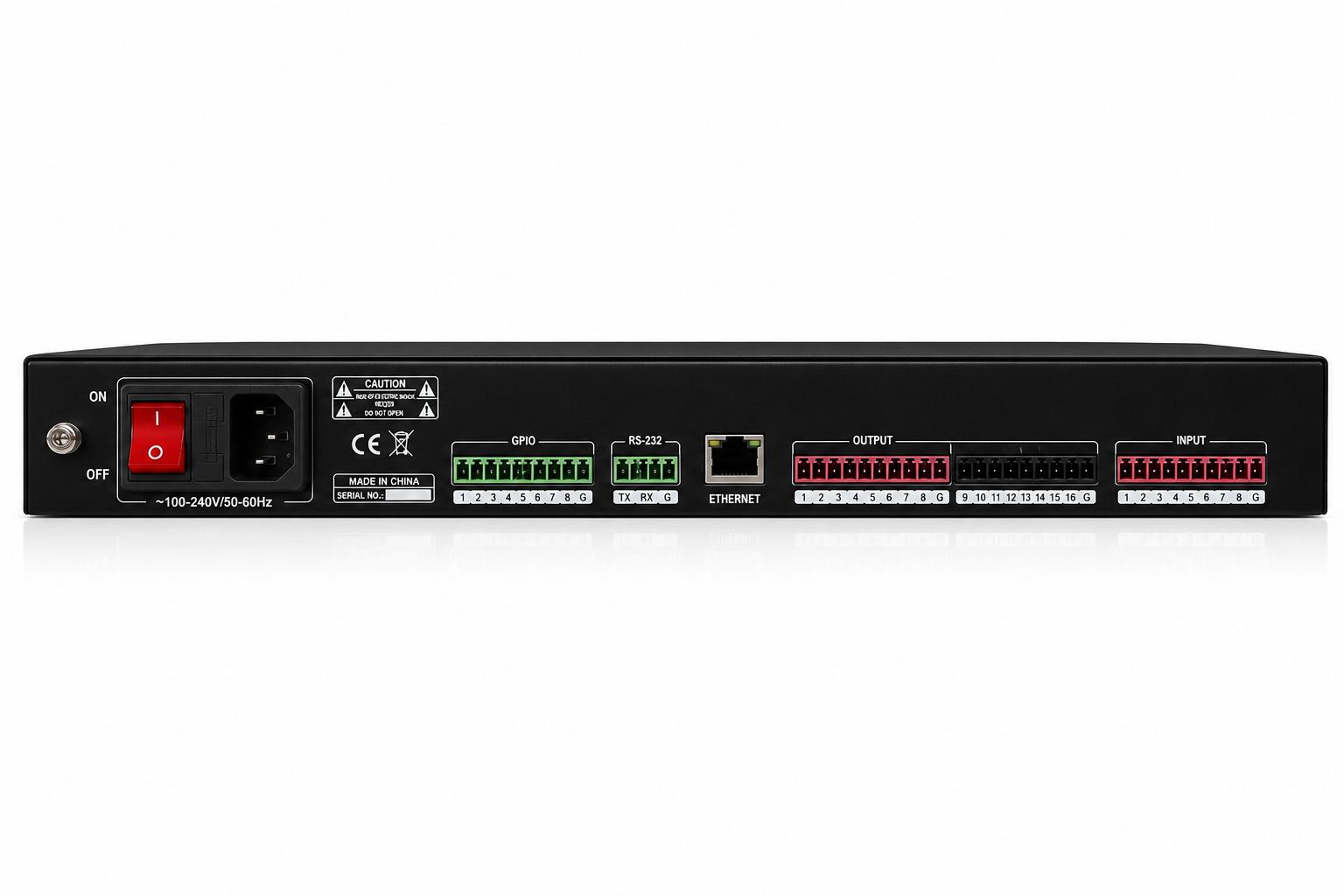

- Supports TCP/IP web control, RS232, RS485, and GPIO interfaces
- Supports up to 60 scene presets for quick configuration
Product Description
Specifications
Product Description

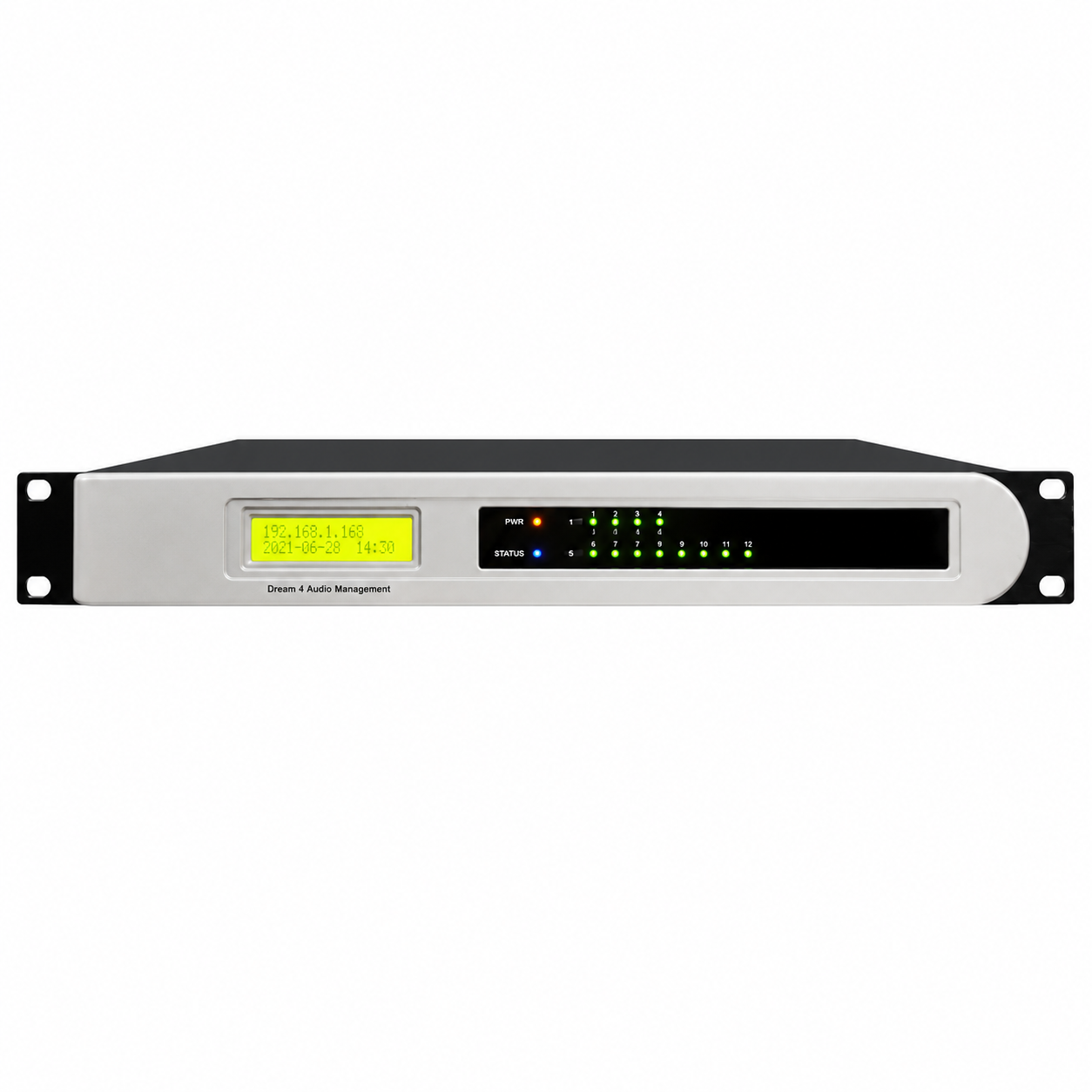

The CX6648 Conference Audio Processor is a professional digital audio processor designed to provide precise signal management and high-quality audio processing for conference systems, meeting rooms, remote video conferencing, auditoriums, theaters, churches, stadiums, and other professional AV installations. It provides 4 analog audio inputs and 8 analog audio outputs, allowing multiple microphones or audio sources to be processed and distributed to several amplifier or speaker channels.
The CX6648 uses a 40-bit floating-point DSP operating at 400MHz, together with 24-bit/48kHz AD/DA conversion, to provide detailed and reliable digital signal processing. Its DSP architecture includes input and output gain control, noise gate, equalization, matrix mixing, crossover, delay, limiter, compressor, and automatic gain control functions. These features allow the audio system to be carefully tuned according to the requirements of the conference room, speaker arrangement, microphones, and connected equipment.Specifications

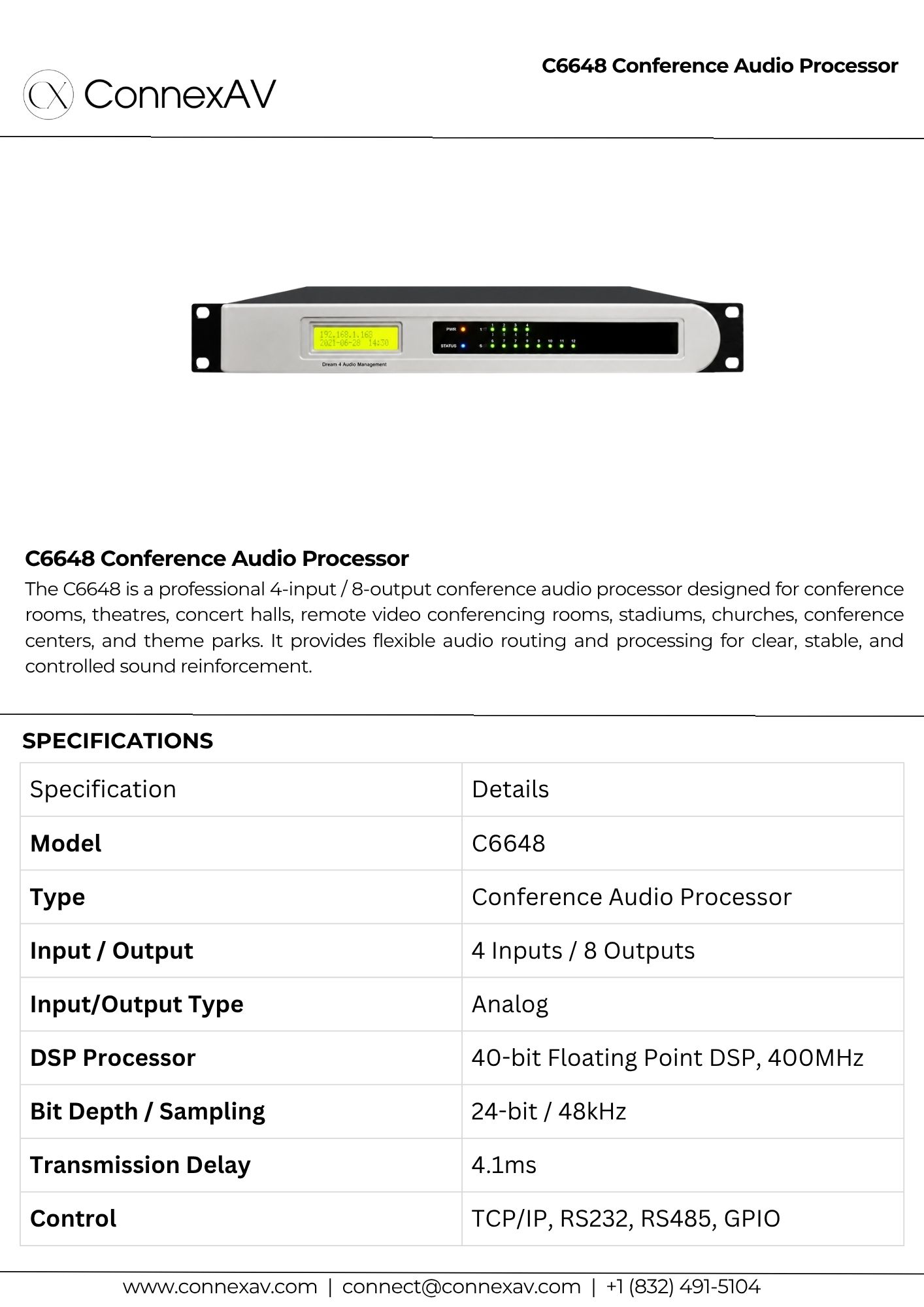

| Specification | Details |
|---|---|
| Model | CX6648 |
| Type | Conference Audio Processor |
| Input / Output | 4 Inputs / 8 Outputs |
| Input/Output Type | Analog |
| DSP Processor | 40-bit Floating Point DSP, 400MHz |
| Bit Depth / Sampling | 24-bit / 48kHz |
| Transmission Delay | 4.1ms |
| Control | TCP/IP, RS232, RS485, GPIO |
