CX1421A Active Line Array Speaker
- Compact active line array speaker system
- Designed for high power and high SPL output
- Equipped with 2 × 10″ woofers + 2 × 3″ tweeters
- Built-in Class-D independent power amplifier
- High peak-power switching power supply
- Durable marine-grade plywood cabinet
- High-quality aluminium alloy metal accessories
- Suitable for mobile professional applications
- Wide directivity for line array sound coverage
Product Description
Specifications
Product Description

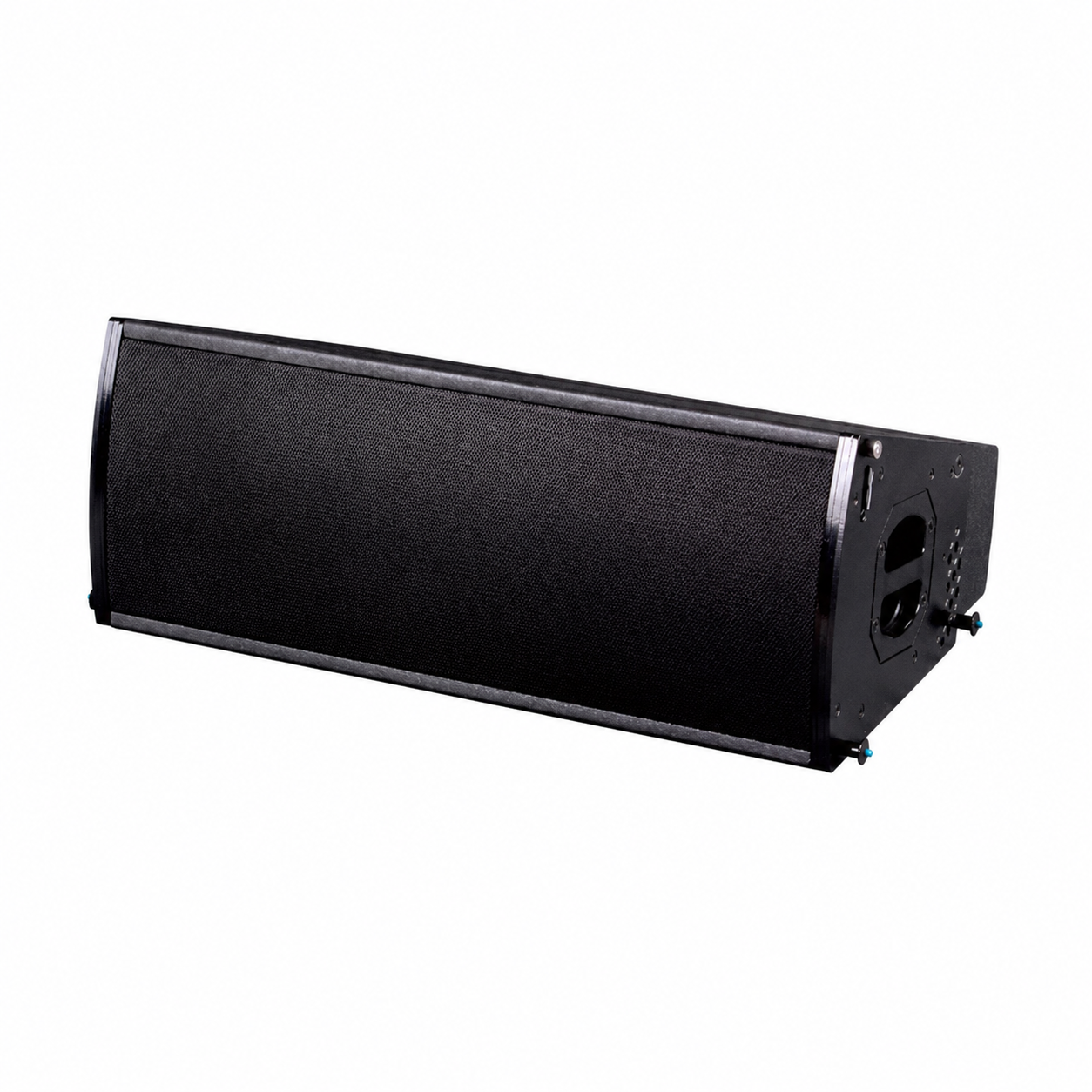

The CX1421A is a compact active line array speaker designed for high-power and high-SPL professional audio applications. It uses a dual 10-inch woofer and dual 3-inch tweeter structure, giving strong full-range sound output for stage, event, conference, and mobile sound systems.
The speaker cabinet is made from special marine-grade plywood for durability and reliability, while the metal accessories are made from high-quality aluminium alloy. It is powered by a high peak-power switching power supply and a Class-D independent power amplifier, making it suitable for mobile professional applications.
Specifications
| Specification | Details |
|---|---|
| Model | CX1421A |
| Type | Active Line Array Speaker |
| Unit Structure | 2 × 10″ Woofer + 2 × 3″ Tweeter |
| Frequency Response | 60Hz–20kHz |
| Sensitivity | 103±2dB |
| Maximum SPL | 131±2dB |
| Amplifier Power | 1000W |
| Weight | 28kg |
