CX206 Passive Line Array Full-Range Speaker
- Compact passive line array full-range speaker
- Equipped with 2 × 6.5″ LF + 1 × 1.75″ HF drivers
- Rated power of 300W
- Clear and balanced sound performance
- Precision crossover network for optimized acoustic output
- Quick angle-adjustment mechanism for flying or stacking
- High-density plywood cabinet construction
- Wear-resistant polyurea cabinet coating
- Suitable for auditoriums, multifunction halls, conferences, and indoor venues
Product Description
Specifications
Product Description

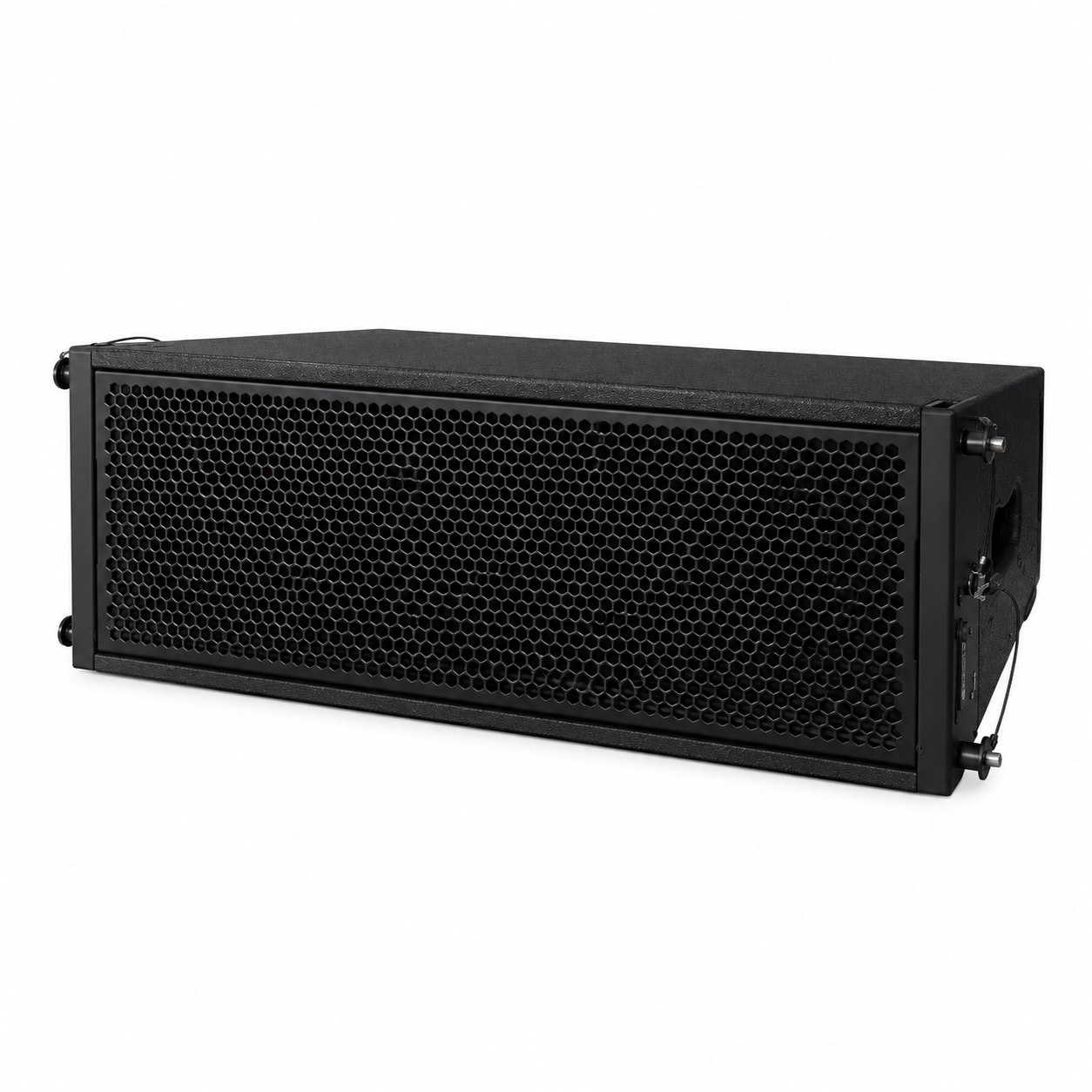

The CX206 is a compact passive line array full-range speaker designed for clear and balanced professional sound reinforcement. It is suitable for auditoriums, multifunction halls, conference venues, small to medium stages, mobile events, and fixed indoor audio installations.
Equipped with 2 × 6.5″ low-frequency drivers and 1 × 1.75″ high-frequency driver, the CX206 delivers precise vocal clarity, strong projection, and reliable full-range performance. Its high-density plywood cabinet, wear-resistant coating, and quick angle-adjustment design make it practical for flying or stacking multiple units in line array systems.

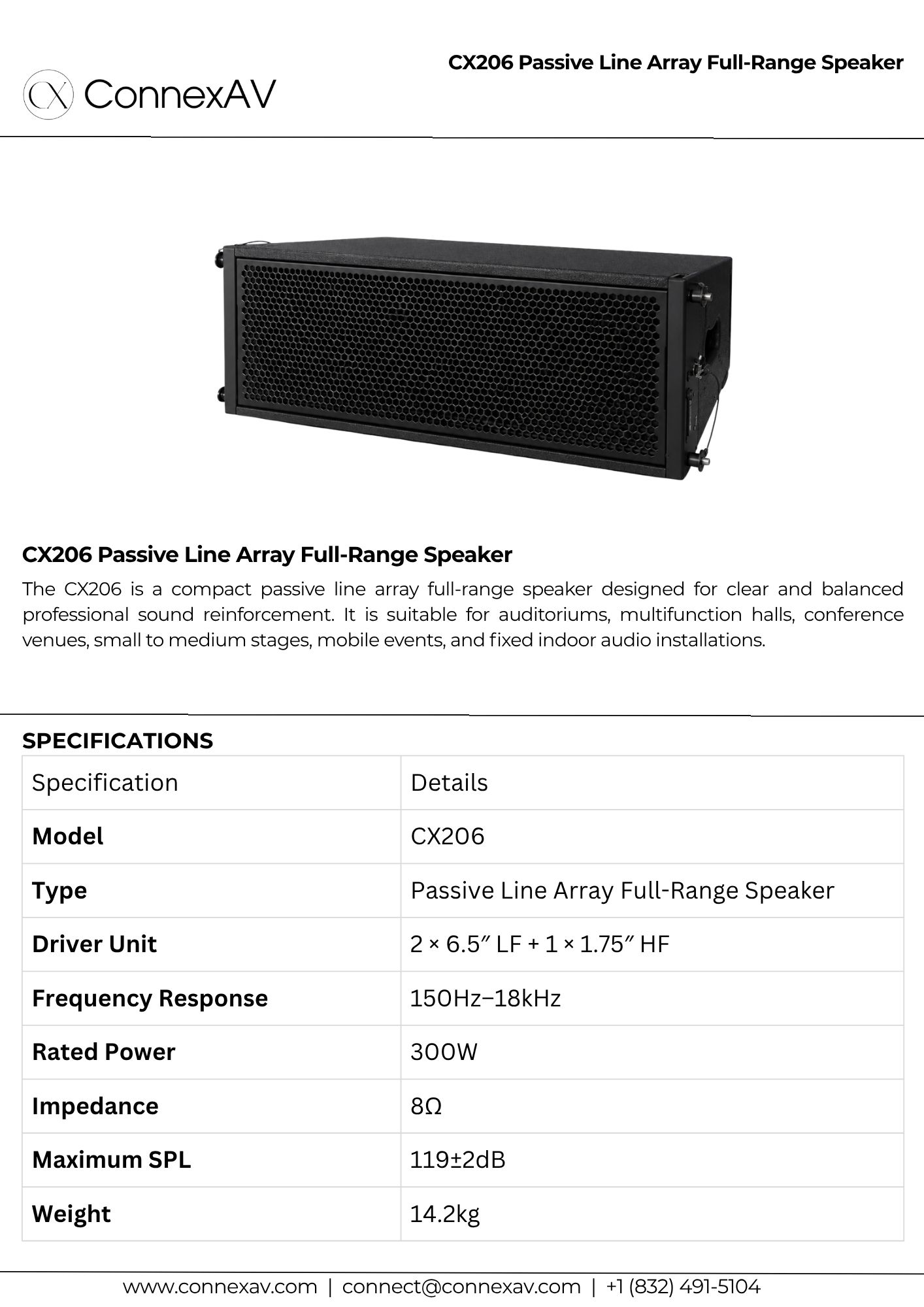

Specifications
| Specification | Details |
|---|---|
| Model | CX206 |
| Type | Passive Line Array Full-Range Speaker |
| Driver Unit | 2 × 6.5″ LF + 1 × 1.75″ HF |
| Frequency Response | 150Hz–18kHz |
| Rated Power | 300W |
| Impedance | 8Ω |
| Maximum SPL | 119±2dB |
| Weight | 14.2kg |
