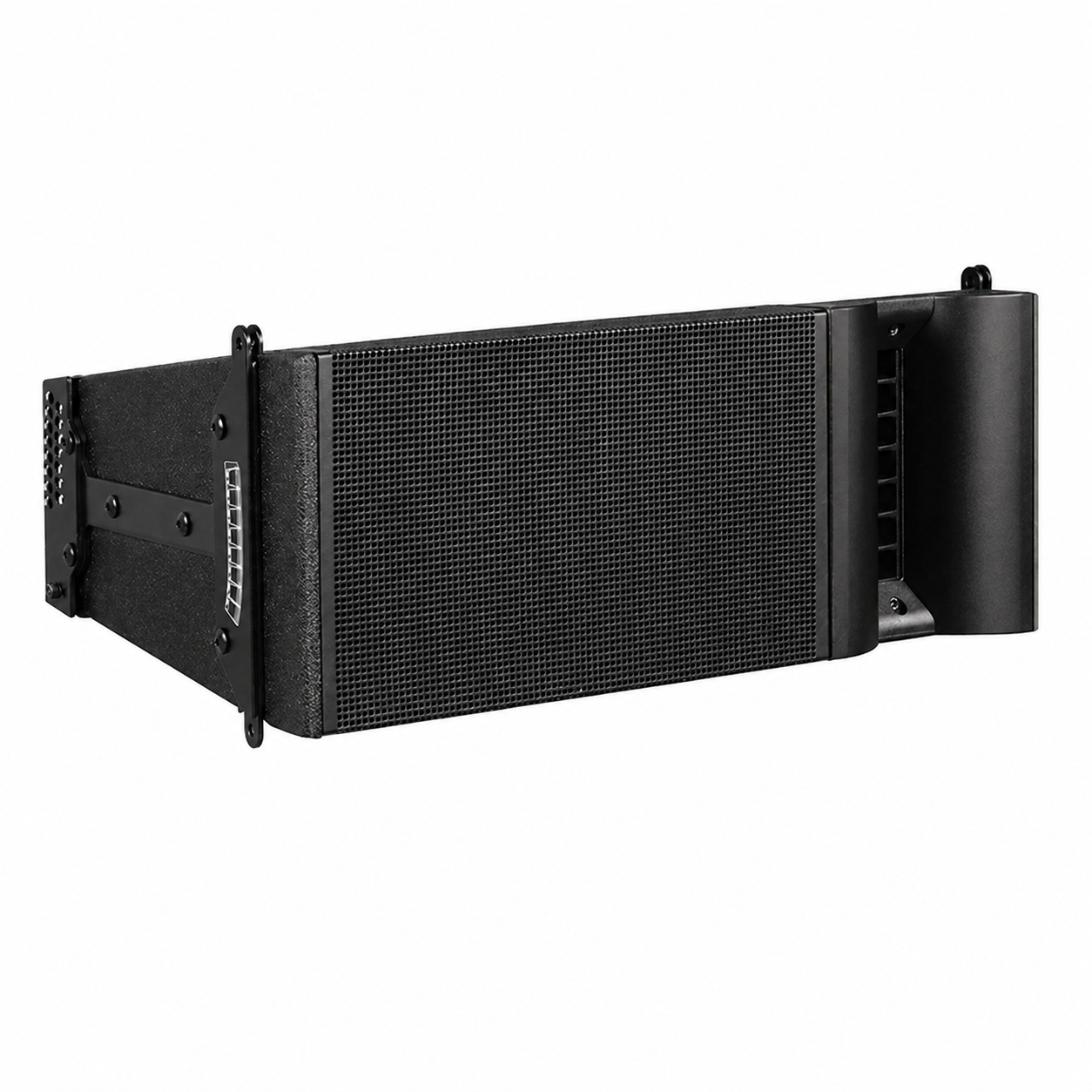

CX1408 Passive Line Array Loudspeaker
- Professional passive line array loudspeaker for sound reinforcement applications
- Line array design provides controlled and consistent sound coverage
- Suitable for both speech and music reproduction
- Passive configuration allows flexible selection of external amplification
- Can be combined with DSP processors for detailed system optimization

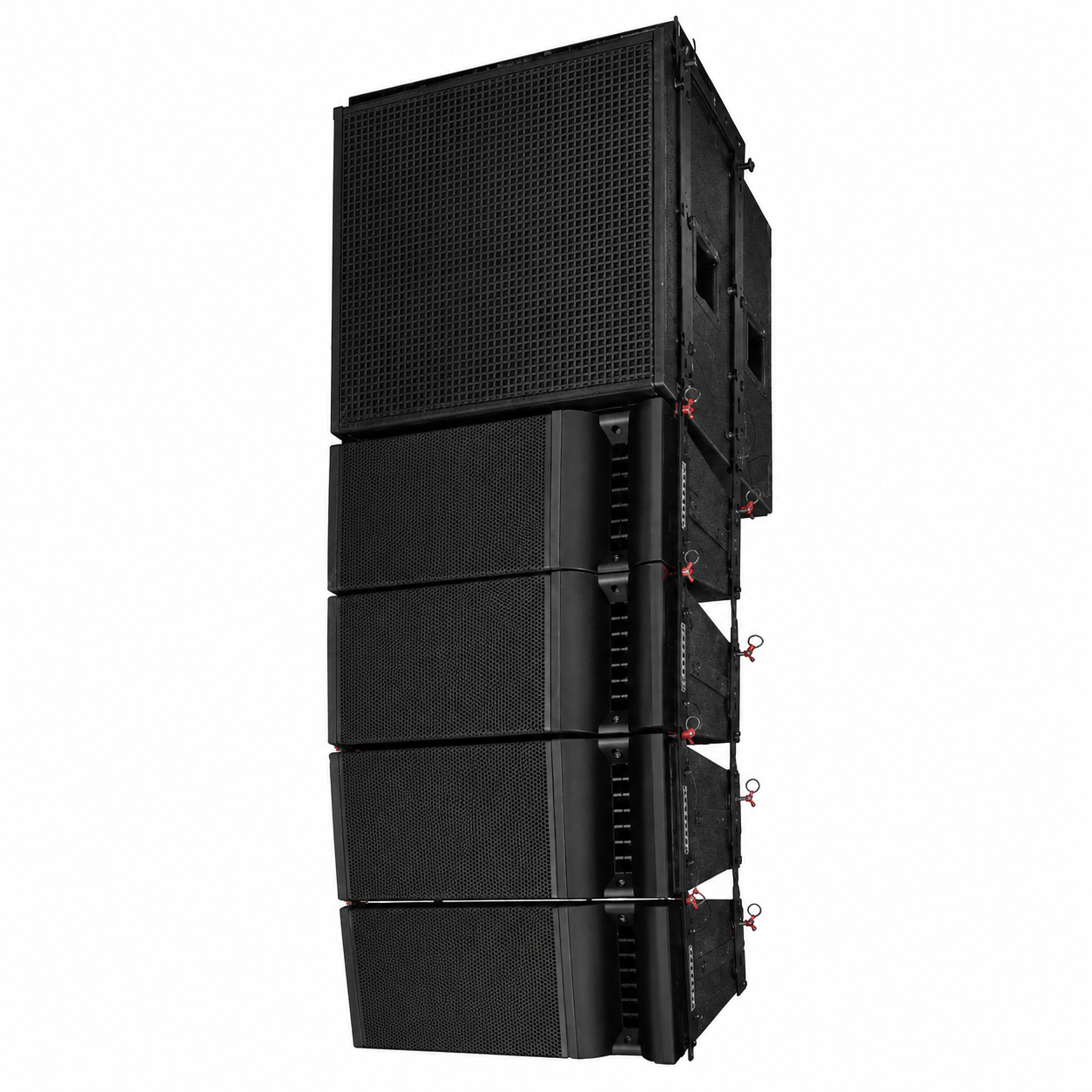

- Multiple units can be configured together for scalable sound reinforcement
- Designed for professional live sound and fixed-installation applications
- Suitable for integration with compatible subwoofers and professional audio equipment
- Ideal for concerts, theaters, auditoriums, churches, conferences, and entertainment venues
Product Description
Specifications
Product Description
The CX1408 is a professional passive line array loudspeaker designed for high-quality sound reinforcement in live events, entertainment venues, auditoriums, theaters, houses of worship, conference facilities, and other professional audio environments. Its line array configuration is designed to provide controlled sound projection and consistent coverage across a wide audience area, making it an effective solution for applications where both sound clarity and even distribution are important.
As a passive loudspeaker, the CX1408 requires an external power amplifier and can be combined with professional DSP processors to optimize the system for different venues and applications. This configuration provides installers and sound engineers with greater flexibility when selecting amplification, crossover, equalization, delay, and other system-processing parameters.
The CX1408 is designed to provide clear and powerful reproduction of both vocals and music, making it suitable for live performances, speeches, presentations, worship services, and entertainment programs. Its line array-oriented design allows multiple units to be combined when additional output and coverage are required, making the system scalable for different venue sizes.

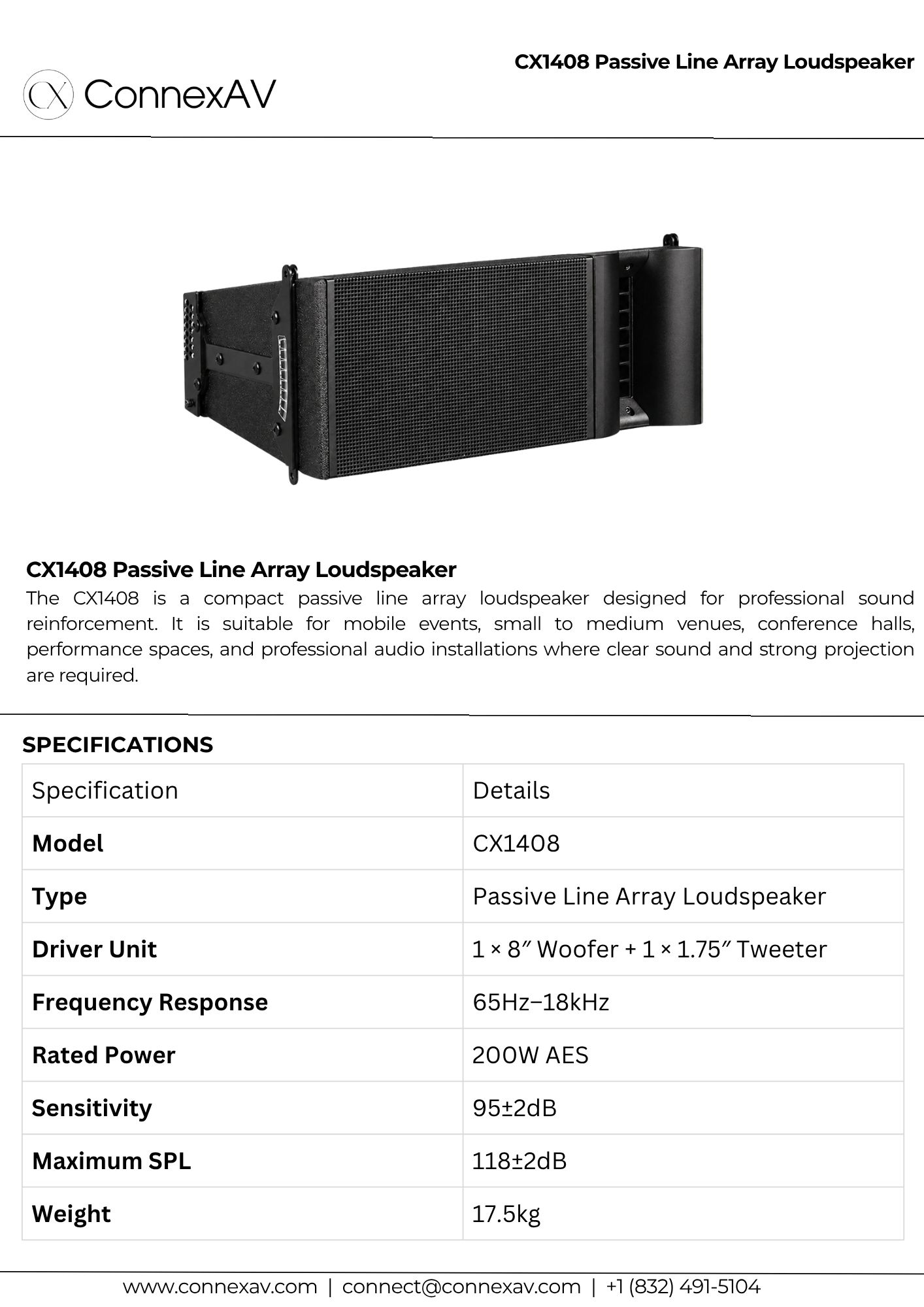

Specifications
| Specification | Details |
|---|---|
| Model | CX1408 |
| Type | Passive Line Array Loudspeaker |
| Driver Unit | 1 × 8″ Woofer + 1 × 1.75″ Tweeter |
| Frequency Response | 65Hz–18kHz |
| Rated Power | 200W AES |
| Sensitivity | 95±2dB |
| Maximum SPL | 118±2dB |
| Weight | 17.5kg |
