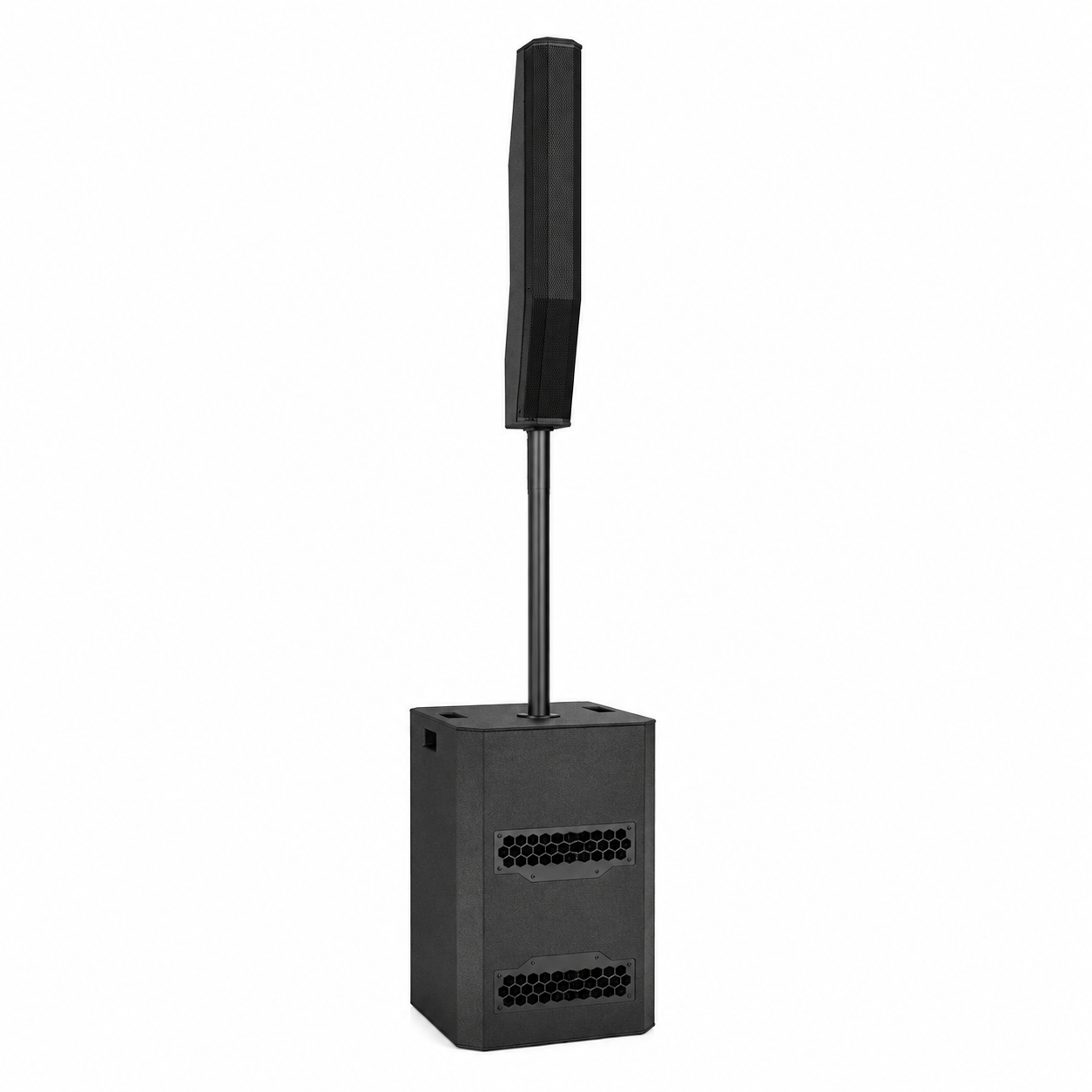

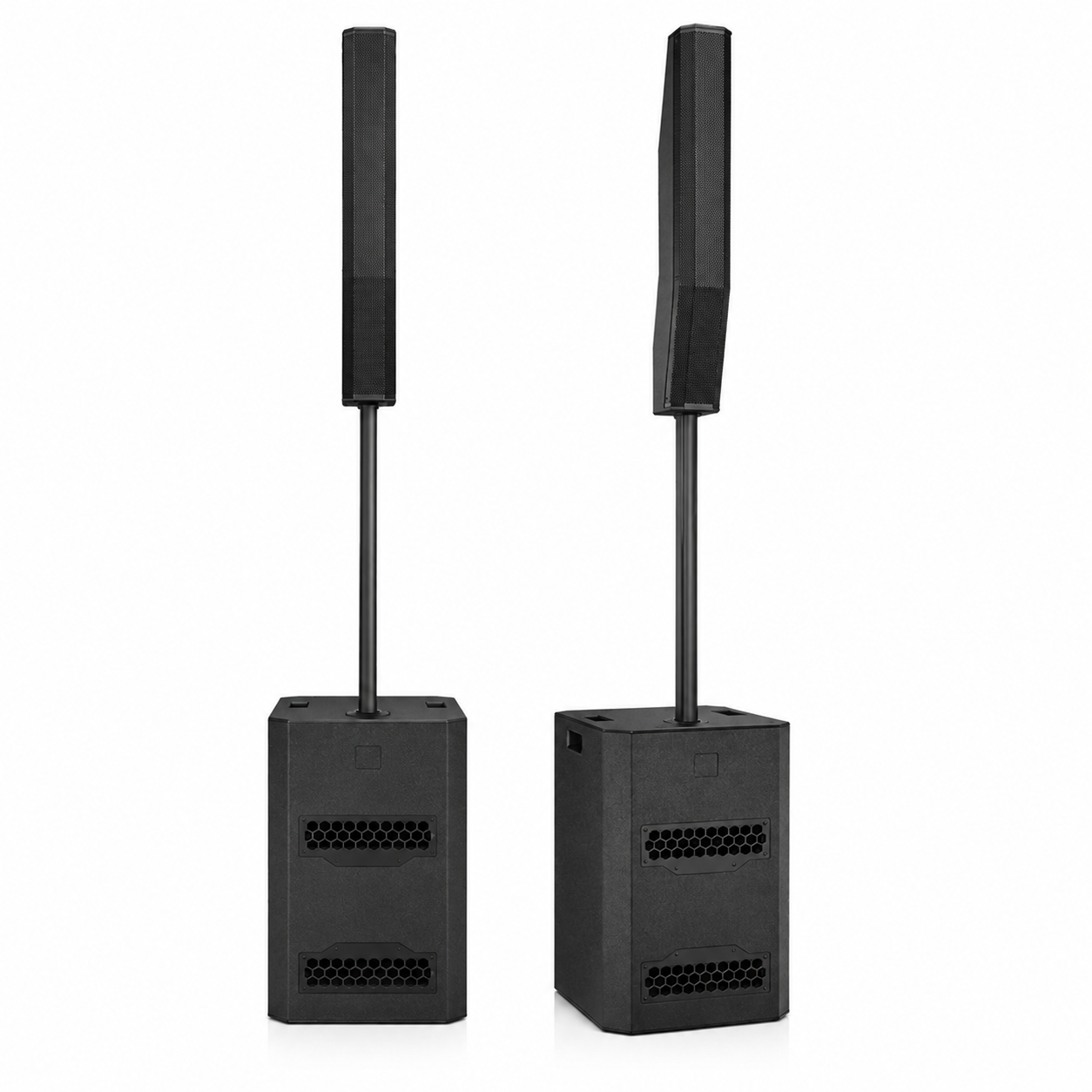

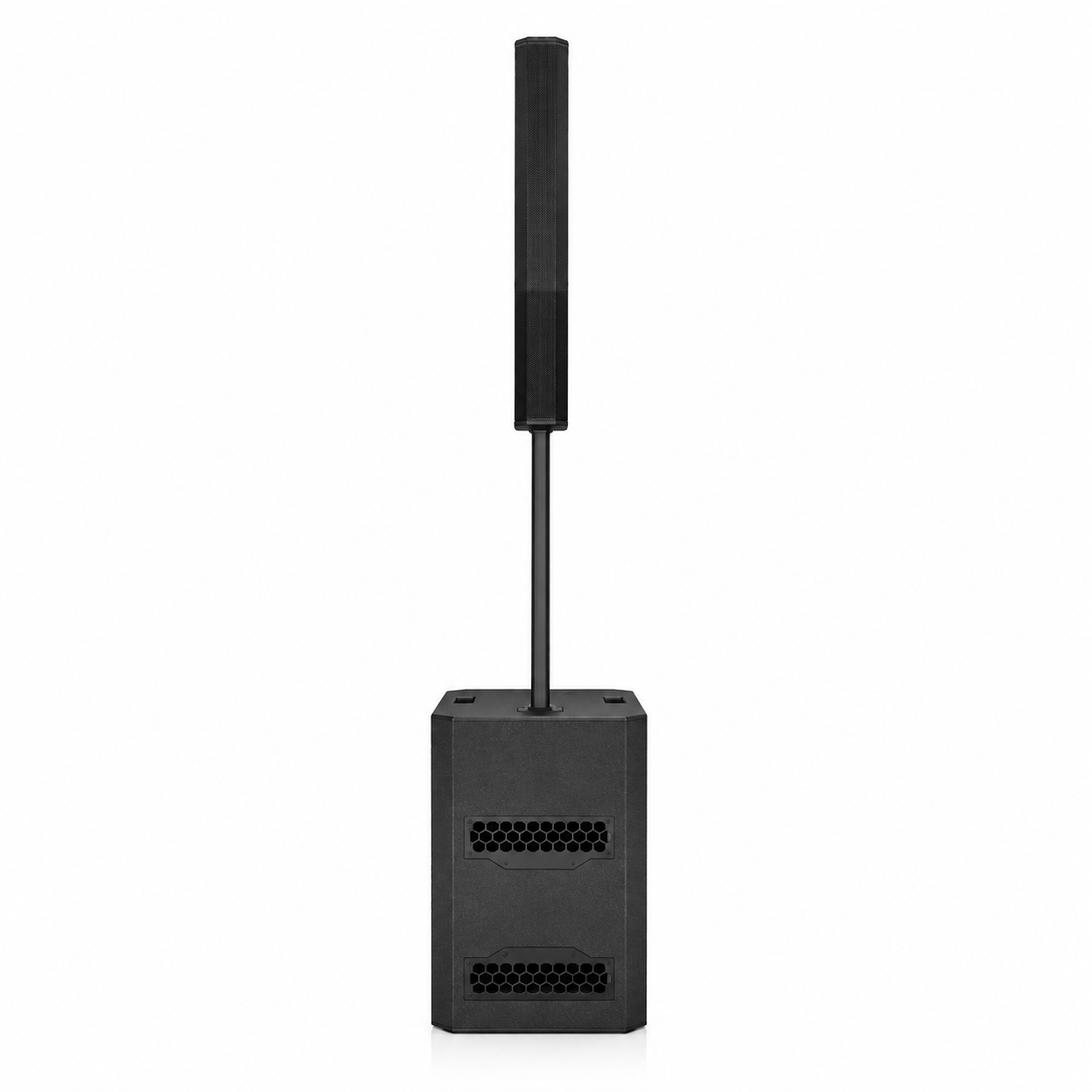

The CX0316 is a professional active column array speaker system with a 12-inch subwoofer, designed to deliver clear mid-high frequencies together with powerful low-frequency performance in a compact and portable format. The system combines a slim column speaker containing eight 3-inch full-range drivers with a dedicated 12-inch subwoofer and integrated amplification, providing an all-in-one solution for professional sound reinforcement. The column section is equipped with 8 × 3-inch full-range drivers, rated at 160W, with a frequency response of 98Hz–16kHz and a maximum SPL of 118dB. Its 100° horizontal × 20° vertical coverage provides broad horizontal sound distribution while maintaining controlled vertical dispersion, making it suitable for speech reinforcement and music playback. The system’s 12-inch subwoofer provides the low-frequency foundation, with 300W rated power, 38Hz–200Hz frequency response, and up to 121dB maximum SPL. Together, the column and subwoofer provide a fuller sound profile than a compact full-range speaker alone, making the system suitable for both speech and music applications.

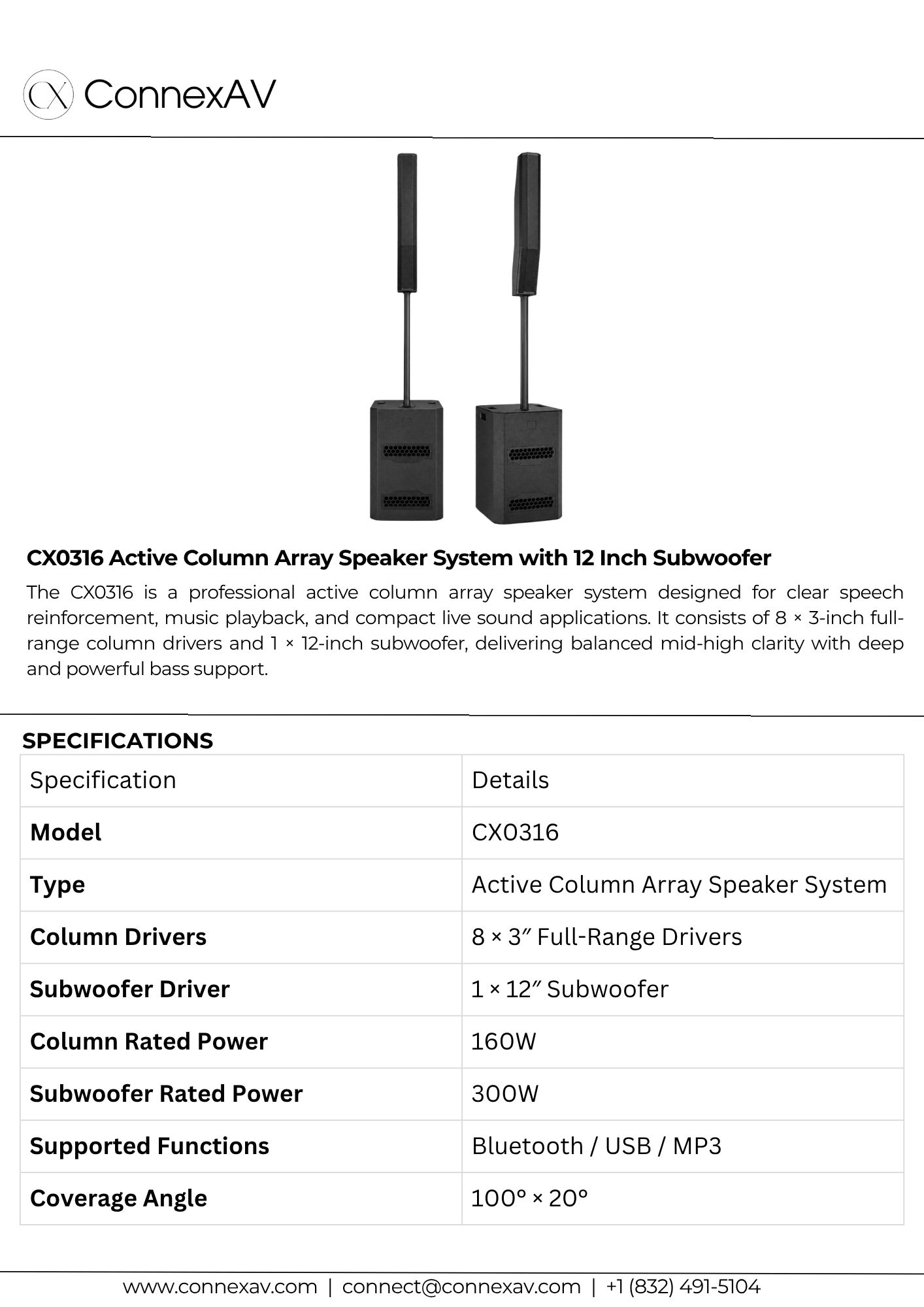

Specification	Details
Model	CX0316
Type	Active Column Array Speaker System
Column Drivers	8 × 3″ Full-Range Drivers
Subwoofer Driver	1 × 12″ Subwoofer
Column Rated Power	160W
Subwoofer Rated Power	300W
Supported Functions	Bluetooth / USB / MP3
Coverage Angle	100° × 20°
