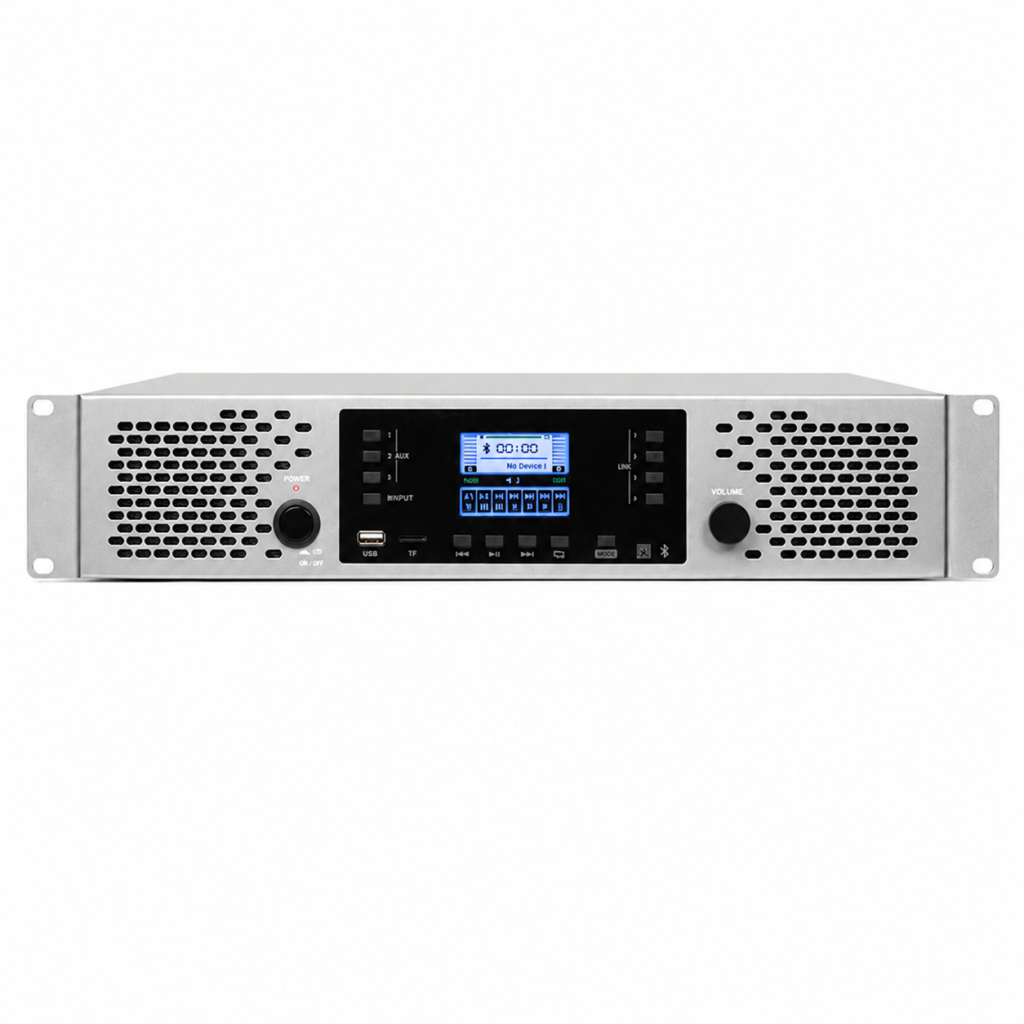

CX-MP6425 250W-500W Power Amplifier with DC 24V and Priority Input
Features
● Transformer isolated 100V, 70V, and 4Ω outputs, balanced, no grounding.
● 5 LED indicators for status display.
● XLR socket and 6.3 mm jack for amplifier link.
● Short circuit output protection & LED display.
● Series amplifiers with high output power are available.
● 240V AC power and 24V DC power working voltage.
The CX-MP6425 series is DC power amplifier developed for commercial and industrial public address applications. Rack mount design in 2U type with rated power of 250W/380W/500W. The CX-MP 6425 series is a 70V amplifier. Each channel supports both balanced and unbalanced line inputs. The balanced line output feeds another power amplifier while also ensuring that the signal is transmitted with less noise and over a longer distance. Installers can choose between 70V, 100V, and 4Ω speaker outputs to fit different speakers. A master volume control is provided. Clip, short circuit, high temperature, and overload are all part of the complete protection. There are indicators for power, signal, clip, protection, and temperature. This product is both the best and the most professional power amplifier.
| Model | CX-MP6425 | CX-MP6438 | CX-MP6450 |
| Rated Power | 250W | 380W | 500W |
| Input sensitivity | 1V | ||
| S/N Ratio | >90dB | ||
| Frequency Response | 80Hz-16kHz/±3dB | ||
| THD 4W/1kHz | <0.5 % | ||
| Cooling Style | 12V DC Fan | ||
| Indicators | Power: Red, Clip: Red”, Sound: Green, Protection: Red, Temperature: Orange | ||
| Protection | Turn on delay, thermal, DC fault, short circuit | ||
| 240V AC Fuse | F6AL | F8AL | F10AL |
| 24V DC Fuse | FB15AL/FC10AL | FB/FC: 15AL | FB/FC: 20AL |
| Power Supply | AC220V-240V/50-60Hz 24V DC | ||
| Power Consumption | 500W | 760W | 1000W |
| Dimension | 88´483´390mm | ||
| Gross Weight | 17kg | 19.3kg | 20.6kg |
| Net Weight | 16kg | 18.3kg | 19.5kg |
