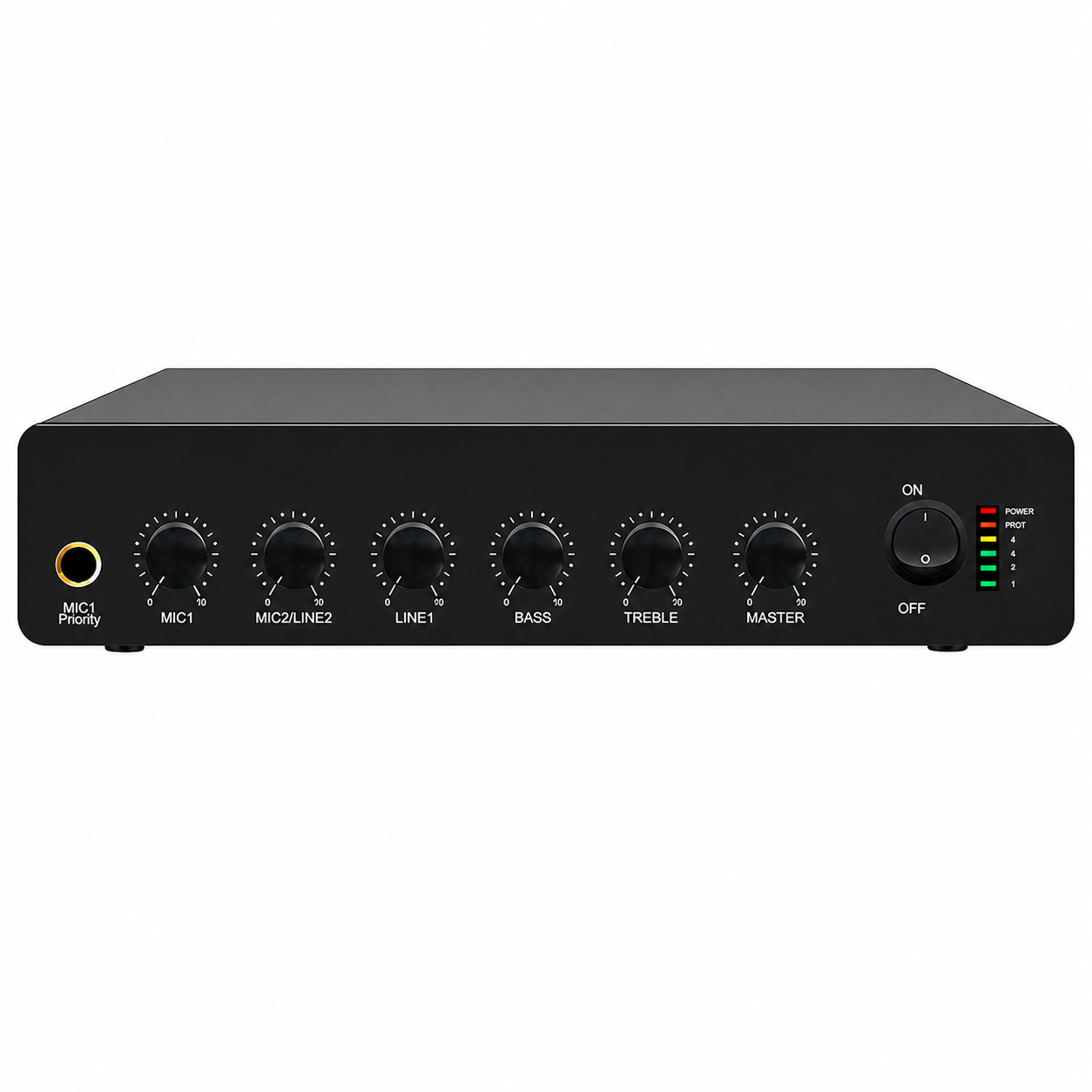

CX-MP60 60W Ultrathin Mixer Amplifier
- Professional 60W ultrathin mixer amplifier
- Supports 70V / 100V / 4–16Ω speaker outputs
- Includes 2 microphone inputs for paging and speech use
- MIC1 priority function for important announcements
- AUX and EMC input support for external audio sources
- Phantom power switch for compatible microphone use
- Bass and treble tone control for sound adjustment
- Supports AC 110–240V and DC 24V power operation
- Ideal for classrooms, offices, shops, restaurants, meeting rooms, and small PA systems
The CX-MP60 is a compact 60W ultrathin mixer amplifier designed for public address, background music, paging, and small commercial sound reinforcement systems. It is suitable for classrooms, offices, retail stores, restaurants, meeting rooms, small halls, reception areas, and commercial buildings. With its slim body design and integrated mixer-amplifier structure, it provides a space-saving audio solution for fixed installations where simple operation and reliable performance are required.

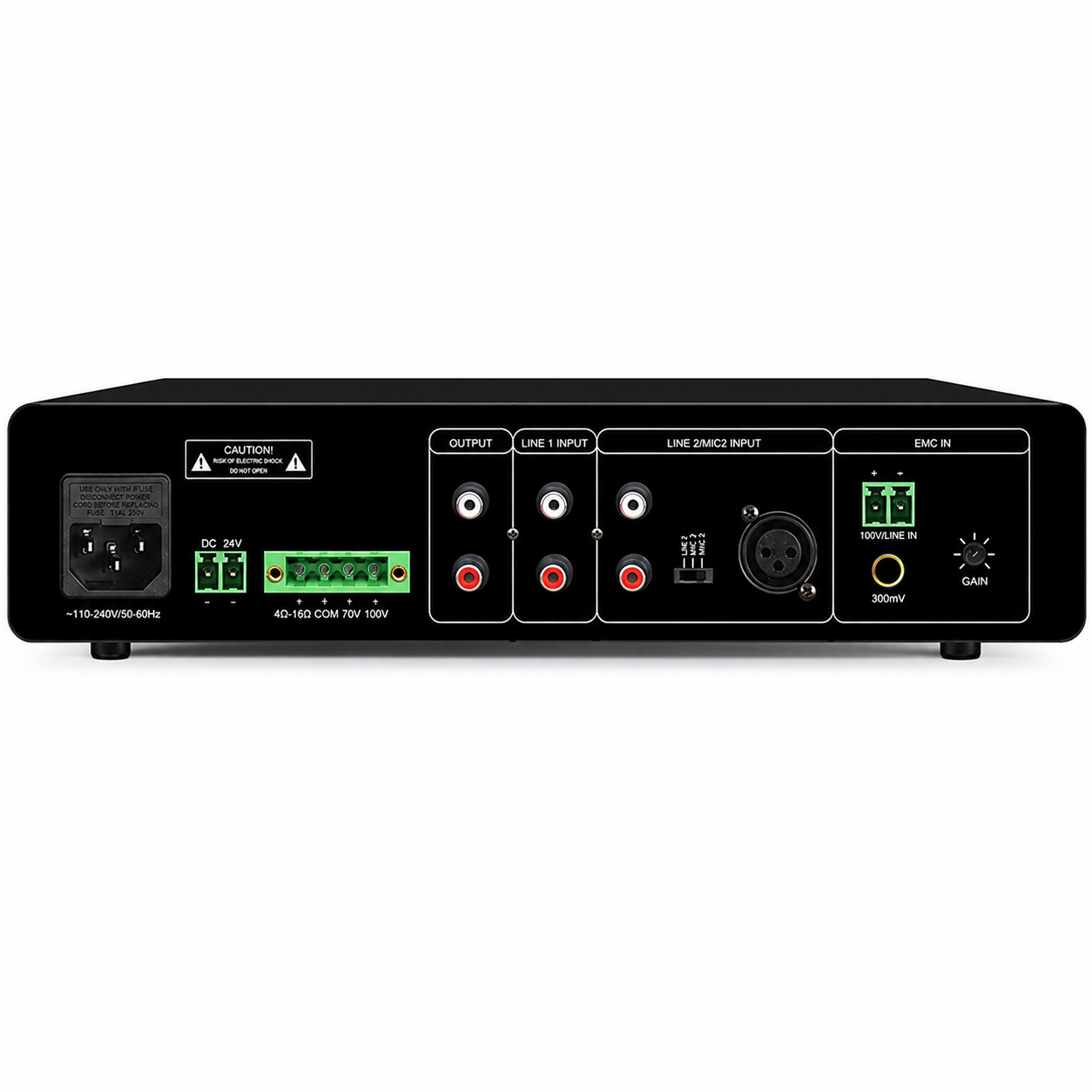

This amplifier supports 70V / 100V constant-voltage output and 4–16Ω speaker output, allowing flexible connection for both distributed PA speakers and low-impedance speaker systems. It includes 2 microphone inputs, AUX and EMC input support, MIC1 priority function, phantom power switch, bass and treble tone control, AUX output, and AC 110–240V plus DC 24V power operation. With compact size, low power consumption, and professional PA compatibility, the CX-MP60 is a practical choice for small to medium audio projects.
| Specification | Details |
|---|---|
| Model | CX-MP60 |
| Type | Ultrathin Mixer Amplifier |
| Rated Power | 60W |
| Speaker Output | 70V / 100V / 4–16Ω |
| Input Sensitivity | MIC 5mV / AUX & EMC 775mV |
| Frequency Response | MIC 100Hz–10kHz / AUX 80Hz–16kHz |
| Tone Control | Bass ±10dB / Treble ±10dB |
| Power Supply | AC 110–240V / 50–60Hz + DC 24V |
