CX-MP35 35W Ultrathin Digital Mixer Amplifier
- Professional 35W ultrathin digital mixer amplifier
- Compact 1U mini-size design for space-saving installation
- Supports 70V / 100V / 4–16Ω speaker outputs
- Includes AUX 1–2 RCA inputs
- Provides RCA AUX output for external audio connection

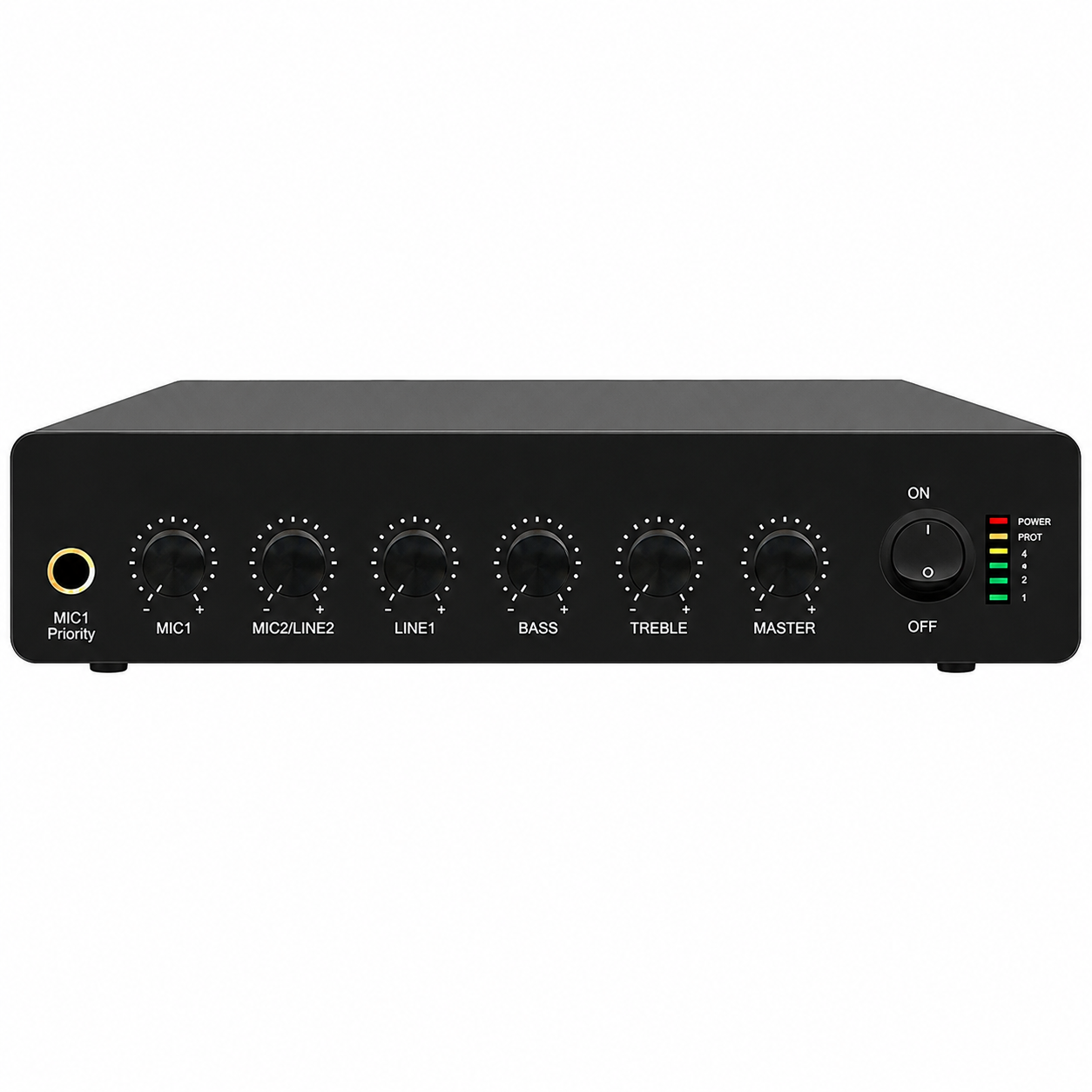

- MIC1 front-panel input with priority and muting function

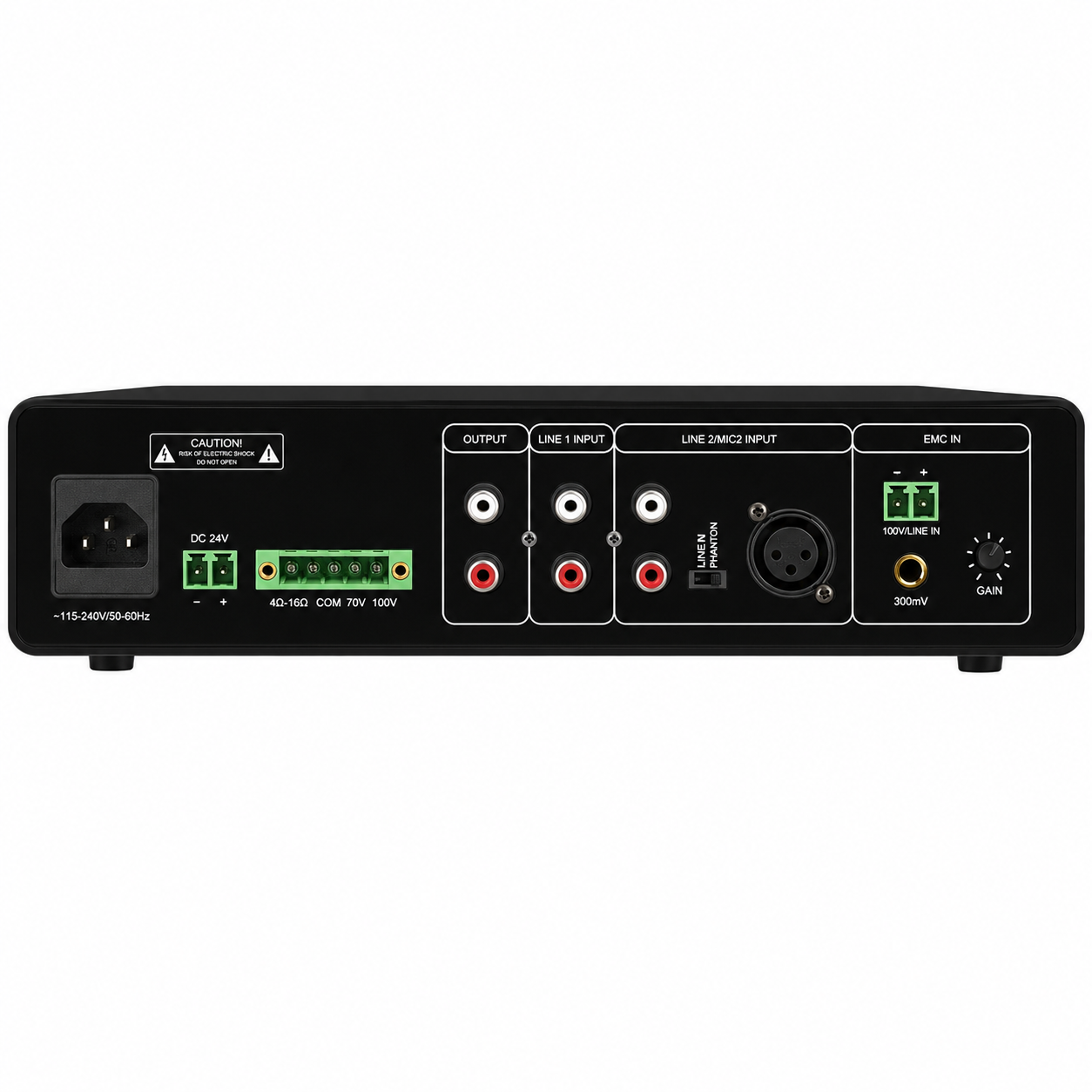

- MIC2 rear balanced XLR input for microphone connection
- Built-in EMC input with priority function
- Supports AC 110–240V and DC 24V power operation
The CX-MP35 is a compact 35W ultrathin digital mixer amplifier designed for public address, background music, paging, and small commercial sound reinforcement systems. It is suitable for classrooms, offices, retail stores, cafés, restaurants, meeting rooms, reception areas, small halls, and commercial buildings. With its 1U mini-size design, it provides a space-saving amplifier solution for fixed installations where simple control, flexible speaker connection, and reliable daily performance are required.
This amplifier supports 70V / 100V constant-voltage output and 4–16Ω speaker output, making it suitable for both distributed PA speaker systems and low-impedance speakers. It includes AUX inputs, AUX output, MIC1 front-panel input with priority and muting, MIC2 rear balanced XLR input, EMC input, and AC/DC power support. With priority level EMC > MIC1 > others, compact structure, and 35W rated output, the CX-MP35 is a practical choice for small PA and business audio installations.
| Specification | Details |
|---|---|
| Model | CX-MP35 |
| Type | Ultrathin Digital Mixer Amplifier |
| Rated Power | 35W |
| Speaker Output | 70V / 100V / 4–16Ω |
| Priority Level | EMC > MIC1 > Others |
| Frequency Response | 80Hz–16kHz |
| Dimensions | 250 × 205 × 44mm |
| Power Supply | AC 110–240V + DC 24V |
