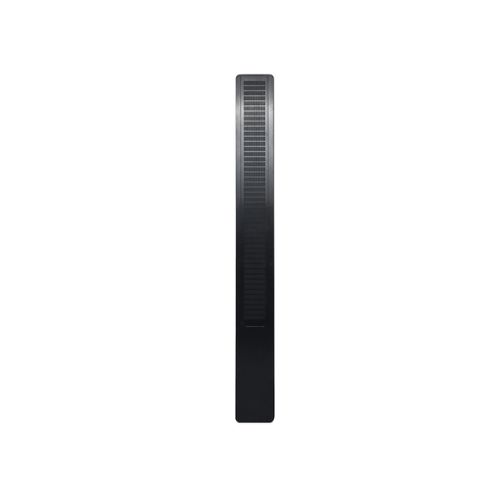

CX-LAS1UT/S2UT/S3UT Full Range point source – Ultra Slim speakers
- Excellent Directivity: Clear and immersive sound from any position, creating a “full space, no distance” experience.
- Long Propagation Distance: Flat diaphragm design minimizes sound attenuation for wider coverage.
- Low Distortion: Minimal amplitude reduces nonlinear distortion — compact yet powerful.
- Ultra-thin & Space-saving: Slim design fits anywhere without compromising sound or aesthetics.
- Clear & Natural Sound: Excellent transient response with a unique “invisible sound source” effect.
- Flexible Design: Customizable shapes and artistic surfaces to meet diverse aesthetic and functional needs.

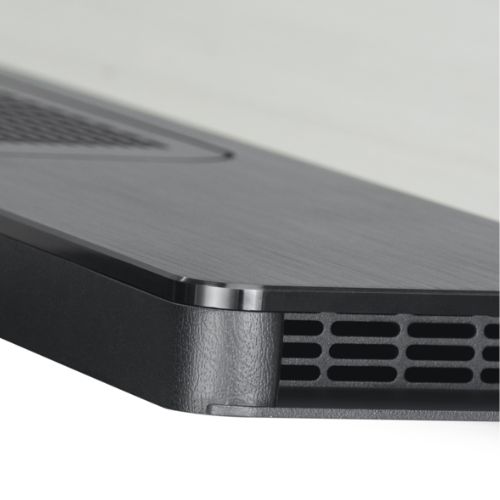

- Compact Size: Breakthrough ultra-thin design surpassing traditional speaker thickness limits.
Ultra-thin Series Speakers combine modern, stylish design with outstanding sound quality. Featuring an ultra-slim, wall-mounted enclosure, these speakers seamlessly integrate into contemporary home and commercial interiors, doubling as elegant art pieces that naturally complement any décor.
At the core of the ultra-thin series is the exclusively patented “Super Speaker Unit”, independently developed and recognized with five exclusive patents. Despite their compact form factor, these speakers deliver an extended frequency response and deep bass, offering crystal-clear sound, excellent transient response, low distortion, precise directivity, and long-range sound projection.
Crafted from lightweight and flexible materials, the ultra-thin design achieves a perfect harmony of aesthetics and acoustics, making it an ideal solution for high-end conference rooms, luxury hotels, and premium business reception areas where both design and audio performance are essential.
Model | CX-LAS3UT | CX-LAS2UT | CX-LAS1UT |
---|---|---|---|
Sensitivity | 87dB | 91dB | 91dB |
Rated Power | 50W | 100W | 150W |
Frequency Response | 145Hz ~ 20kHz | 125Hz ~ 20kHz | 125Hz ~ 20kHz |
Directivity | 120°H x 120°V | 120°H x 120°V | 120°H x 120°V |
Rated Impedance | 4Ω | 8Ω | 6Ω |
Driver | 2×4Ω, Super speaker unit 1×8Ω, Dome tweeter | 4×4Ω, Super speaker unit 1×8Ω, Dome tweeter | 6×4Ω, Super speaker unit 2×8Ω, Dome tweeter |
Cabinet Material | Aluminum (panel) + MDF wood frame + iron (back panel) | ||
Product Dimensions | H600mm × W115mm × D26mm | H950mm × W135mm × D26mm | H1190mm × W135mm × D26mm |
Packing Dimensions | H655mm × W190mm × D100mm | H1005mm × W210mm × D100mm | H1250mm × W210mm × D100mm |
Net Weight | 2.4KG | 4.2KG | 5.6KG |
Gross Weight | 3.0KG | 5.1KG | 7KG |
Installation | Factory standard with U-type snap-on wall mounting |
