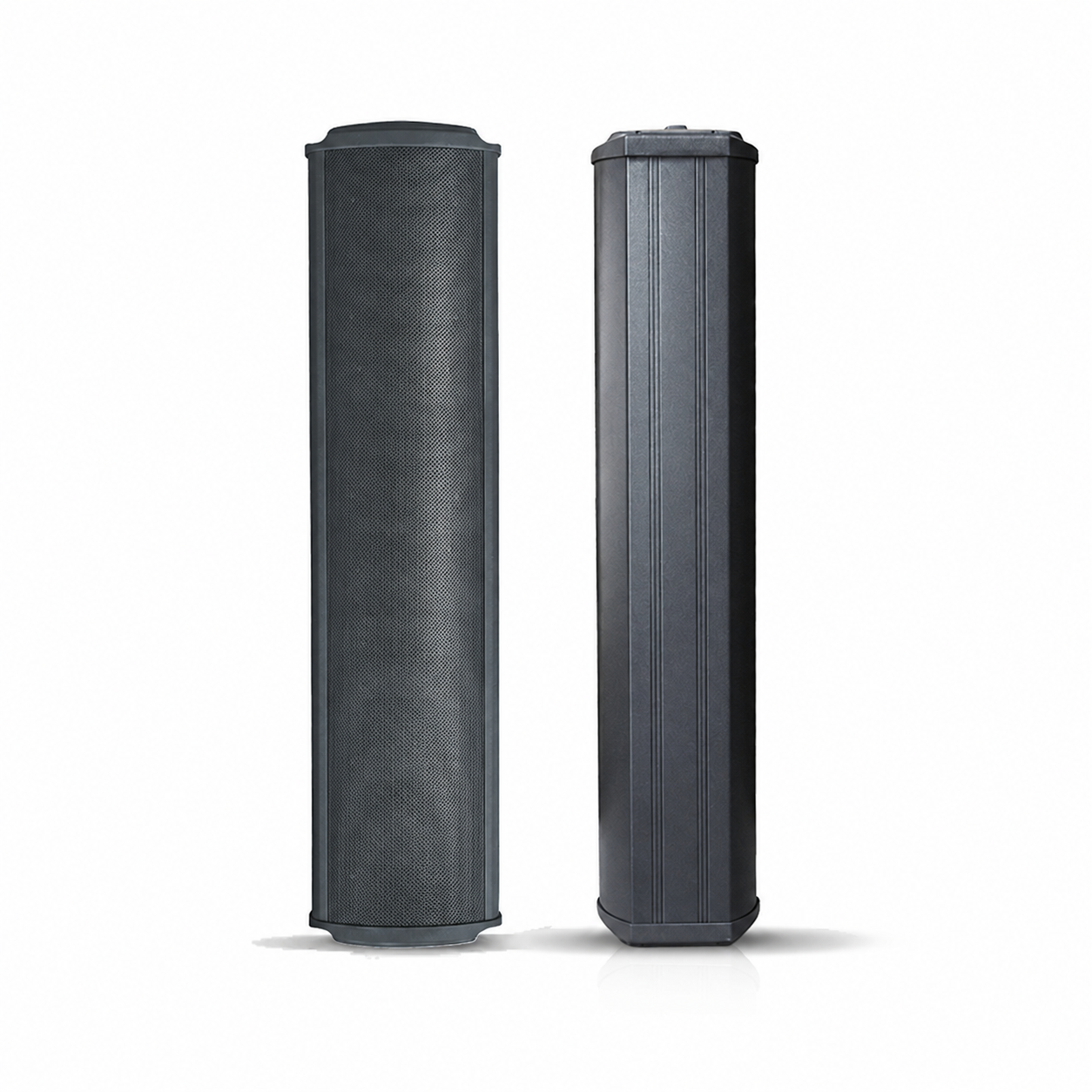

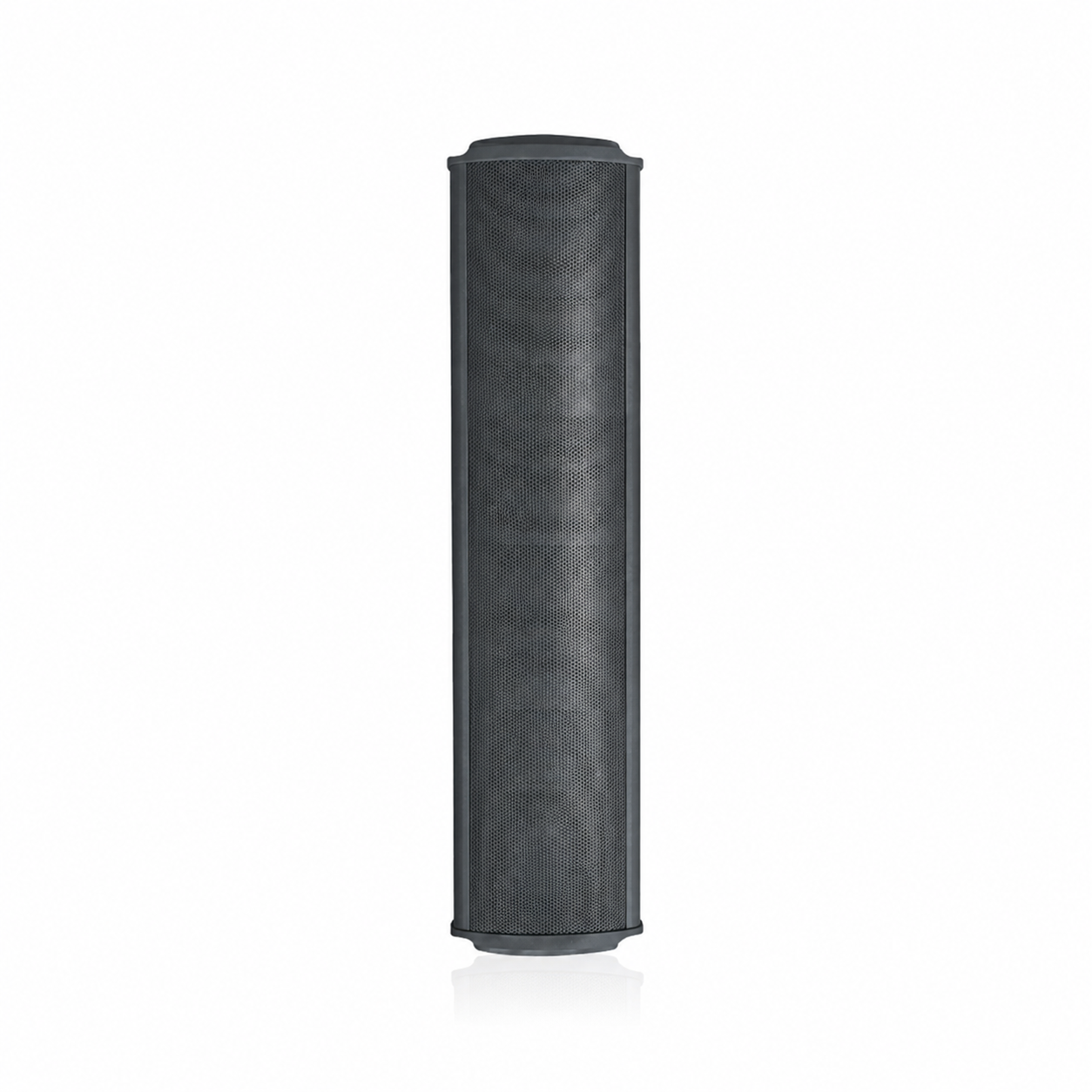

CX-DSP8116 Outdoor Waterproof Column Loudspeaker
- Professional outdoor waterproof column loudspeaker
- Rated power of 120W RMS
- Built-in 70V / 100V transformer
- Equipped with 4 × 6.5″ woofers + 1 × 1″ tweeter
- Wide frequency response from 90Hz to 16kHz
- High sensitivity for strong sound output
- Weatherproof aluminium enclosure for outdoor use
- Integrated sealing design helps reduce air leakage and resonance
- Suitable for stations, malls, factories, schools, parks, airports, and public areas
The CX-DSP8116 is a professional outdoor waterproof column loudspeaker designed for clear voice reproduction, background music, paging, and public address applications in outdoor and demanding environmental conditions. Its column-style acoustic design provides controlled sound distribution and is particularly suitable for installations where clear speech and consistent coverage are required over open or semi-open areas.
The loudspeaker is designed for use with 70V/100V distributed public address systems, making it easy to integrate with compatible mixer amplifiers, power amplifiers, and zone-based PA controllers. Its weather-resistant construction helps protect the speaker against moisture and outdoor exposure, making it suitable for applications such as schools, campuses, parks, hotels, resorts, shopping areas, factories, transportation facilities, sports grounds, and public spaces.
The CX-DSP8116 combines a practical column enclosure with professional PA performance, allowing it to deliver intelligible announcements and background music while maintaining a clean and unobtrusive appearance. Its robust construction makes it suitable for permanent outdoor installations where durability, reliable operation, and consistent sound coverage are important.
| Specification | Details |
|---|---|
| Model | CX-DSP8116 |
| Type | Outdoor Waterproof Column Loudspeaker |
| Speaker Unit | 6.5″ × 4 + 1″ × 1 |
| Rated Power | 120W RMS |
| Line Voltage | 70V / 100V |
| Frequency Response | 90Hz–16kHz |
| Sensitivity | 94dB |
| Maximum SPL | 115dB |
