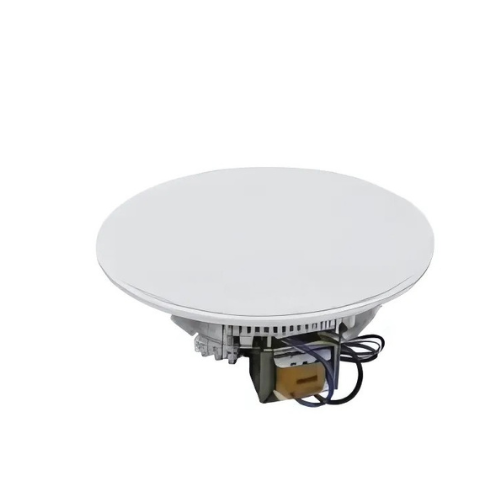

CX-DSP7011 6.5 Inch Frameless 10W Ceiling Speaker with Transfomer
● Made from high-quality, UV-resistant engineering plastic for long-lasting durability and modern appearance
● Protective grille design prevents intrusion from pests such as roaches and rats
● High-power output (6–10W) ensures clear, powerful sound with extended service life
● Supports both 70V and 100V input options for compatibility with various PA system setups
● Frequency response range of 120Hz to 16kHz, maximum SPL of 92±2dB, high sensitivity of 90±2dB, and low distortion under 1.5%
● Weighs 0.9kg and includes mounting clamps for secure installation
● Ceiling cutout size: Φ165mm–170mm
Product Description
Specifications
Product Description
The DSP7011 is a surface-mounted ceiling speaker equipped with a built-in 70V/100V transformer. This high-voltage, low-current transmission system enables efficient long-distance signal delivery and allows multiple speakers to be connected in parallel without signal loss.
Constructed from high-quality engineering plastic, the speaker is durable, resistant to deformation, and retains its appearance over time without fading. Installation is quick and secure thanks to its robust mounting clips.
The DSP7011 is an excellent solution for a wide range of indoor and semi-outdoor environments such as schools, gyms, public halls, parks, parking structures, train stations, airports, residential complexes, and shopping malls.
Constructed from high-quality engineering plastic, the speaker is durable, resistant to deformation, and retains its appearance over time without fading. Installation is quick and secure thanks to its robust mounting clips.
The DSP7011 is an excellent solution for a wide range of indoor and semi-outdoor environments such as schools, gyms, public halls, parks, parking structures, train stations, airports, residential complexes, and shopping malls.
Specifications
| Model | CX-DSP7011 | |
| Frequency Range | 120Hz -16kHz | |
| Rated Voltage | 70V | 6W/10W |
| 100V | 10W | |
| Sensitivity (1m, 1W) | 90dB±2dB | |
| Max. SPL(1m) | 92dB±2dB | |
| Input Voltage | 70V/100V optional | |
| RMS | 10W | |
| Dimension | φ185mm×74mm | |
| Weight | 0.9kg | |
