CX-4240 + CX-15SUB Multipurpose Portable Column Array Speaker System
- Multipurpose portable column array speaker system
- Includes 2 × CX-4240 column speakers + 1 × CX-15SUB active subwoofer
- CX-4240 uses 4 × 4.5″ full-range drivers per column
- CX-15SUB uses 1 × 15″ bass driver
- Active subwoofer with built-in DSP digital signal processing
- Clear and bright sound quality for voice and music
- Strong bass performance from the 15″ subwoofer
- Easy and convenient installation for portable use
- Suitable for conferences, halls, live events, worship spaces, malls, airports, and lecture rooms
Product Description
Specifications
Product Description

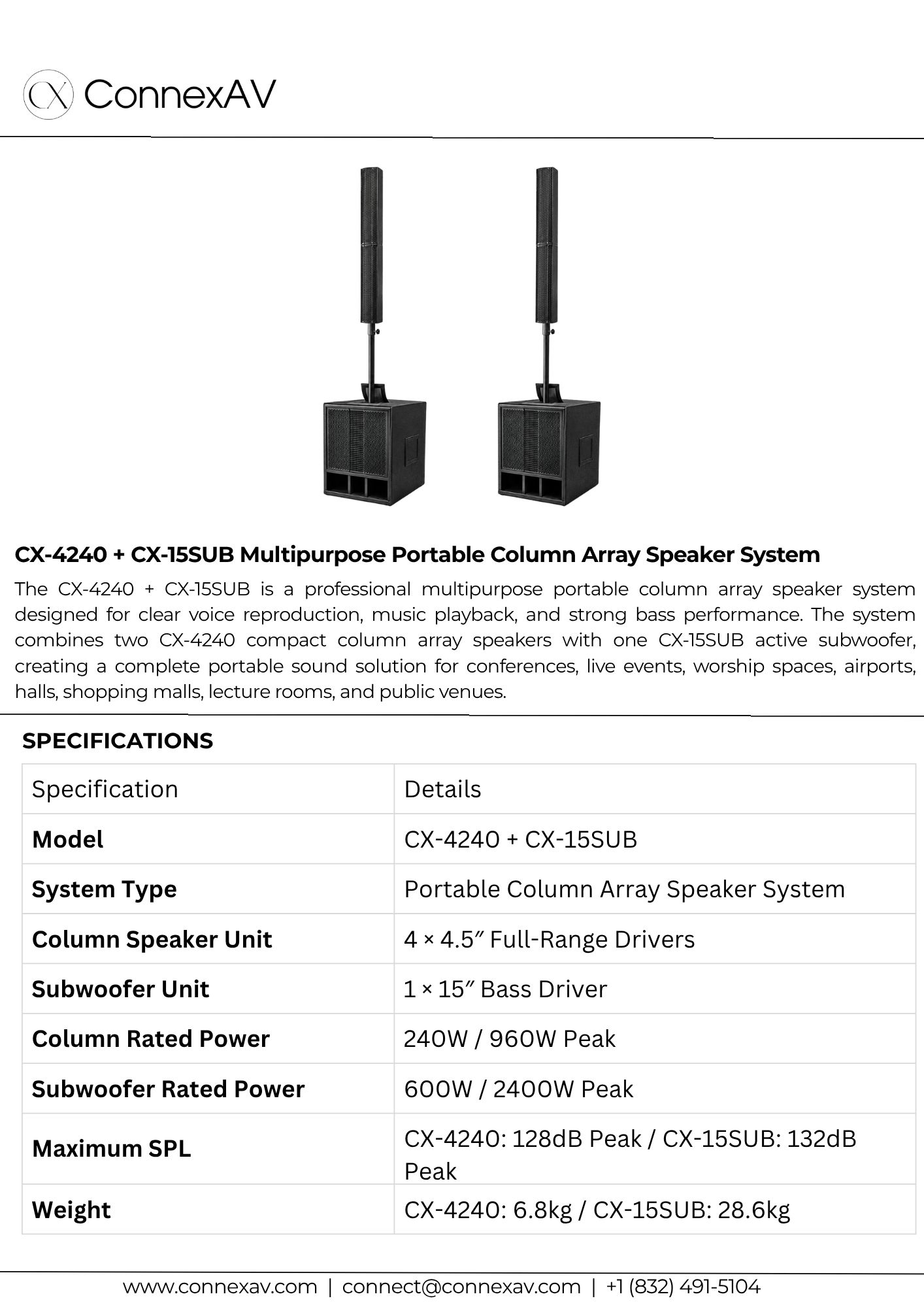

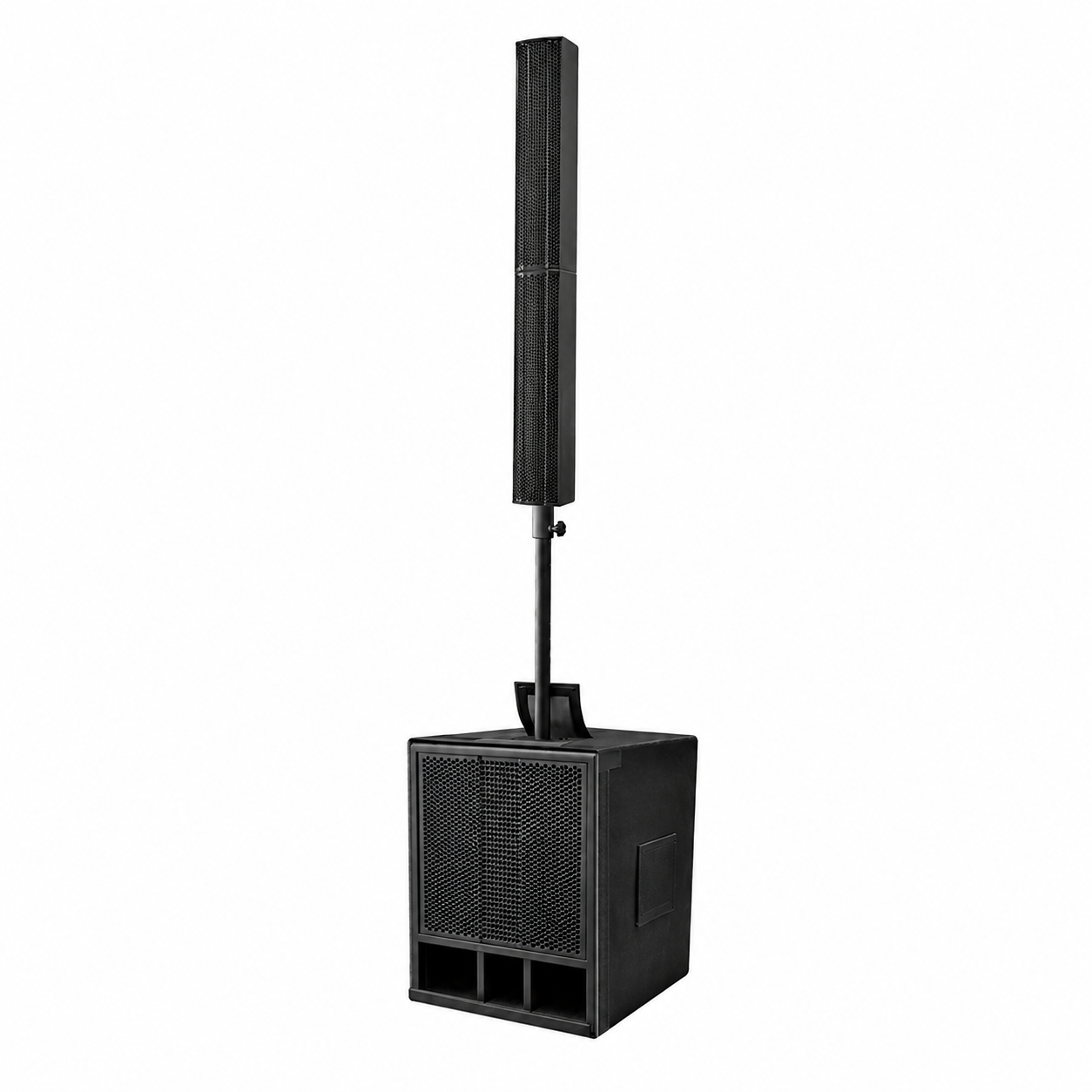

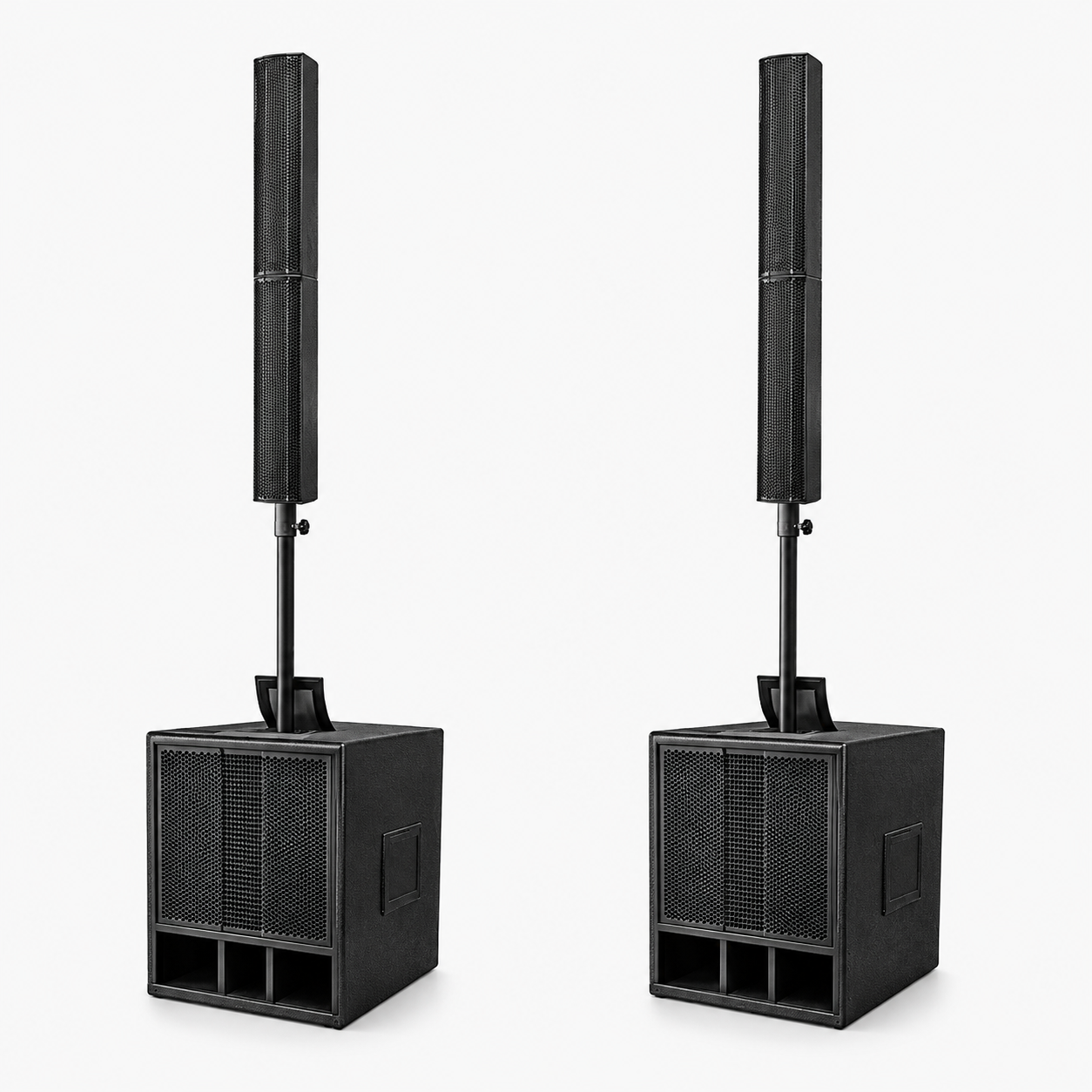

The CX-4240 + CX-15SUB is a professional multipurpose portable column array speaker system designed to deliver clear, powerful, and evenly distributed sound for both indoor and outdoor applications. The system combines two CX-4240 column array speakers with one CX-15SUB active subwoofer, creating a balanced sound reinforcement solution with articulate mid-high frequencies and strong low-frequency performance. The corresponding DSPPA system is specified as LA-4240 + LA-15SUB.

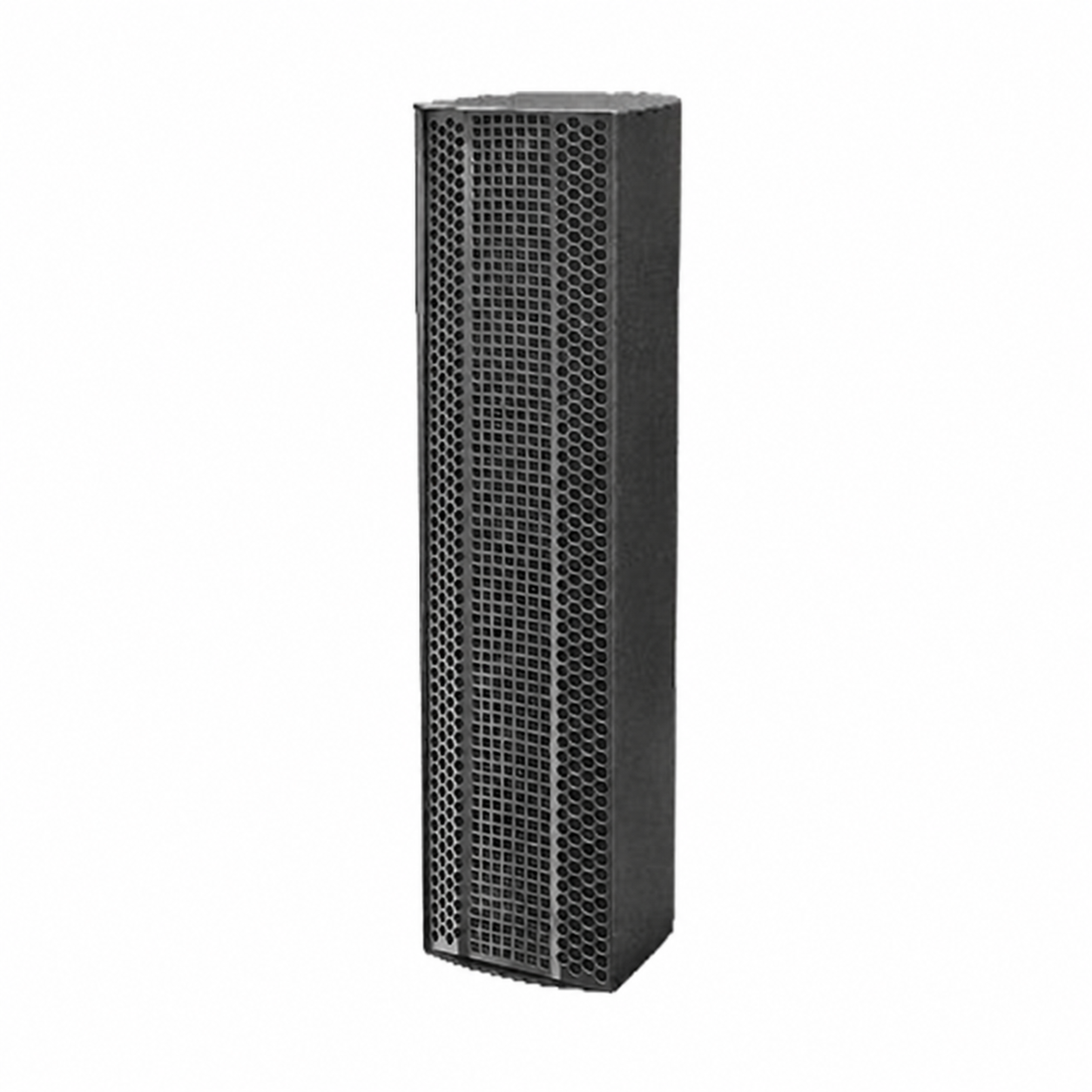

The CX-4240 column speaker uses four 4.5-inch full-range drivers per column, providing clear vocal reproduction and detailed music performance. With 240W AES rated power, 99dB sensitivity, and up to 128dB peak SPL, the columns provide strong projection while maintaining a compact form factor. Their 120° horizontal × 160° vertical nominal directivity provides broad coverage, making the system suitable for speech-focused as well as music applications.

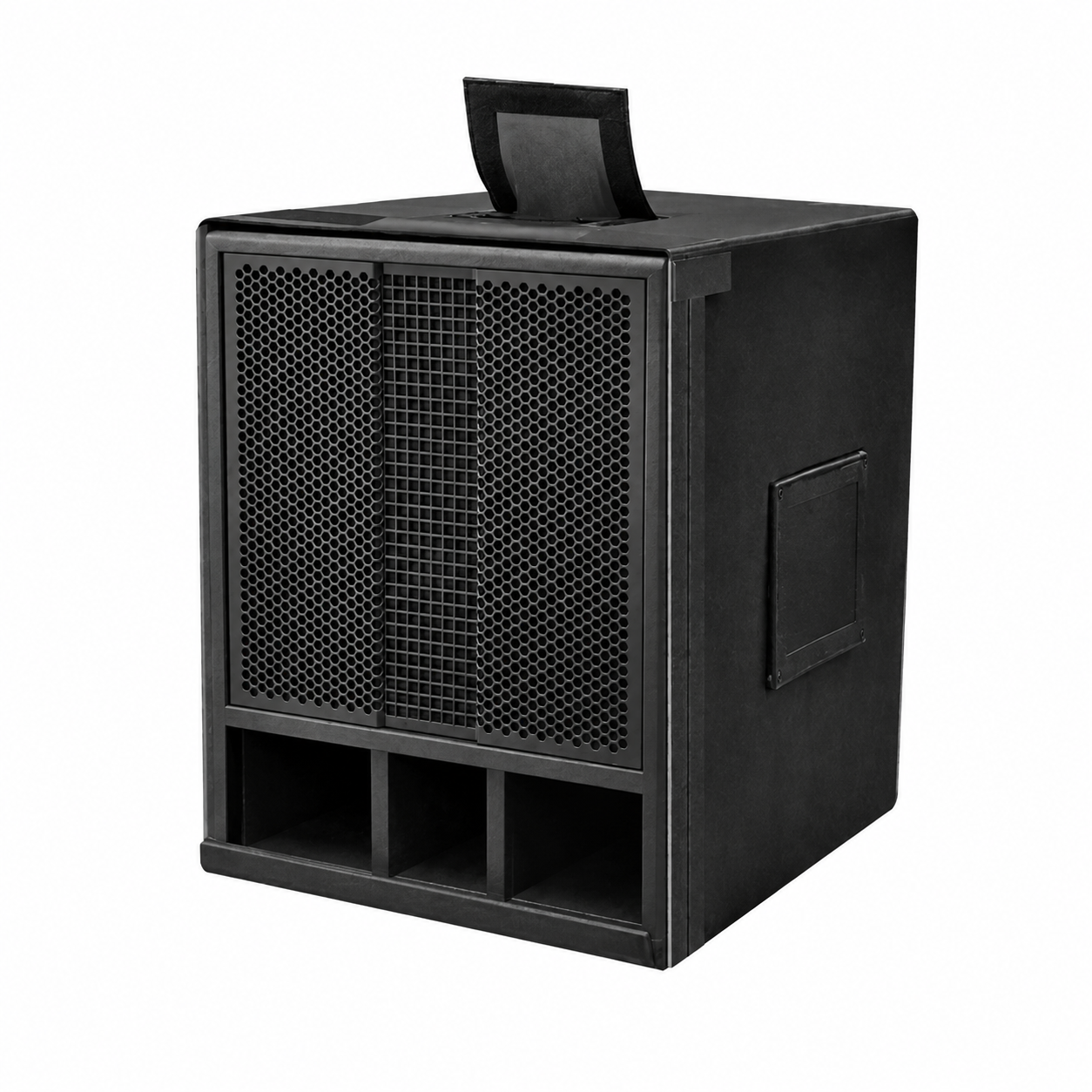

The CX-15SUB is an active 15-inch subwoofer designed to provide the system’s low-frequency foundation. It features a 600W AES rated power and can reach 132dB peak SPL, with a frequency response extending down to 35Hz (-10dB). Its integrated amplifier and DSP module simplify system deployment while providing dedicated processing for optimized system performance.
Specifications
| Specification | Details |
|---|---|
| Model | CX-4240 + CX-15SUB |
| System Type | Portable Column Array Speaker System |
| Column Speaker Unit | 4 × 4.5″ Full-Range Drivers |
| Subwoofer Unit | 1 × 15″ Bass Driver |
| Column Rated Power | 240W / 960W Peak |
| Subwoofer Rated Power | 600W / 2400W Peak |
| Maximum SPL | CX-4240: 128dB Peak / CX-15SUB: 132dB Peak |
| Weight | CX-4240: 6.8kg / CX-15SUB: 28.6kg |
